D. Operation keys and indicator lights (LEDs)
Key Function
13 Hand On
Starts the frequency converter in local control.
•
An external stop signal by control input or
serial communication overrides the local
hand on.
14 O/Reset
Stops the motor but does not remove power
to the frequency converter or resets the
frequency converter manually after a fault has
been cleared. If in alarm mode, the alarm is
reset if the alarm condition is removed.
15 Auto On
Puts the system in remote operational mode.
•
Responds to an external start command by
control terminals or serial communication.
Table 5.4 Legend to Illustration 5.1, Section D
WARNING
ELECTRICAL HAZARD
Even after pressing the [O/Reset] key, voltage is present
at the terminals of the frequency converter. Pressing the
[O/Reset] key does not disconnect the frequency
converter from mains. Touching live parts can result in
death or serious injury.
•
Do not touch any live parts.

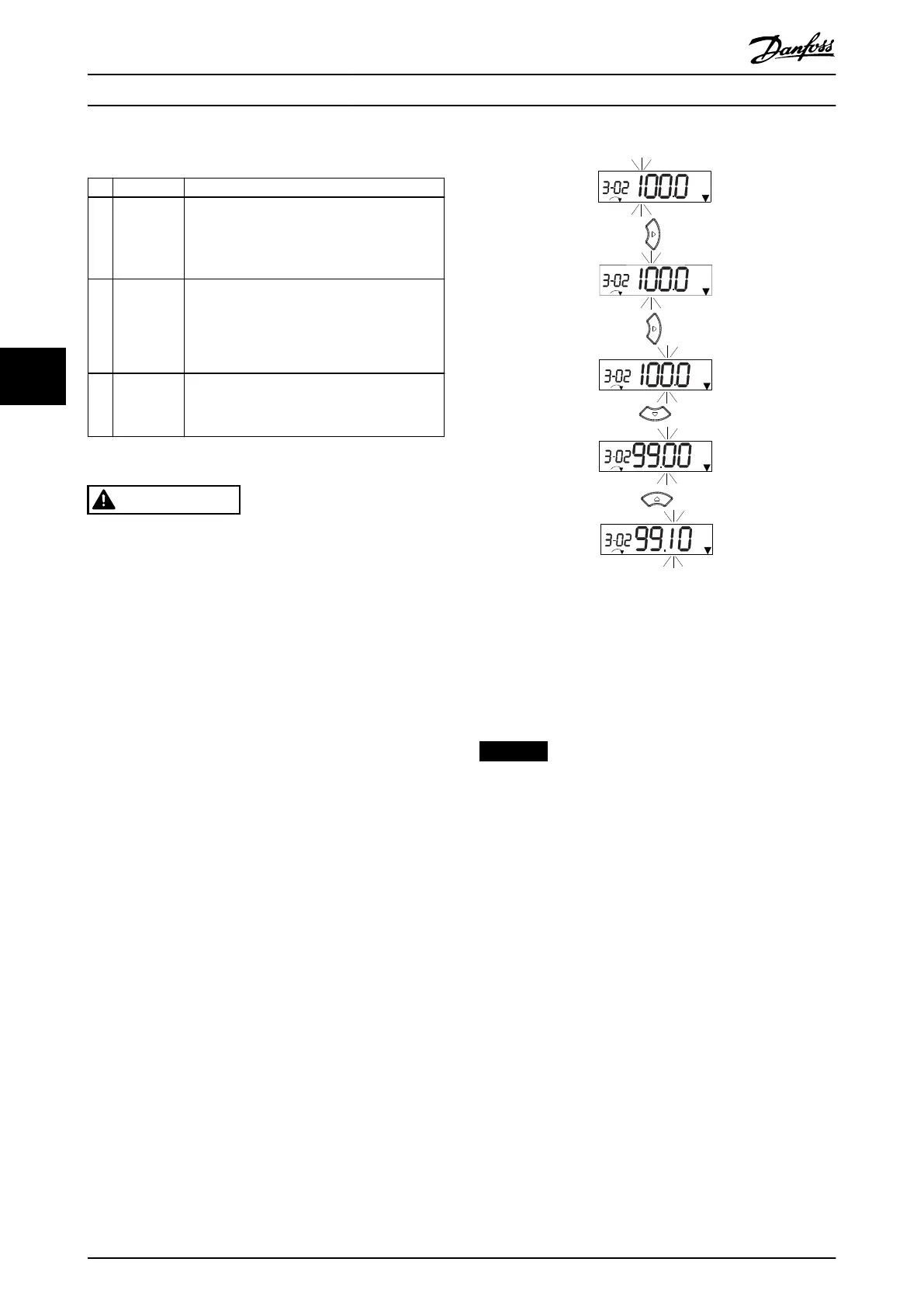

5.3.2 The Right-key Function on NLCP
Press [►] to edit any of the 4 digits on the display
individually. When pressing [►] once, the cursor moves to
the rst digit, and the digit starts ashing as shown in
Illustration 5.3. Press the [
▲
] [
▼
] to change the value.
Pressing [►] does not change the value of the digits, or
move the decimal point.
130BC440.10
Setup 1
Setup 1
Setup 1
Setup 1
Setup 1
Illustration 5.3 Right-key Function
[►] can also be used for moving between parameter
groups. When in Main Menu, press [►] to move to the rst
parameter in the next parameter group (for example, move
from parameter 0-03 Regional Settings [0] International to
parameter 1-00 Conguration Mode [0] Open loop).
NOTICE
During start-up, the LCP shows the message INITIALISING.
When this message is no longer shown, the frequency
converter is ready for operation. Adding or removing
options can extend the duration of start-up.
5.3.3 Quick Menu on NLCP
The Quick Menu gives easy access to the most frequently
used parameters.
1. To enter Quick Menu, press [Menu] until the
indicator in the display is placed above Quick
Menu.
2.
Press [
▲
] [
▼
] to select either QM1 or QM2, then
press [OK].
3.
Press [
▲
] [
▼
] to browse through the parameters in
Quick Menu.
4. Press [OK] to select a parameter.
5.
Press [
▲
] [
▼
] to change the value of a parameter
setting.
6. Press [OK] to accept the change.
Commissioning
VLT
®
Midi Drive FC 280
26 Danfoss A/S © 10/2017 All rights reserved. MG07A402
55
