6.1.3. Relative detection mode

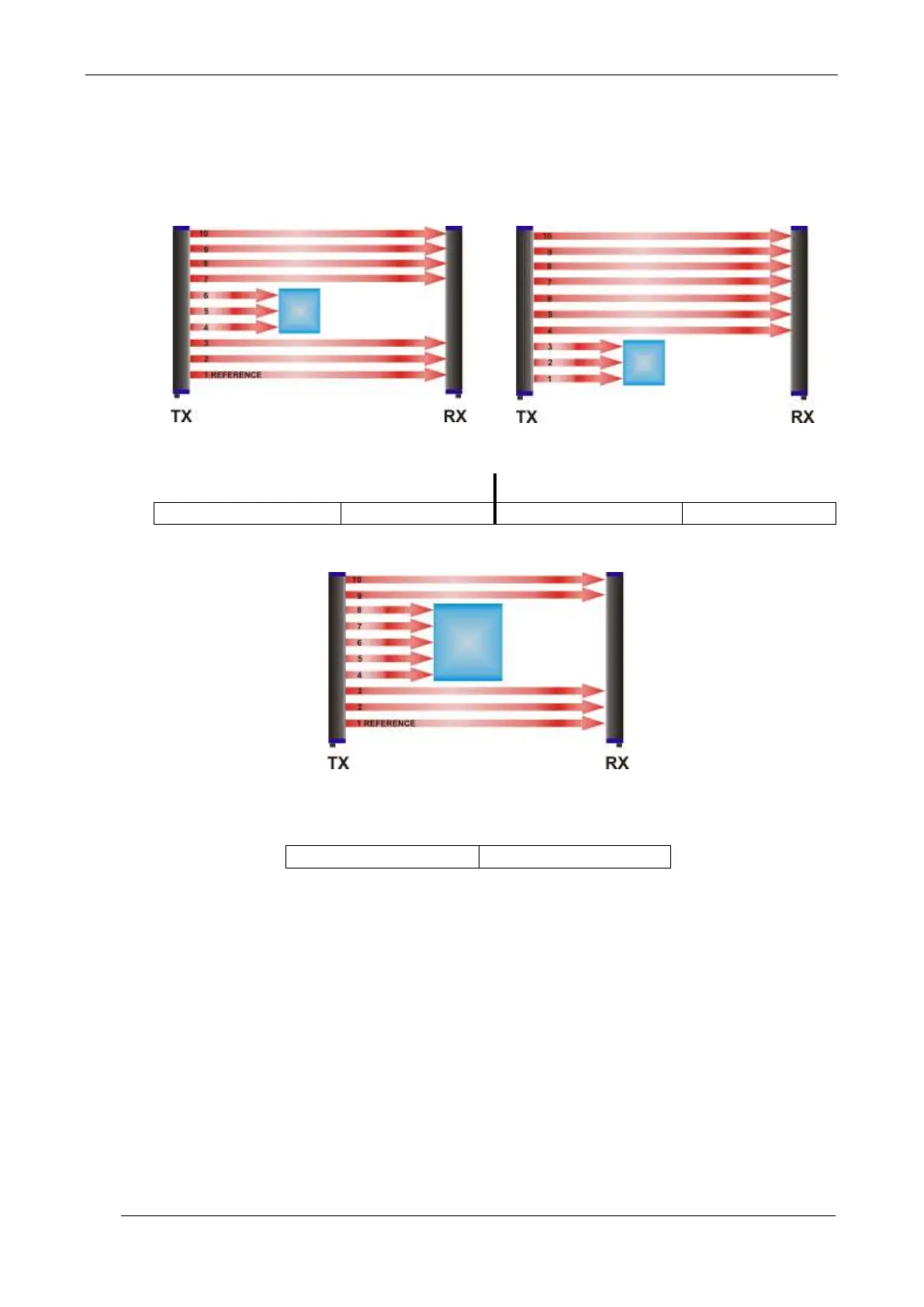

The digital PNP output switches each time the sample object passes through the sensitive area,
independently from its position (see Fig.10).
The analogue output is always active in this configuration and supplies a voltage value according to the
measurement setting.
Analogue output, absolute
measurement (top beam)
Switching
Output
Analogue output, relative
measurement (total beam)
Switching
Output
= 6 V
ON
= 3 V (1,2,3 beams)
ON
Analogue output, relative
measurement (total beam)
Switching
Output
= 5 V (4,5,6,7,8 channels)
OFF
Fig. 10
