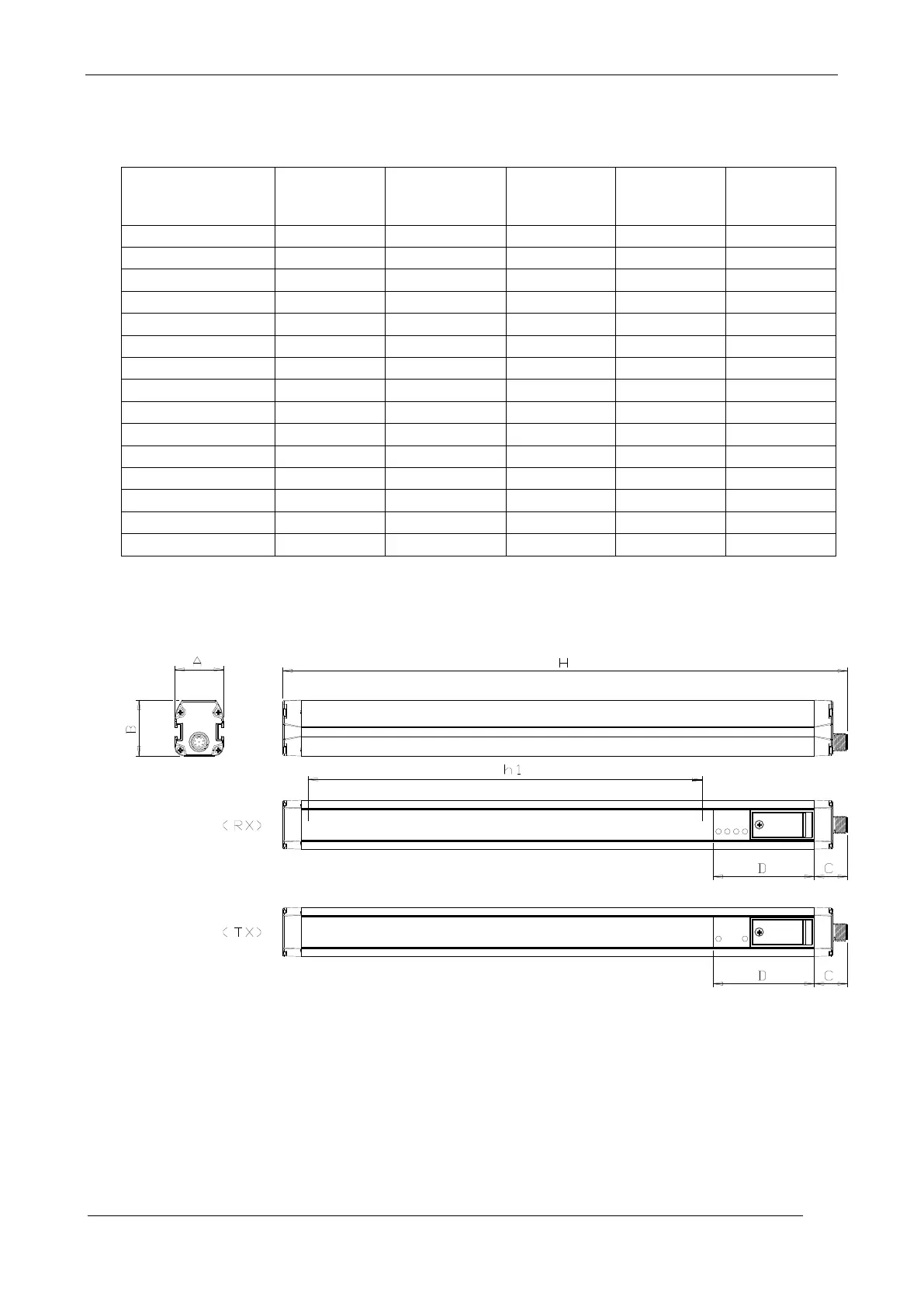

11. LIST OF AVAILABLE MODELS
Model
Optics interaxis
(mm)
h1
Length of
controlled area
(mm)
a x b (mm)
h (mm)
N°.
beams
DS2-05-07-015-JV
6.75
147
35 x 40
256
21
DS2-05-07-030-JV
6.75
294
35 x 40
403
42
DS2-05-07-045-JV
6.75
441
35 x 40
550
63
DS2-05-07-060-JV
6.75
588
35 x 40
697
84
DS2-05-07-075-JV
6.75
735
35 x 40
844
105
DS2-05-07-090-JV
6.75
882
35 x 40
991
126
DS2-05-07-105-JV
6.75
1029
35 x 40
1138
147
DS2-05-07-120-JV
6.75
1176
35 x 40
1285
168
DS2-05-07-135-JV
6.75
1323
35 x 40
1432
189
DS2-05-07-150-JV
6.75
1470
35 x 40
1579
210
DS2-05-07-165-JV
6.75
1617
35 x 40
1726
231
DS2-05-25-045-JV
25
453
35 x 40
562
18
DS2-05-25-060-JV
25
604
35 x 40
713
24
DS2-05-25-075-JV
25
755
35 x 40
864
30
DS2-05-25-090-JV
25
912
35 x 40
1015
36
12. OVERALL DIMENSIONS
All the values are in mm.
