SOFTWARE CONFIGURATION
18 STS320
BACKUP PROCEDURE USING CBX500 HMI INTERFACE

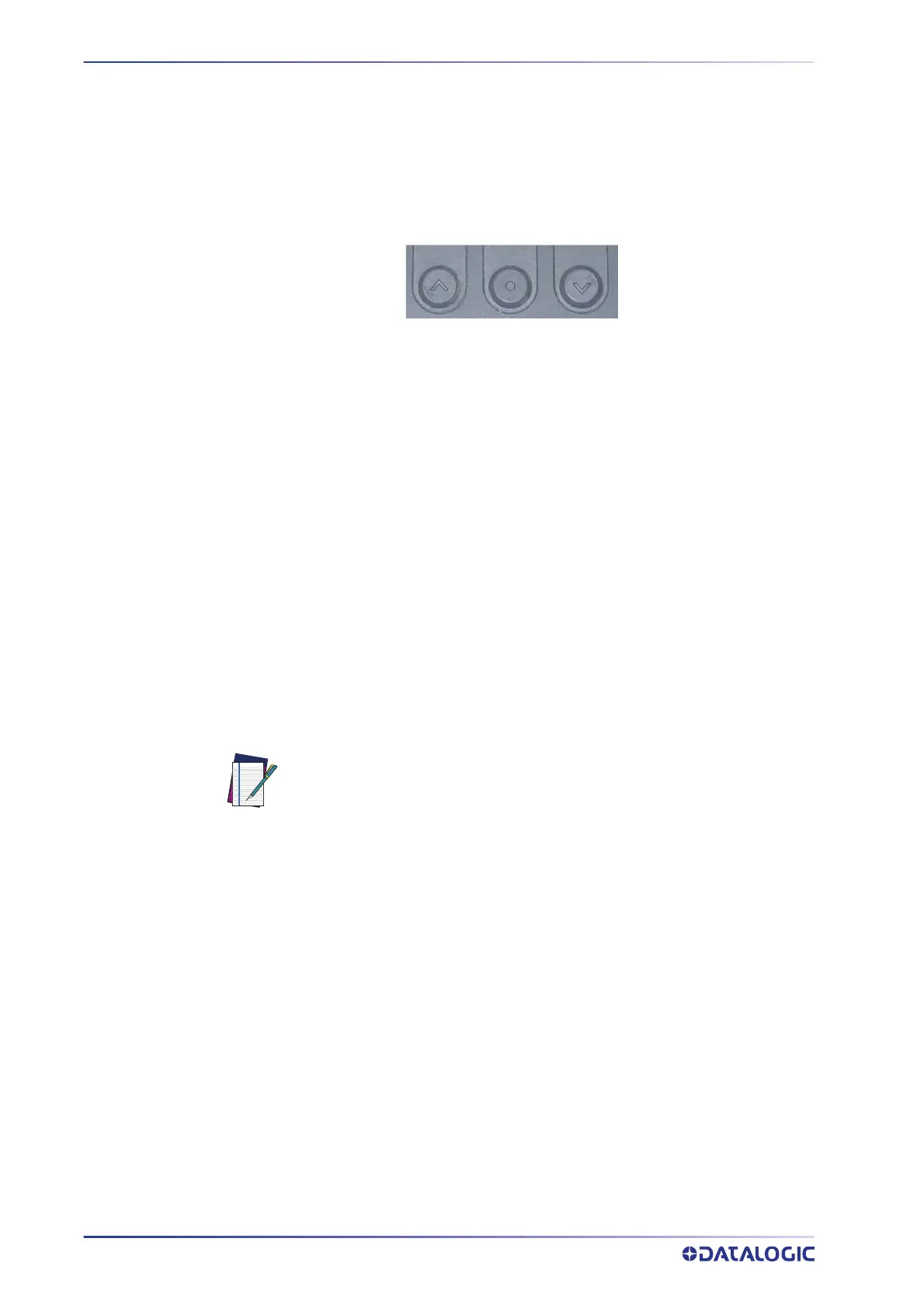

Keypad and Display
The CBX500 display can be used with the three buttons below it. The up arrow button
allows you to scroll up through the menu. The down arrow button allows you to scroll
down through the menu. With the middle button, you can confirm your selection:
To access the menu, press the two outermost buttons simultaneously for several sec-
onds. The
menu structure is shown below.
Menu: [Exit]
(exits HMI Interface menu)
Test Mode
Focus/Locate
Calibration
Code Setting
View
Extended (e
nters Extended menu)
Extended: [Exit] (
returns to Main menu)
Backup
Yes
(performs Backup - uninterruptible)
No (r
eturns to Extended menu)
Restore
Yes
(performs Restore - uninterruptible)
No (r
eturns to Extended menu)
NOTE
Backup procedure
1. Make sure the Write Protection switch (inside the CBX500) on the BM100 is
unlocked.
2. Select the Backup item from the Extended menu and press the Enter key on the
Ye
s item.
3. When the procedure is complete a message appears on the display showing the
r
esults (Done or Error).
4. Set the Write Protection switch to locked.
After performing the Backup installation is completed. You can check the station perfor-
mance using the Web Monitor.
NEVER select the “Focus/Locate” or “Calibration” items.
