DeDietrich Diematic iSystem User Manual

5 Commissioning

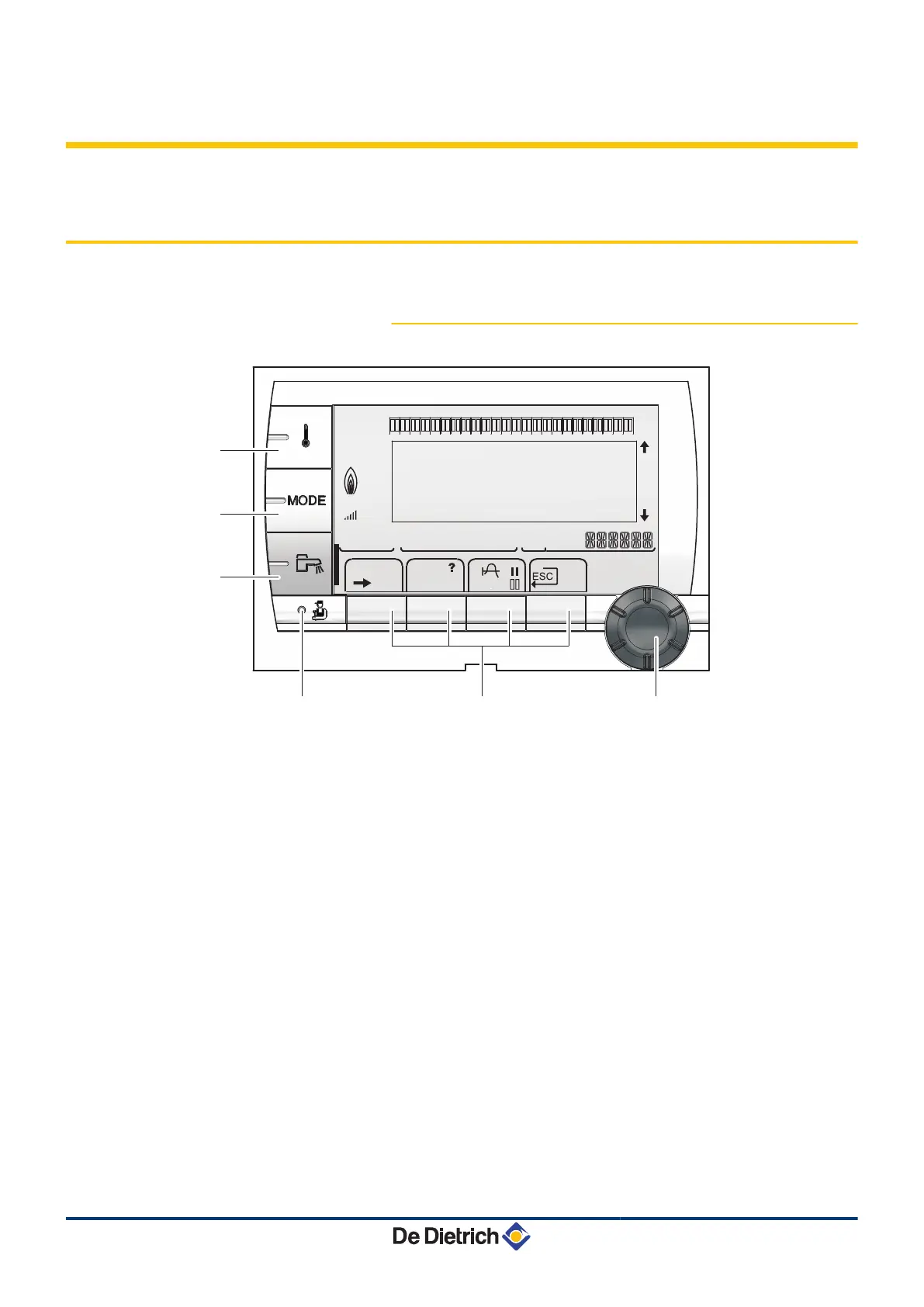

5.1 Control panel
5.1.1. Description of the keys
A
Temperature setting key (heating, DHW, swimming pool)
B
Operating mode selection key
C
DHW override key
D
Key to access the parameters reserved for the installer
E
Keys on which the function varies as and when selections
are made
F
Rotary setting button:
4 Turn the rotary button to scroll through the menus or
modify a value
4 Press the rotary button to access the selected menu
or confirm a value modification
A000866-A
bar
STD
t
0 2 4 6 8 10 12 14 16 18 22 2420
p
b
AUTO
x
c
r
j
M
g
m
A
B
C
D
E
F
(
'
Diematic iSystem For C 330 / C 630 ECO 5. Commissioning
31082018 - 7600691-001-06
26

DeDietrich Diematic iSystem Specifications

General

Brand	DeDietrich
Model	Diematic iSystem
Category	Control Panel
Language	English
