5.3.3. Naming the circuits and generators

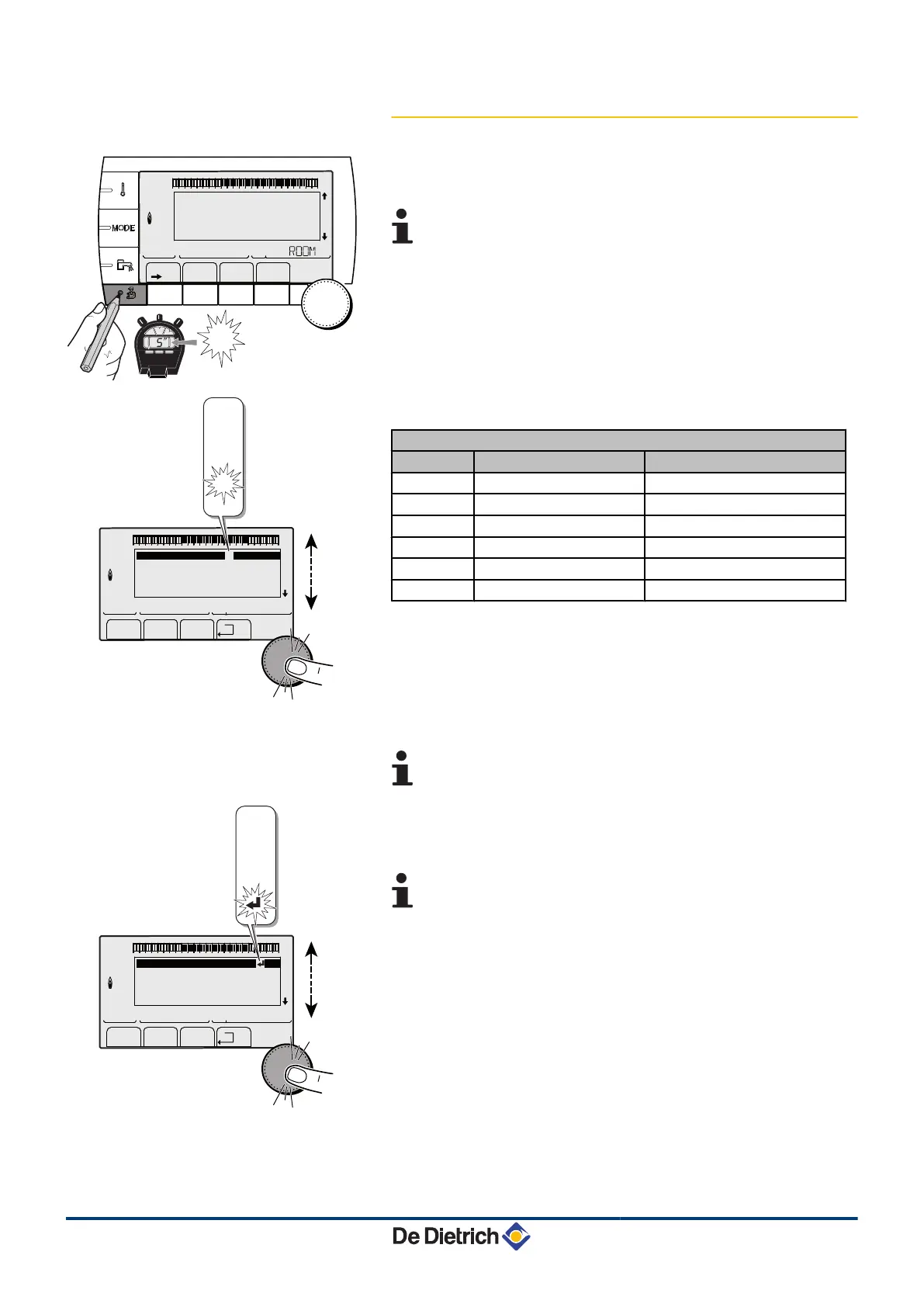

1. Access the installer level: Press key
-
for around 5 seconds.
2. Select the menu #NAMES OF THE CIRCUITS.
4 Turn the rotary button to scroll through the menus or
modify a value.
4 Press the rotary button to access the selected menu
or confirm a value modification.
¼
For a detailed explanation of menu browsing, refer to
the chapter: "Browsing in the menus", page 31
3. Select the circuit or generator you wish to rename.
Installer level - #NAMES OF THE CIRCUITS Menu
Parameter Description Name given by the customer
CIRC.A
Circuit A
CIRC.B
Circuit B
CIRC.C
Circuit C
CIRC.AUX
Auxiliary circuit
CIRC.DHW
Domestic hot water circuit
GENE
Generator
4. Turn the rotary button to choose the first character from the list.
To confirm, press the rotary button.
5. Then press again to enter a second character or turn the rotary
button to leave an empty space.
6. Choose the other characters in the same way. The input zone may
contain up to 6 characters.
To move from one character to another, turn the rotary
button. To exit without modifications, press key
h
.
7. To confirm the name, press the rotary button and then turn the
button slightly anti-clockwise. When the symbol
U
appears, press
the rotary button. The name is confirmed.
If the name reaches 6 characters, it is automatically
confirmed when the last character is confirmed.
1
1
2
2
r
c
STD
(
'
t
v
0 2 4 6 8 10 12 14 16 18 22 2420
p
b
AUTO
x
c
r
j
M
g
m
SUNDAY 11:45
5
"
TEMP.: 68°
C002235-F-04
bar
1
1
2
2
r
c
STD
(
'
t
v
0 2 4 6 8 10 12 14 16 18 22 2420
p
b
AUTO
x
c
r
j
L
g
m
CIRC.B I
"Personalize the nameof this circuit B"
a
E
F
G
H
.
.
.
C002344-E-04
I
bar
1
1
2
2
r
c
STD
(
'
t
v
0 2 4 6 8 10 12 14 16 18 22 2420
p
b
AUTO
x
c
r
j
L
g
m
CIRC.B FLOOR1
"Personalize the nameof this circuit B"
a
X
Y
Z
.
.
.
C002345-D-04
Diematic iSystem For C 330 / C 630 ECO 5. Commissioning
31082018 - 7600691-001-06
