Dell EMC S5200F-ON Series User Manual

One-half U front-rack installation
Install the S5212F-ON switch using the following installation instructions.
NOTE: To install the S5232F-ON, S5248F-ON, or S5224F-ON switch, see One U
ReadyRails installation. To install the S5296F-ON switch, see Two U four-post rack
assembly.
The dual-tray mounting rails ship with the dual tray, not with the switch. You must supply
eight rackmount screws for this installation.
To install the one-half U switch:
• Attach the rails to the dual tray.
• Install the dual tray in the four-post rack.
• (Recommended) Attach the ground cable to the switch.
• Install the switch in the dual tray.
NOTE: Do not install the dual tray in a two-post rack.
1 Remove the dual tray and the rails from the shipping packaging and place them on a
clean antistatic surface.
2 Line up the three holes on the inner switch rail with the dual-tray mounting heads.

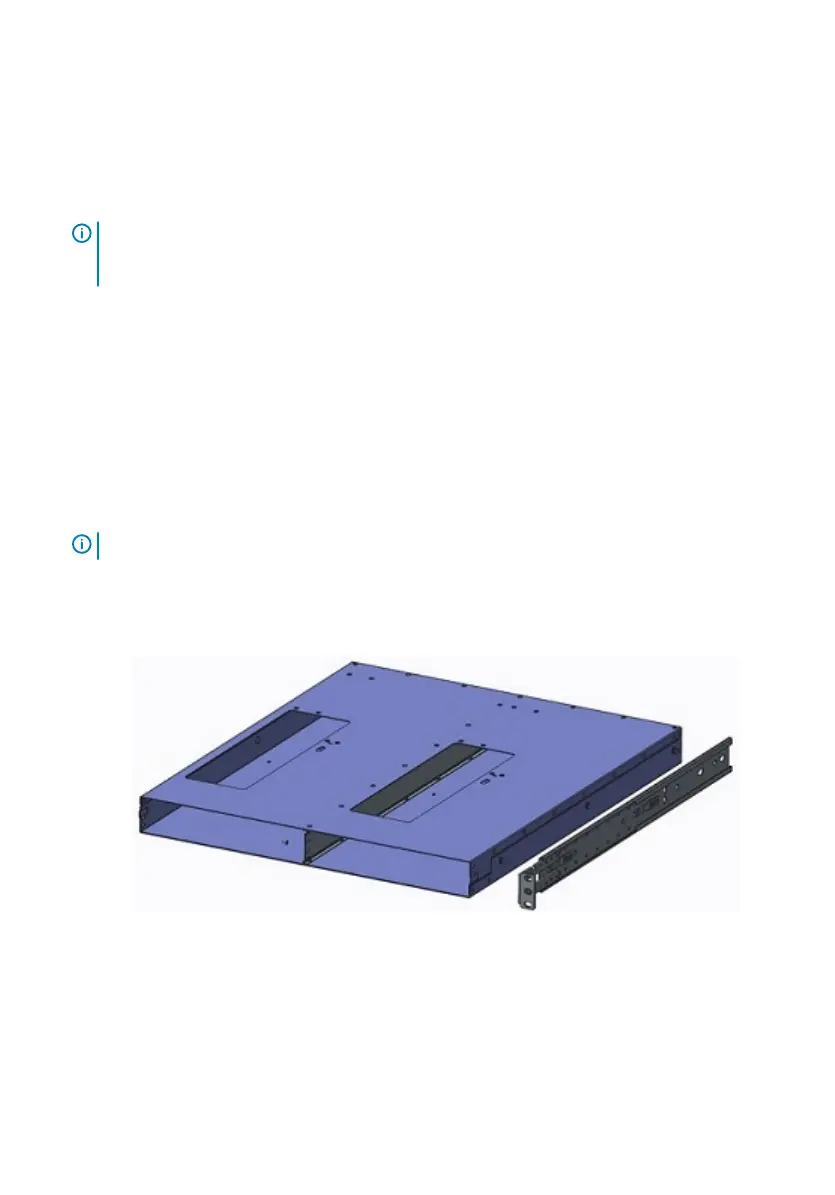

Figure 2. Dual-tray and rack mounting rail
3 Attach the rail to the dual tray. Slide the rail back until it locks into place.
4 Repeat with the other side.
S5200F-ON Series switch Installation
15
