Dell EMC S5200F-ON Series User Manual

DC power connections
NOTE: Use the following instructions for all S5200F-ON Series switches except for
the S5212F-ON switch. To connect DC power to the S5212F-ON switch, see
S5212F-ON only DC power connections.
Each DC powered system comes with a set containing a prewired (3-inch 8AWG) power
supply connector and a four-screw wiring block. One set is provided for each DC PSU.

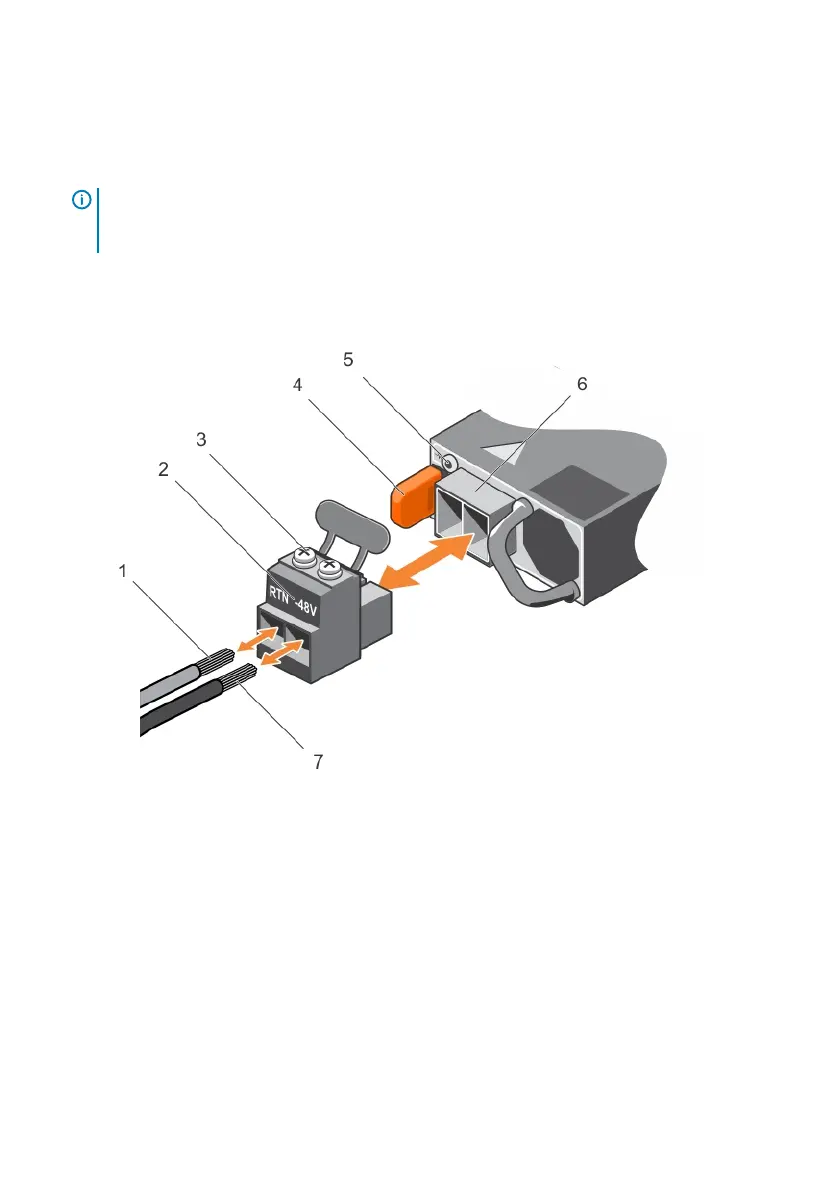

Figure 19. DC Power Connector and Wiring Block
1
DC wire RTN 2 DC power connector
3 Captive screws (2) 4 Orange tab
5 PSU status LED 6 DC power socket
7 DC wire –48V
S5200F-ON Series switch Installation 33
