One-half U switch removal
Remove the S5212F-ON switch from the dual tray from the front of the four-post rack.
NOTE: To remove the S5232F-ON, S5248F-ON, or S5224F-ON switch, see One U
ReadyRails installation. To remove the S5296F-ON switch, see Two U four-post
rack assembly.

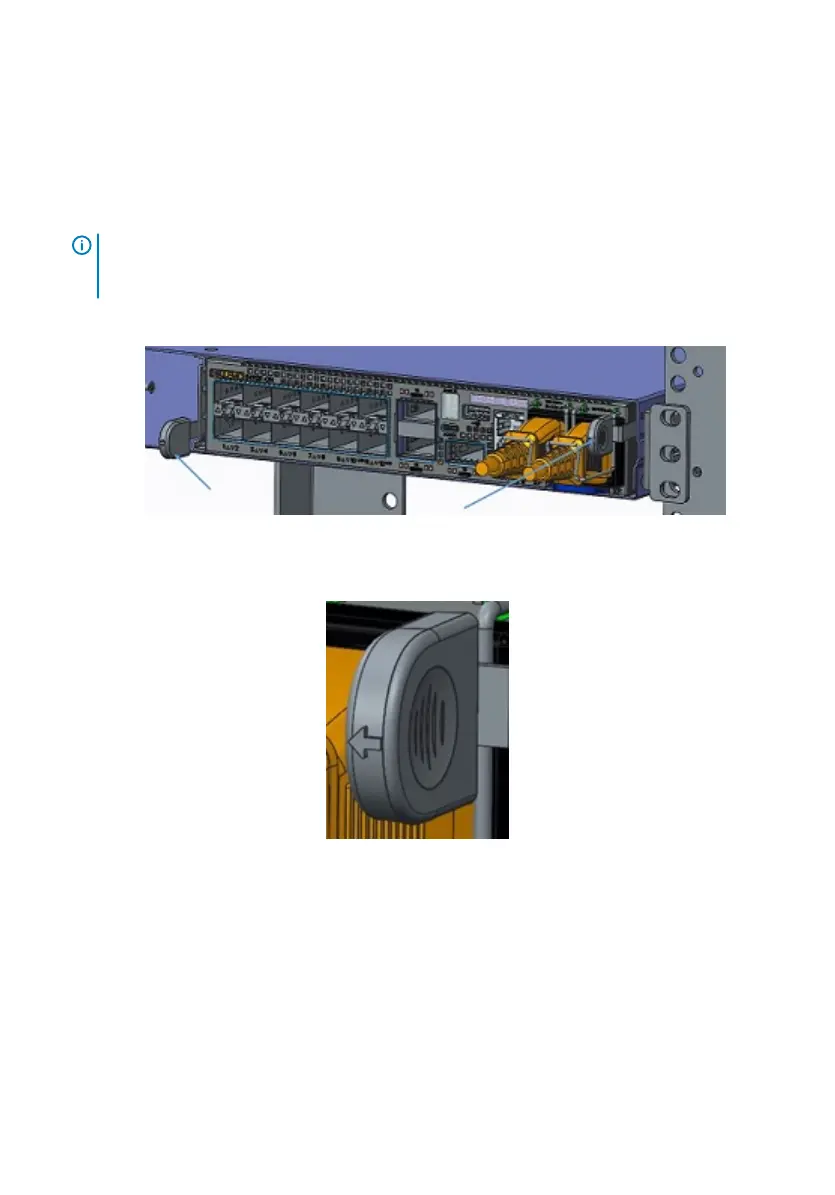

Push in the front switch latches according to the latch arrows and pull out the switch.
Figure 9. Switch release latches
Figure 10. Switch release arrow
One U ReadyRails installation
For the S5248F-ON, S5232F-ON, and S5224F-ON switches, you can install the ReadyRails
system using the 1U tool-less square-hole method or one of three possible 1U threaded
S5200F-ON Series switch Installation
19
