Repair information 4-47
Media ACM ASM feeder removal
1. Remove the left side cover. See “Left side cover removal” on page 4-33.
2. Remove the LVPS/HVPS. See “LVPS/HVPS removal” on page 4-37.
3. Remove the duplex. See “Duplex removal” on page 4-19.
4. Remove the main motor gear drive. See “Main motor gear drive removal” on page 4-40.
5. Remove the media feed clutch. See “Media feed clutch with cable removal” on page 4-50.

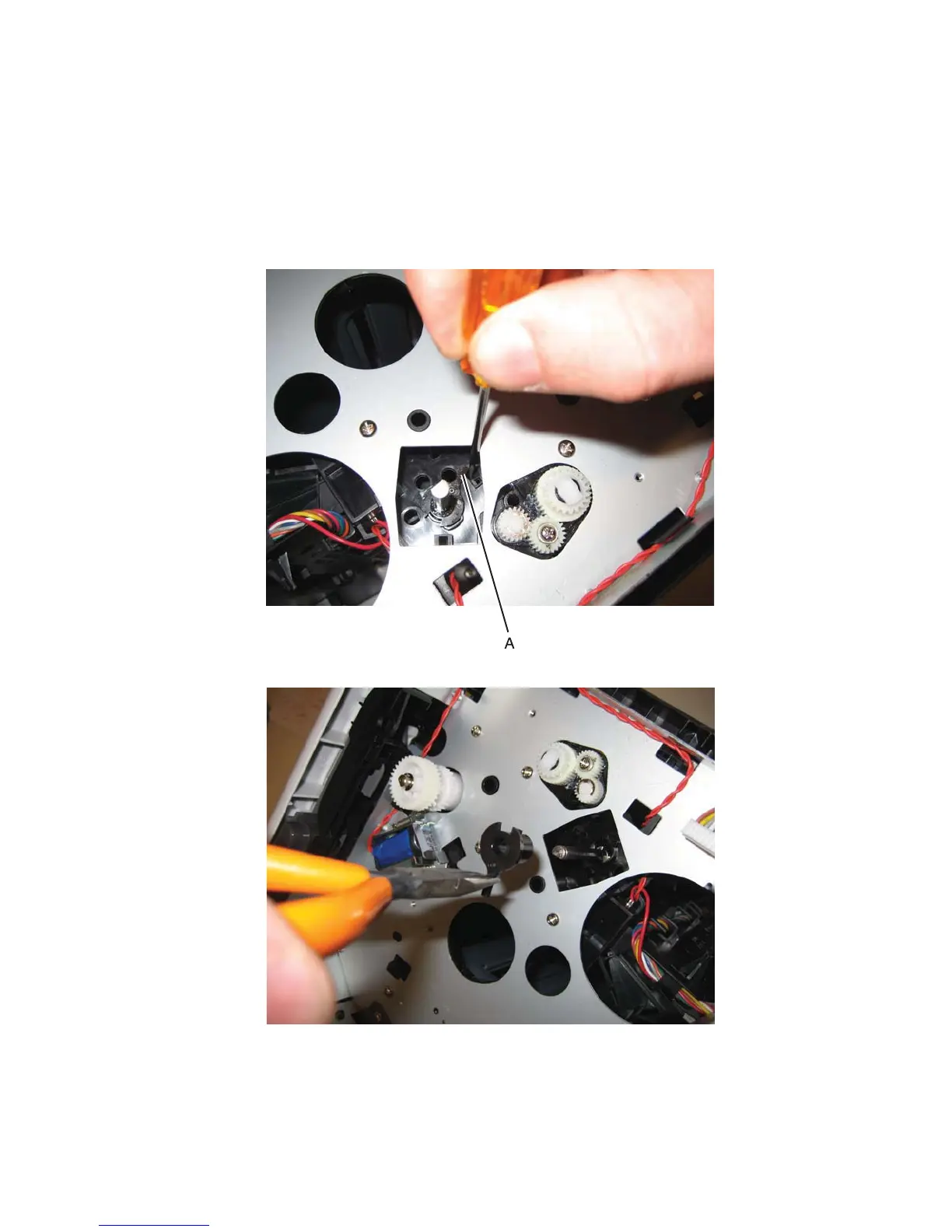

6. Use a screwdriver to pop the shaft retainer tab (A) loose from the ACM feed shaft.
7. Use a small pair of pliers to remove the shaft retainer tab.
