Replacing the display assembly
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Identifier GUID-C139CA56-4144-4D70-91C4-DB20FFDD1213
Status Released
Procedure
NOTE
: Ensure that the hinges are opened to the maximum before replacing the display assembly on palm rest and keyboard
assembly.

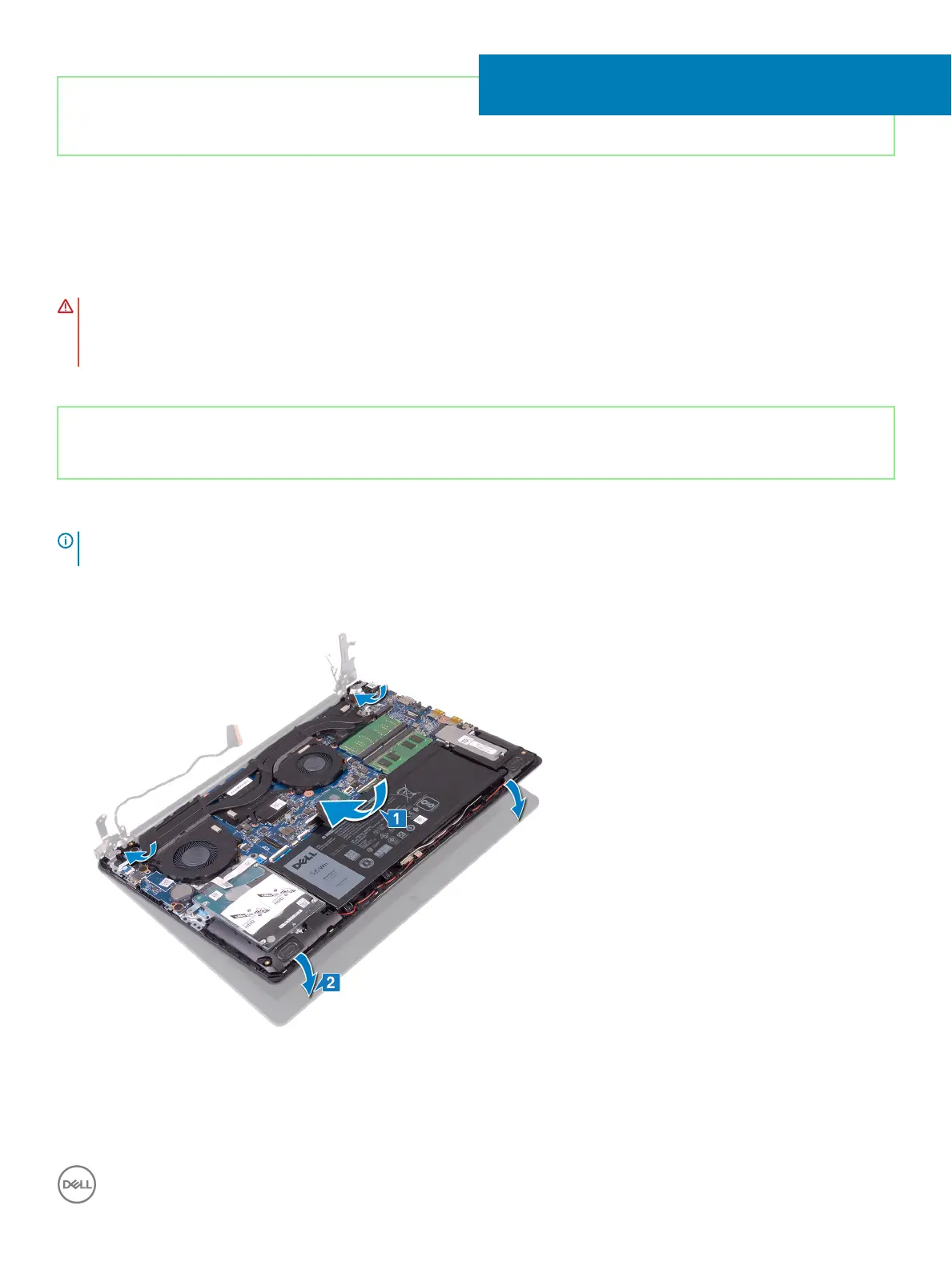

1 Slide the palm rest and keyboard assembly at an angle under the hinges on the display assembly.
2 Place the palm rest and keyboard assembly on the display assembly.
3 Using the alignment posts, press the hinges down on the system board and the palm rest and keyboard assembly.
30
Replacing the display assembly 63
