Replacing the system board
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
NOTE: Your computer’s Service Tag is stored in the system board. You must enter the Service Tag in the BIOS setup program
after you replace the system board.
NOTE: Replacing the system board removes any changes you have made to the BIOS using the BIOS setup program. You must
make the appropriate changes again after you replace the system board.
Identifier GUID-9CB2E97D-04D5-41DA-9AB0-41B04C52410E
Status Released
Procedure

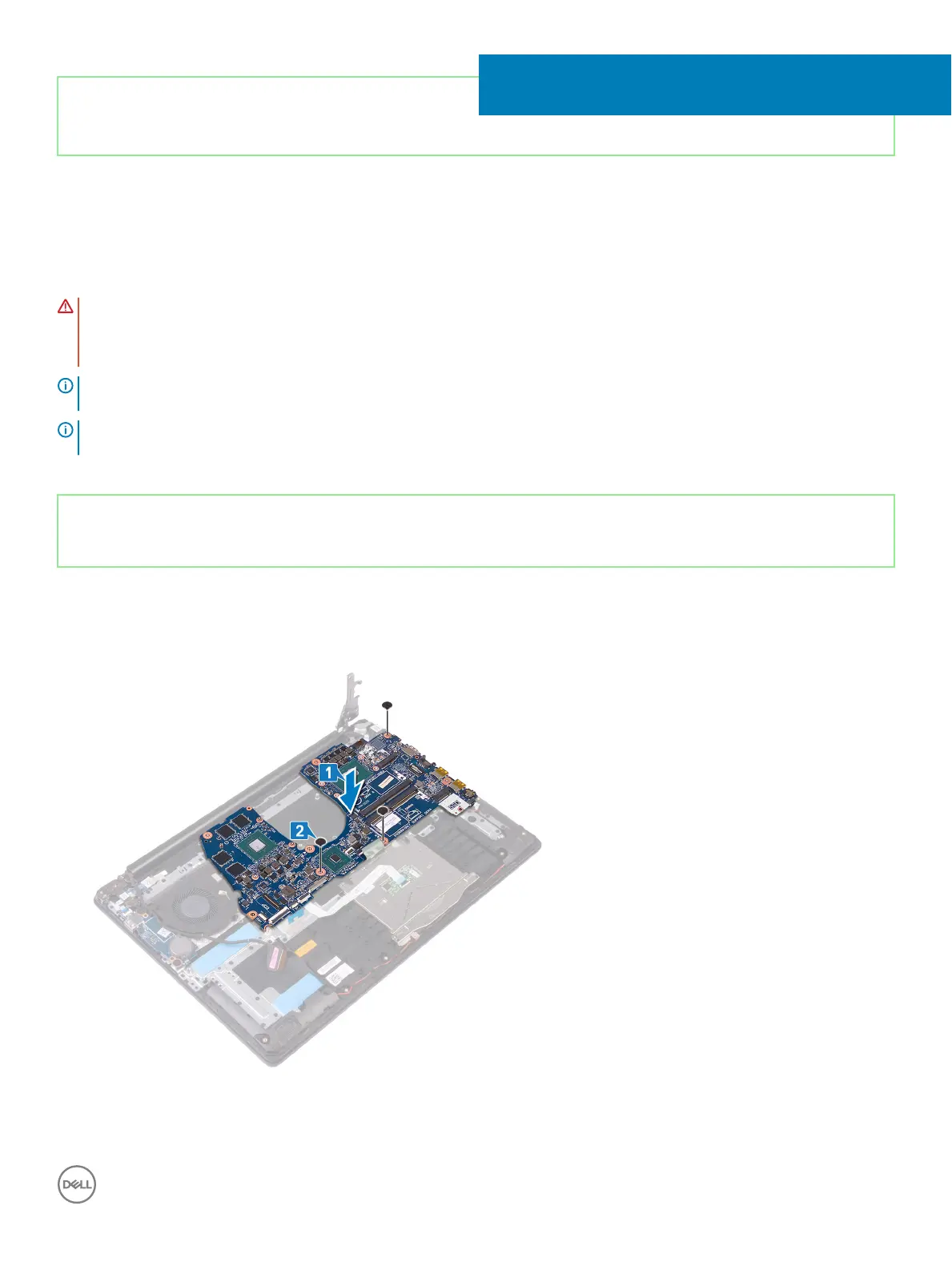

1 Align the screw hole on the system board with the screw hole on the palm rest and keyboard assembly.
2 Replace the three screws (M2.5x2.5) that secure the system board to the palm rest and keyboard assembly.
3 Connect the power-adapter port cable.
4 Connect the speaker cable.
5 Close the latch and disconnect the keyboard cable.
