Removing the power-button board
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Identifier GUID-4676A113-655C-485B-92B7-D5464610812F
Status Released
Prerequisites
Remove the base cover.
Identifier GUID-DF89C161-5997-4629-B78C-F2388A2980A6
Status Released
Procedure

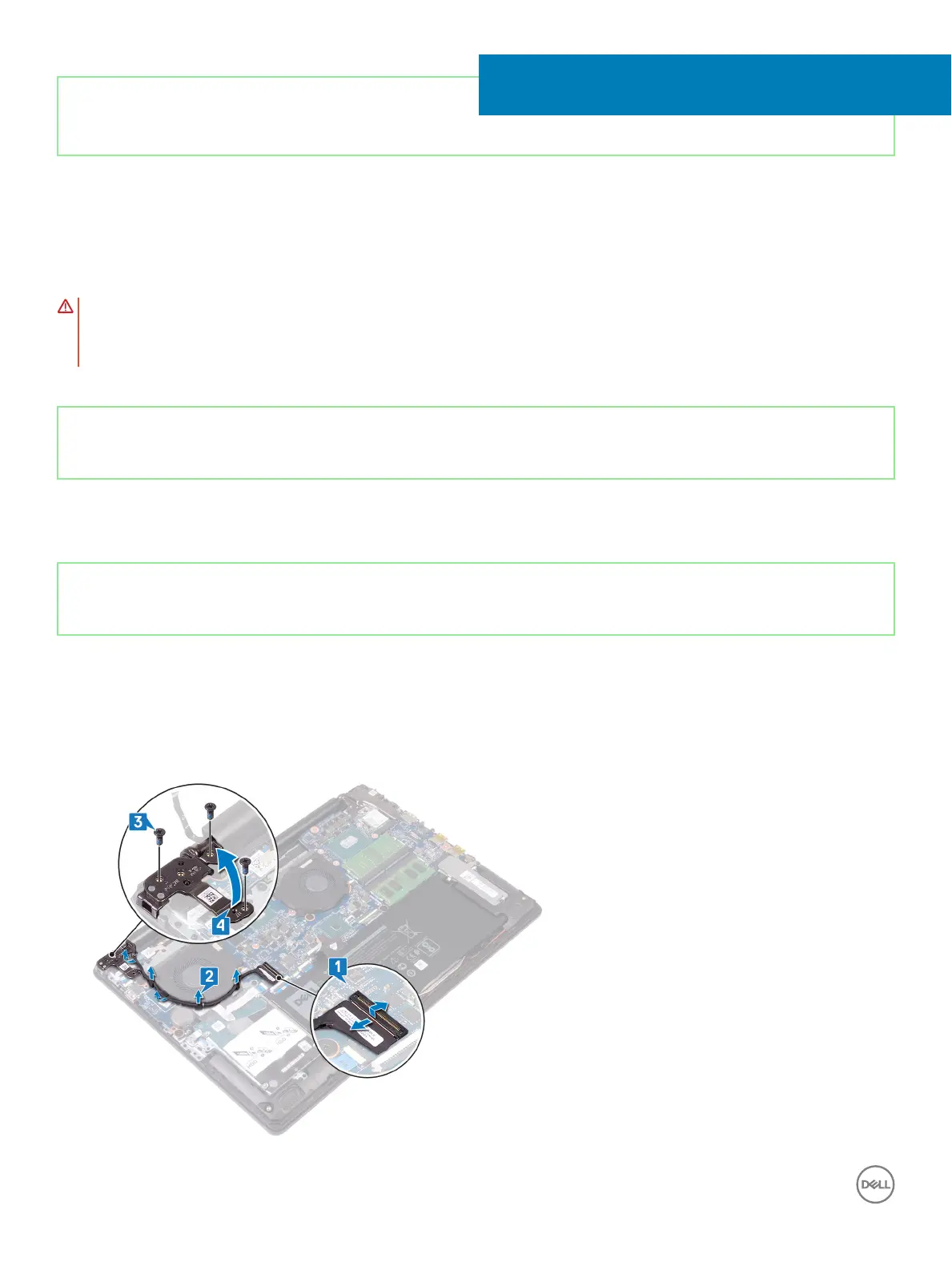

1 Open the latch and disconnect the display-assembly cable from the system board.
2 Note the routing of the display cable and remove the cable from its routing guides on the fan and palm rest and keyboard assembly.
3 Remove the three screws (M2.5x6) that secure the left hinge to palm rest and keyboard assembly.
4 Open the left hinge.
