Dell Inspiron 9400 User Manual


Removing the Display Bezel


1. Follow the instructions in Before Working Inside Your Computer.

2. Remove the display assembly (see Removing the Display Assembly).

3. Remove the six rubber screw-covers/display bumpers.

4. Remove the two screw covers and the four shoulder screws.

5. Remove the four M2.5 x 5-mm screws at the corners of the bezel.


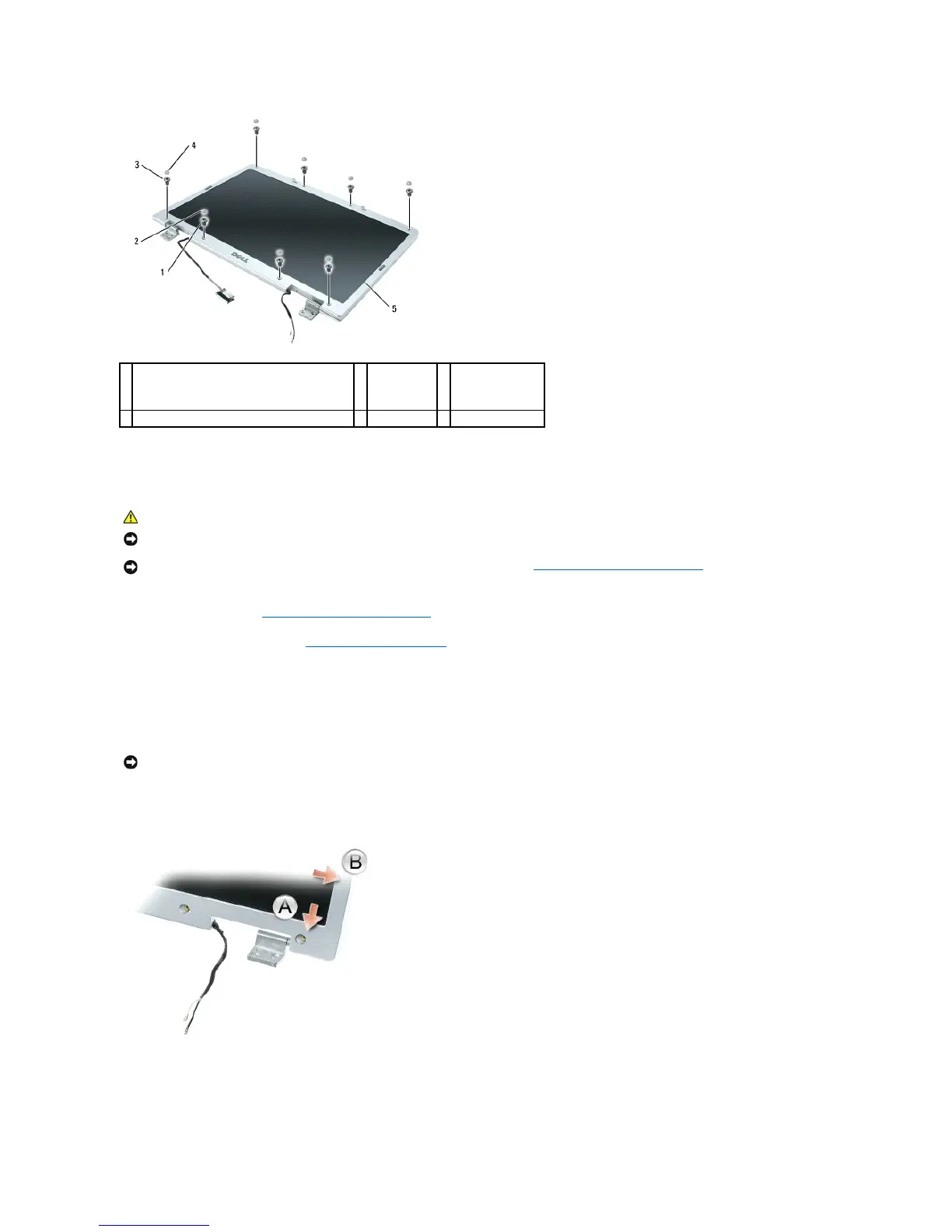

6. Use your fingers to separate the bezel from the display back cover by pulling the lower-right corner of the bezel down toward the bottom edge (A) of
the display assembly to clear the tab on the bottom of the lower-right corner. Then pull the bezel toward the right side of the display assembly to clear
the tab on the side (B) of the lower-right corner.
1
shoulder screws (4, two at the top and two at
the bottom)
2
screw covers
(2)
3
M2.5 x 5-mm
screws
(4, one on each
corner)
4
rubber screw-covers/display bumpers (6)
5
display bezel


CAUTION: Before you begin the following procedure, see the safety instructions in the Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE: To help prevent damage to the system board, remove the main battery (see Before Working Inside Your Computer) before working inside the
computer.
NOTICE: Removal of the bezel from the display back cover requires extreme care to avoid damage to the bezel.
