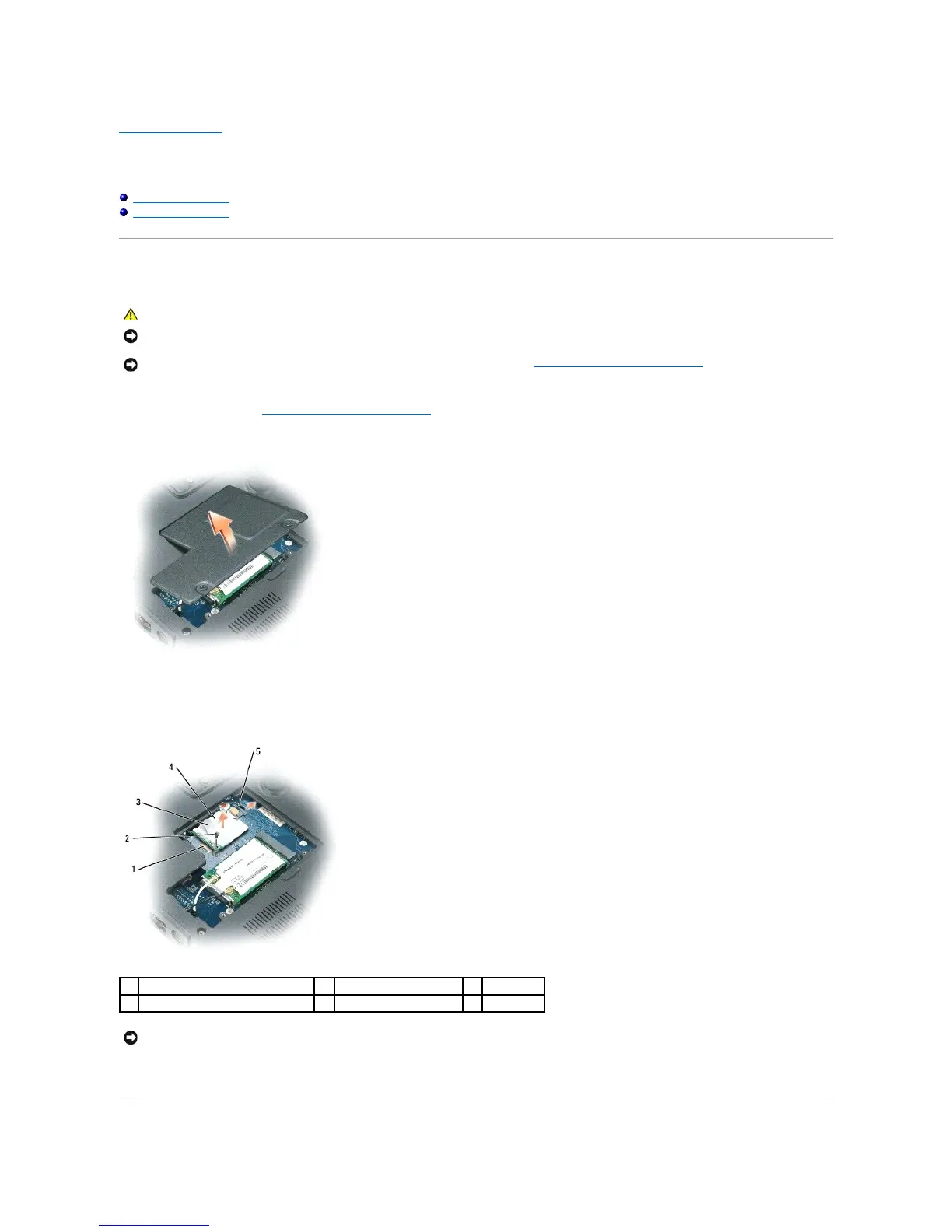

Removing the Modem
Replacing the Modem
Removing the Modem


1. Follow the instructions in Before Working Inside Your Computer.

2. Turn the computer upside down, loosen the two captive screws on the modem cover, and remove the cover from the computer.

3. Remove the M2 x 3-mm screw that attaches the modem to the system board.

4. Pull up on the pull-tab to disconnect the modem from the connector on the system board.

5. Disconnect the modem cable from the modem.
CAUTION: Before you begin the following procedure, see the safety instructions in the Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE: To help prevent damage to the system board, remove the main battery (see Before Working Inside Your Computer) before working inside the
computer.
1
system board connector
2
M2 x 3-mm screw
3
pull-tab
4
modem
5
modem cable


NOTICE: Do not disconnect the modem cable from the system board.
