Back to Contents Page

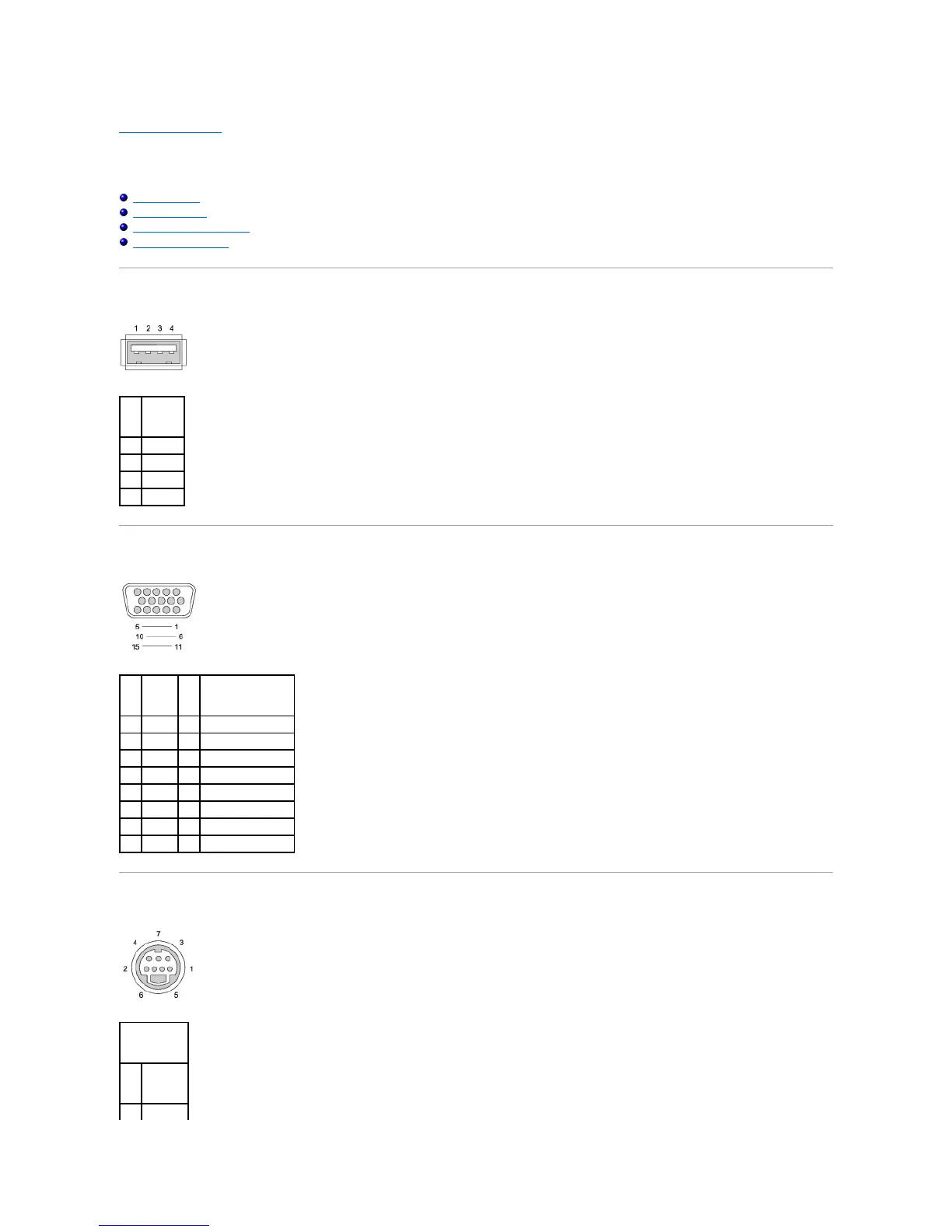

Pin Assignments for I/O Connectors
Dell™Inspiron™9400ServiceManual
USB Connector
Video Connector
S-Video TV-Out Connector
IEEE 1394 Connector
USB Connector
Video Connector
S-Video TV-Out Connector
Pin
Signal
1
USB5V+
2
USBP–
3
USBP+
4
GND
Pin
Signal
Pin
Signal
1
CRT_R
9
5V+
2
CRT_G
10
GND
3
CRT_B
11
MONITOR_DETECT–
4
NC
12
DDC_DATA
5
GND
13
CRT_HS
6
GND
14
CRT_VS
7
GND
15
DDC_CLK
8
GND
S-Video
Pin
Signal
1
GND

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dell Inspiron 9400 and is the answer not in the manual?

Dell Inspiron 9400 Specifications

General IconGeneral
Hard Drive InterfaceSATA
Battery6-cell or 9-cell Lithium Ion
ProcessorIntel Core Duo T2400 / T2500
RAMUp to 2GB DDR2 SDRAM
Display17-inch WXGA+ (1440x900) or WUXGA (1920x1200)
GraphicsNVIDIA GeForce Go 7800
Optical DriveDVD+/-RW
Operating SystemWindows XP Media Center Edition or Windows XP Professional
ChipsetIntel 945PM Express
WirelessIntel PRO/Wireless 3945ABG
Dimensions15.5 x 11.3 x 1.6 inches
Storage60GB / 80GB / 100GB / 120GB 5400RPM or 100GB 7200RPM
