Dell Latitude D530 User Manual

46 Using a Battery
1 If the computer is connected to a docking device (docked), undock it. See
the documentation that came with your docking device for instructions.
2 Ensure that the computer is turned off.

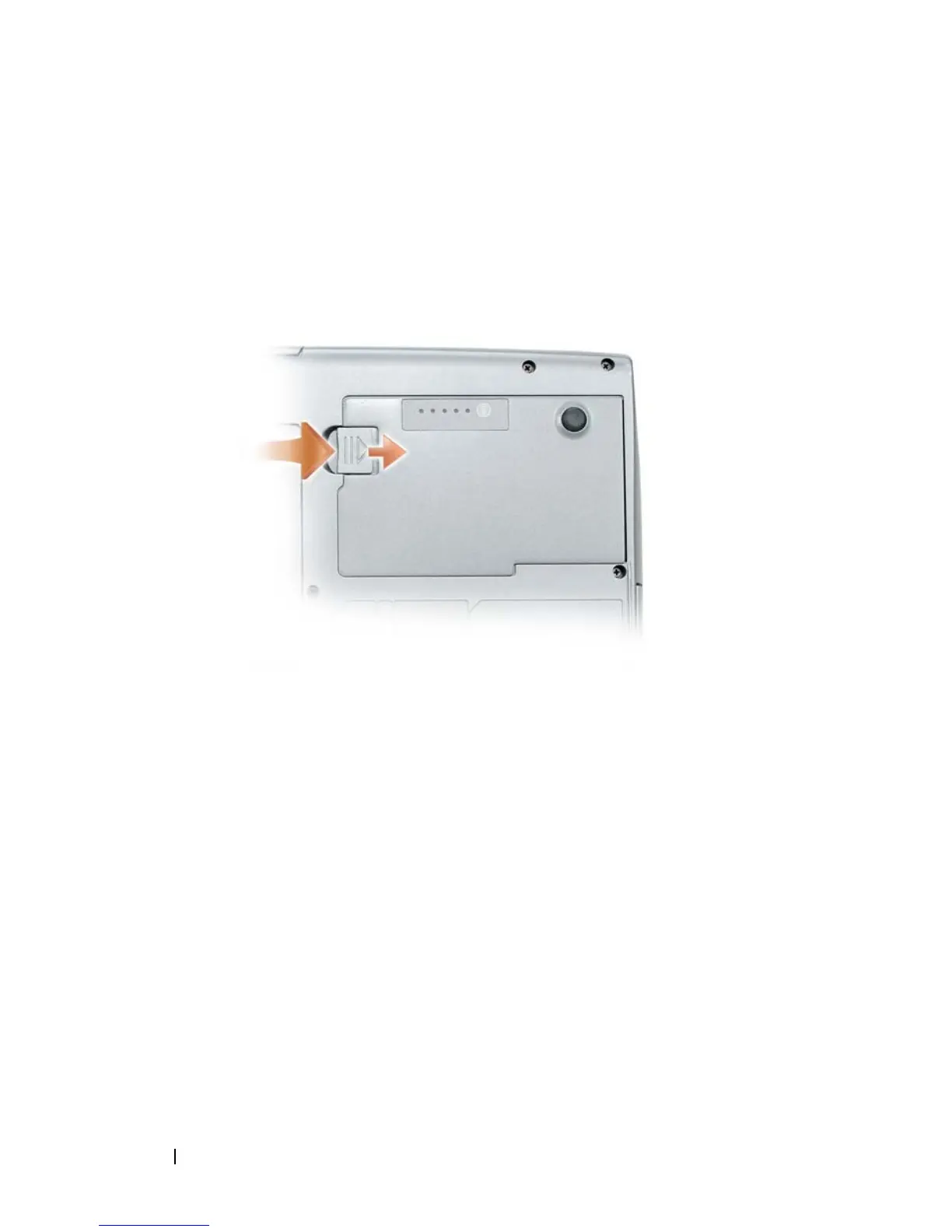

3 Slide the battery-bay latch release on the bottom of the computer, and
then remove the battery from the bay.
To replace the battery, follow the removal procedure in reverse order and press
down until the battery-bay latch release fully engages.
Storing a Battery
Remove the battery when you store your computer for an extended period of
time. A battery discharges during prolonged storage. After a long storage
period, recharge the battery fully (see "Charging the Battery" on page 45)
before you use it.

Dell Latitude D530 Specifications

General

Processor	Intel Core 2 Duo
RAM	Up to 4 GB DDR2
Graphics	Intel GMA X3100
Chipset	Intel GM965
Hard Drive Interface	SATA
Optical Drive	DVD-ROM or DVD+/-RW
Battery	6-cell or 9-cell Lithium-Ion
Display	14.1 inch
Display Resolution	1280 x 800 (WXGA)
Operating System	Windows XP
Ports	4 x USB 2.0, VGA, Ethernet, Modem, Headphone, Microphone
Wireless	802.11a/g
Weight	5.5 lbs (2.49 kg)
