Latitude™ E6420 XFR Service Manual
Page 33

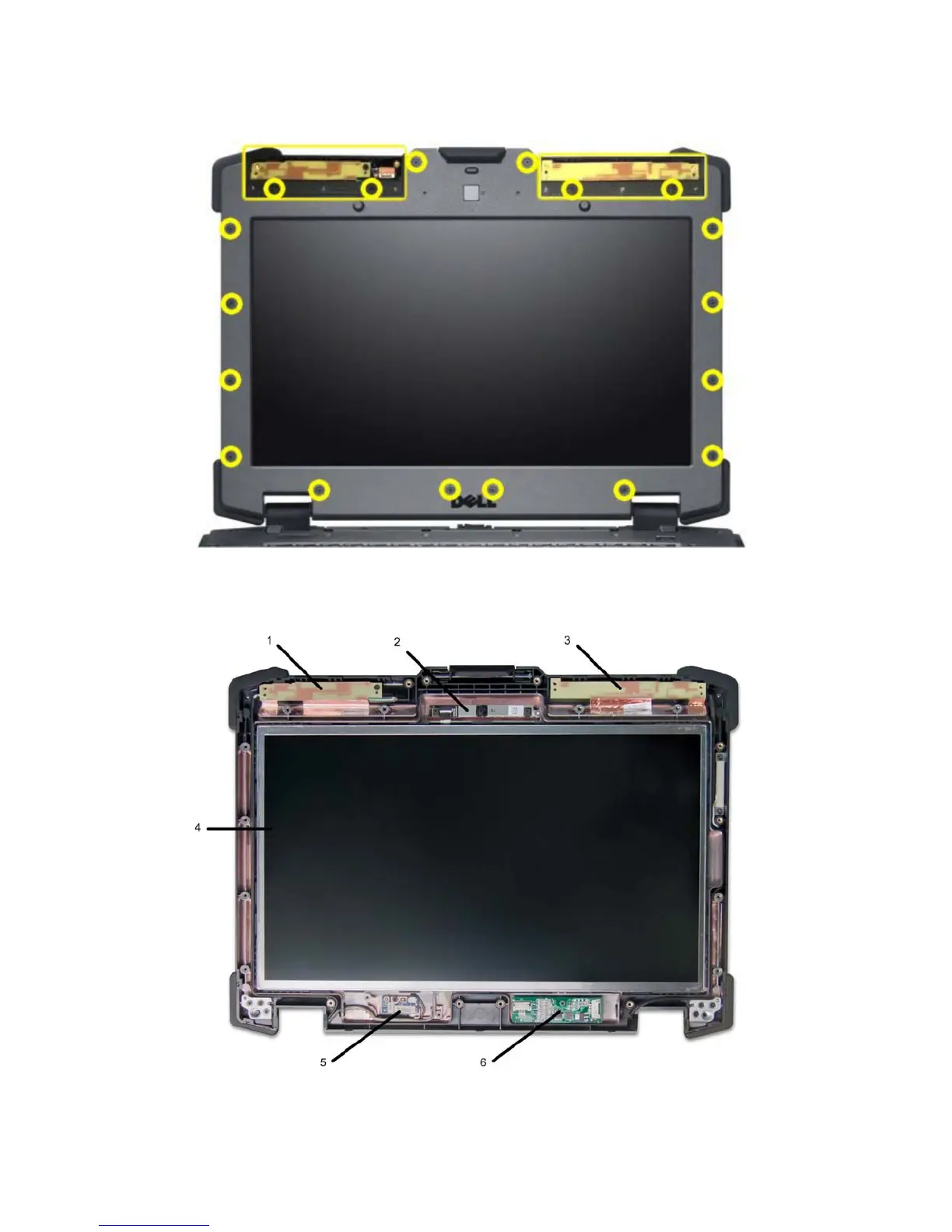

7. Remove the 18 M2.5 x8 mm screws securing the Display Bezel to the Display Assembly
1
M2.5x8 mm (18)
8. Remove the Display Bezel from the Display Assembly
1
Left Antenna
2
Microphone/Camera Module
3
Right Antenna
4
LCD Panel
5
LED Board
6
Touch Controller Board
