Latitude™ E6420 XFR Service Manual
Page 38
1. Follow the procedures in
Before Working on Your Computer.
2. Remove the display bezel (see
Removing the Display Bezel).
3. Remove the M2x3 mm screw securing the Touch Controller module to the Display Back.

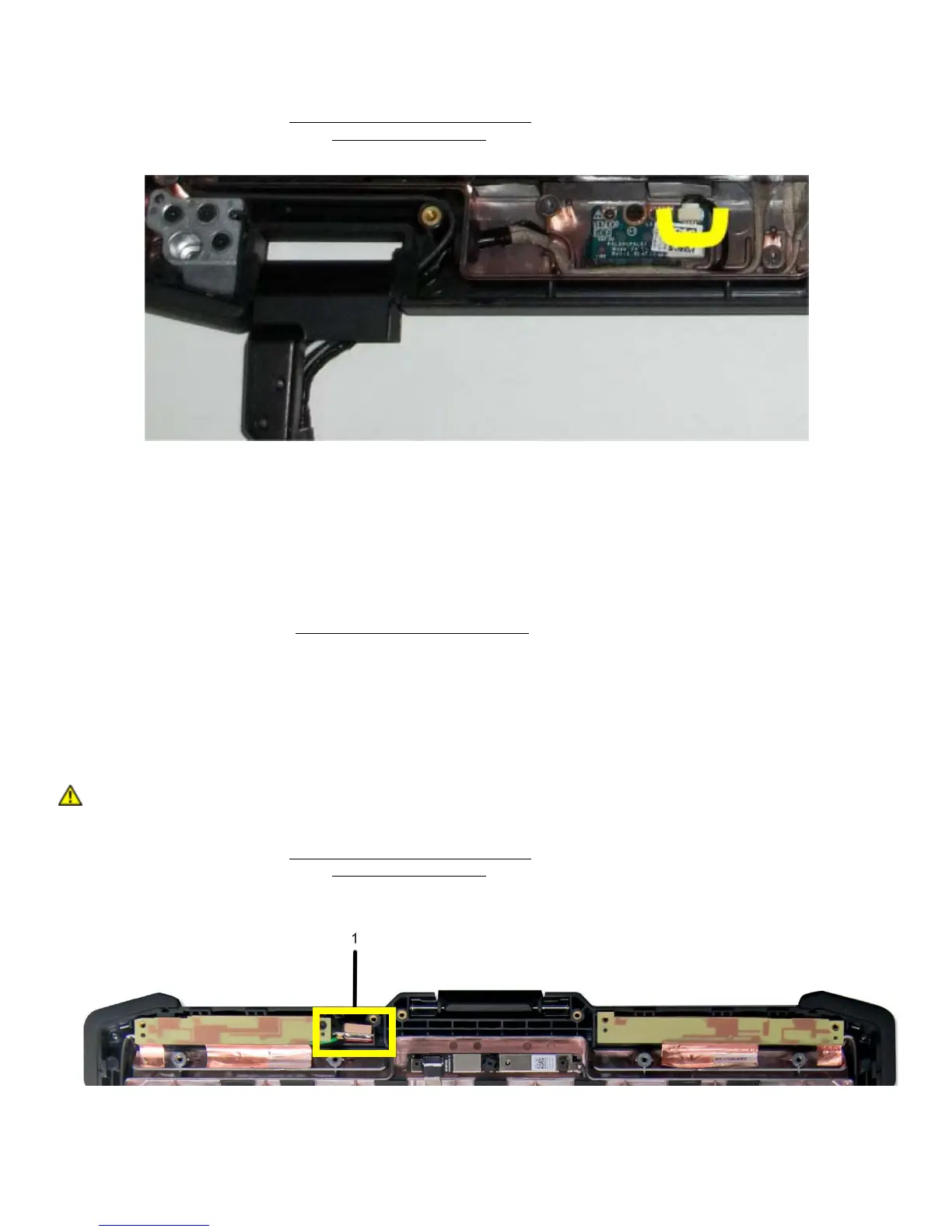

4. Lift out the Display LED board from the left side and disconnect the cable identified in the figure below.
5. Remove the Display LED board.
19.2 Replacing the Display LED Board
1. Reconnect the cable to the Display LED board.
2. Install the Display LED board into the Display Back.
3. Replace and tighten the M2x3 mm screw securing the Display LED board to the display back
4. Replace the display bezel(see Replacing the Display Bezel).
5. Follow the procedures in (
After Working On Your Computer).
20 GPS Antenna (Optional)
20.1 Removing the GPS Antenna
CAUTION: Before you begin any of the procedures in this section, follow the safety
instructions that shipped with your computer.
1. Follow the procedures in
Before Working on Your Computer.
2. Remove the display bezel (see
Removing the Display Bezel).
3. Remove the GPS Antenna from the pocket at the top of the Display back as shown in the figure below..
4. Disconnet the green antenna cable from the GPS antenna.
1
GPS Antenna
5. Remove the Microphone/Camera Module

Dell Latitude E6400 XFR Specifications

General

Processor	Intel Core 2 Duo
Storage	Up to 250GB HDD or 128GB SSD
Warranty	3-year limited warranty
Display	14.1-inch WXGA (1280x800)
RAM	Up to 8GB DDR2
Graphics	Intel GMA 4500MHD
Operating System	Windows Vista, Windows XP
Rugged Features	MIL-STD-810F
Chipset	Intel GM45 Express Chipset
Wireless	Wi-Fi 802.11a/g/n, Bluetooth 2.1
Connectivity	Gigabit Ethernet, Modem
Ports	VGA
Card Slots	Smart Card Reader
Battery	6-cell or 9-cell Lithium Ion
Networking	Gigabit Ethernet
Security	Trusted Platform Module (TPM), Fingerprint Reader, Smart Card Reader
