Latitude™ E6420 XFR Service Manual
Page 36

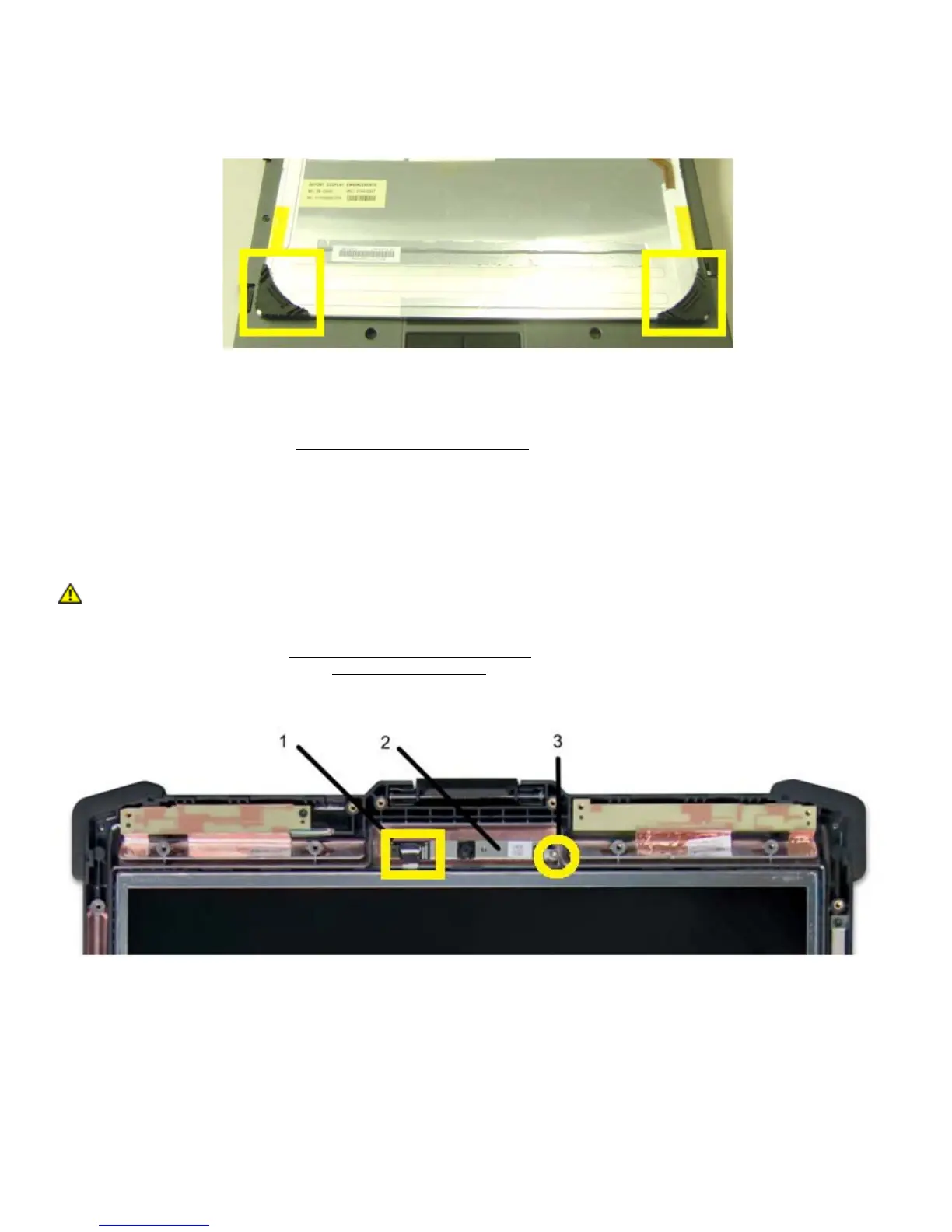

4. Position the two upper corner dampners on the LCD panel (top edge) before the LCD panel is installed in the
display back.
5. Rotate the panel up and position the lower edge into the corner dampners in the Display Back. Continue to
rotate the LCD panel into position and insure the upper corner dampners are correctly located on each corner
of the LCD panel, between the LCD panel and the Display Back.
6. Replace the display bezel(see Replacing the Display Bezel).
7. Follow the procedures in (
After Working On Your Computer).
17 Microphone/Camera Module (Optional)
17.1 Removing the Microphone/Camera Module
CAUTION: Before you begin any of the procedures in this section, follow the safety
instructions that shipped with your computer.
1. Follow the procedures in
Before Working on Your Computer.
2. Remove the display bezel (see
Removing the Display Bezel).
3. Loosen the captive screw on the right side that secures the Microphone/Camera module to the Display Back.
4. Lift out Microphone/Camera Module from right side and disconnect the flex cable identified in the figure below.
1
Flex Connection
2
Microphone/Camera Module
3
M2x3 mm (1)
5. Remove the Microphone/Camera Module
17.2 Replacing the Microphone/Camera Module
1. Install the Microphone/Camera Module into the Display Back.
