Latitude™ E6420 XFR Service Manual
Page 9

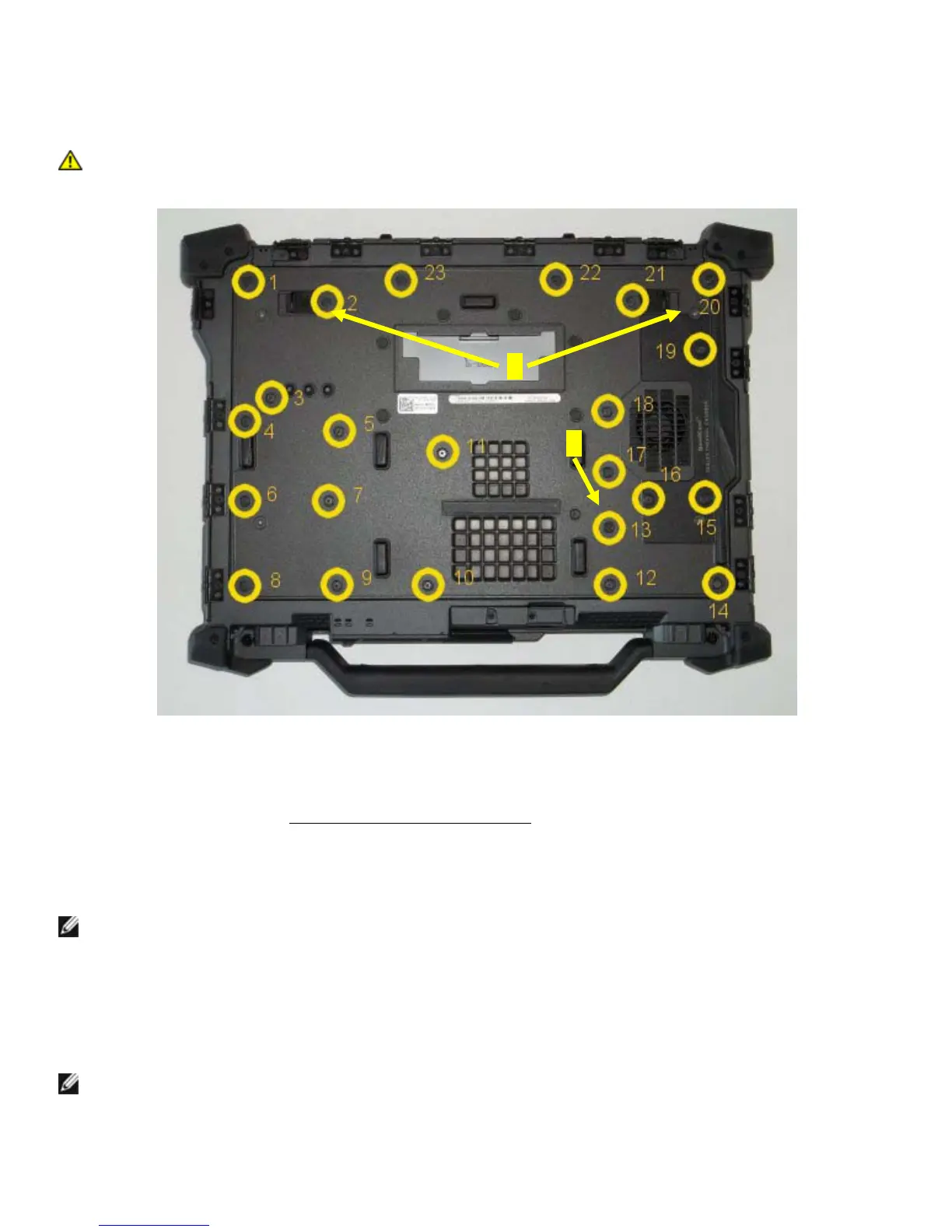

2 Bottom Access Panel
CAUTION: Before you begin any of the procedures in this section, follow the safety
instructions that shipped with your computer.
1
Captive Screw
2
Battery release slider latches (2)
2.1 Removing the Bottom Access Panel
1. Follow the procedures in Before Working on Your Computer.
2. Close the display and turn the computer upside down.
3. Remove the twenty-three M2.5 x 5-mm screws that secure the bottom access panel as indicated in the figure
above.
4. Loosen the single captive screw highlighted in the figure above.
5. Lift the bottom access panel to remove it from the base assembly.
NOTE: No snaps are used to attach the bottom access panel to the base. There is a gasket
attached to the perimeter of the bottom access panel, and this gasket might provide some
resistance during removal.
2.2 Replacing the Bottom Access Panel
1. Position the Bottom Access Panel into place.
NOTE:
Ensure the battery release slider latches on the bottom access panel are in their locked
positions (pushed toward center of chassis). See photo below for correct slider latches positions.
2
1

Dell Latitude E6400 XFR Specifications

General

Processor	Intel Core 2 Duo
Storage	Up to 250GB HDD or 128GB SSD
Warranty	3-year limited warranty
Display	14.1-inch WXGA (1280x800)
RAM	Up to 8GB DDR2
Graphics	Intel GMA 4500MHD
Operating System	Windows Vista, Windows XP
Rugged Features	MIL-STD-810F
Chipset	Intel GM45 Express Chipset
Wireless	Wi-Fi 802.11a/g/n, Bluetooth 2.1
Connectivity	Gigabit Ethernet, Modem
Ports	VGA
Card Slots	Smart Card Reader
Battery	6-cell or 9-cell Lithium Ion
Networking	Gigabit Ethernet
Security	Trusted Platform Module (TPM), Fingerprint Reader, Smart Card Reader
