Latitude™ E6420 XFR Service Manual
Page 59

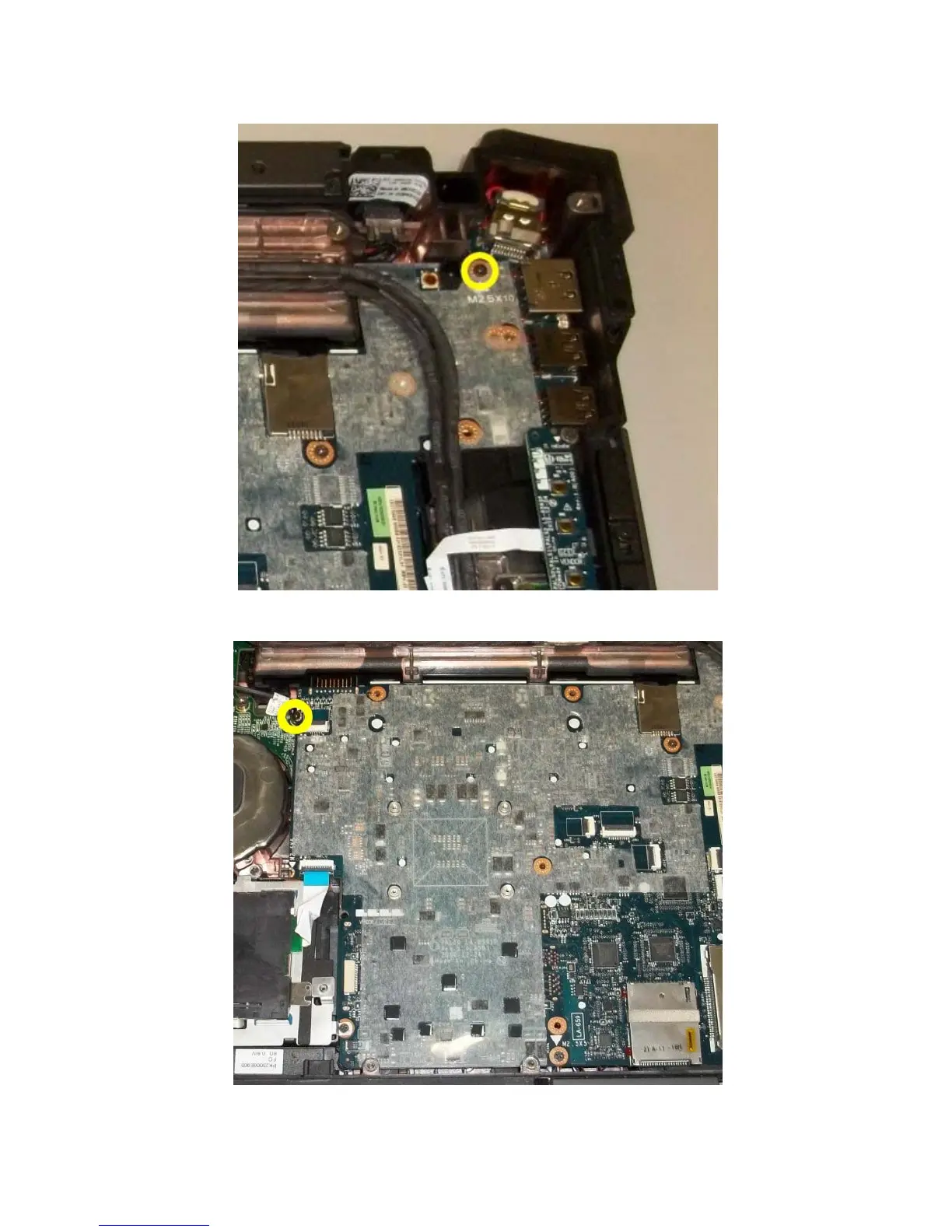

16. Remove the one M2.5 x 5-mm screw securing the left rear of the system board to the I/O Daughter Board.
17. Remove the remaining three M2.5 x 5-mm screws from the system board as shown in the figure.
