Dell OptiPlex 360 User Manual

Cards 51
7 If you are removing a card permanently, install a filler bracket in the empty
card-slot opening.
NOTE: Installing filler brackets in empty card-slot openings is necessary to
maintain FCC certification of the computer. The brackets also keep dust and
dirt out of your computer and maintain the airflow that cools your computer.

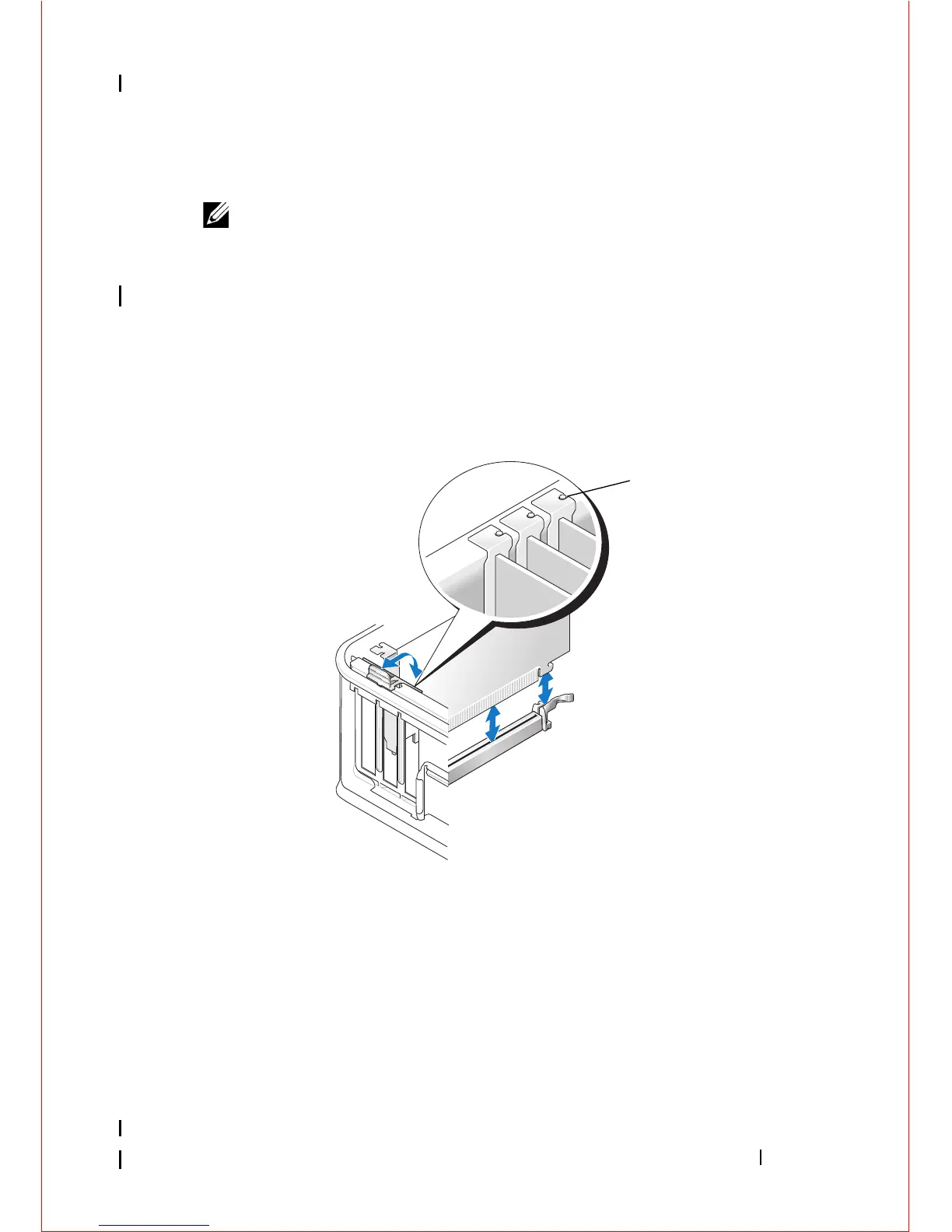

8 Before you close the card retention mechanism, ensure:
• The tops of all cards and filler brackets are flush with the alignment
guide.
• The notch in the top of the card or filler bracket fits around the
alignment guide.
9 Secure the card(s) by closing the card retention latch and snapping it into
place.
10 Replace the riser-card cage:
a Align the tabs in the side of the riser-card cage with the slots on the
side of the computer, and slide the riser-card cage down into place.
1 alignment guides (3)
1

Dell OptiPlex 360 Specifications

General

Processor	Intel Core 2 Duo, Intel Pentium Dual-Core, Intel Celeron
Chipset	Intel G31 Express
Networking	Integrated 10/100/1000 Ethernet
Memory	Up to 4GB DDR2 SDRAM
Storage	SATA hard drive, up to 500GB
Graphics	Integrated Intel GMA 3100
Optical Drive	DVD-ROM or DVD+/-RW
Operating System	Windows Vista, Windows XP
Form Factor	Mini Tower, Desktop
Audio	Integrated
Expansion Slots	PCI, PCIe x16
Ports	1 Serial, 1 Parallel, 1 VGA, 1 RJ-45, Audio in/out
