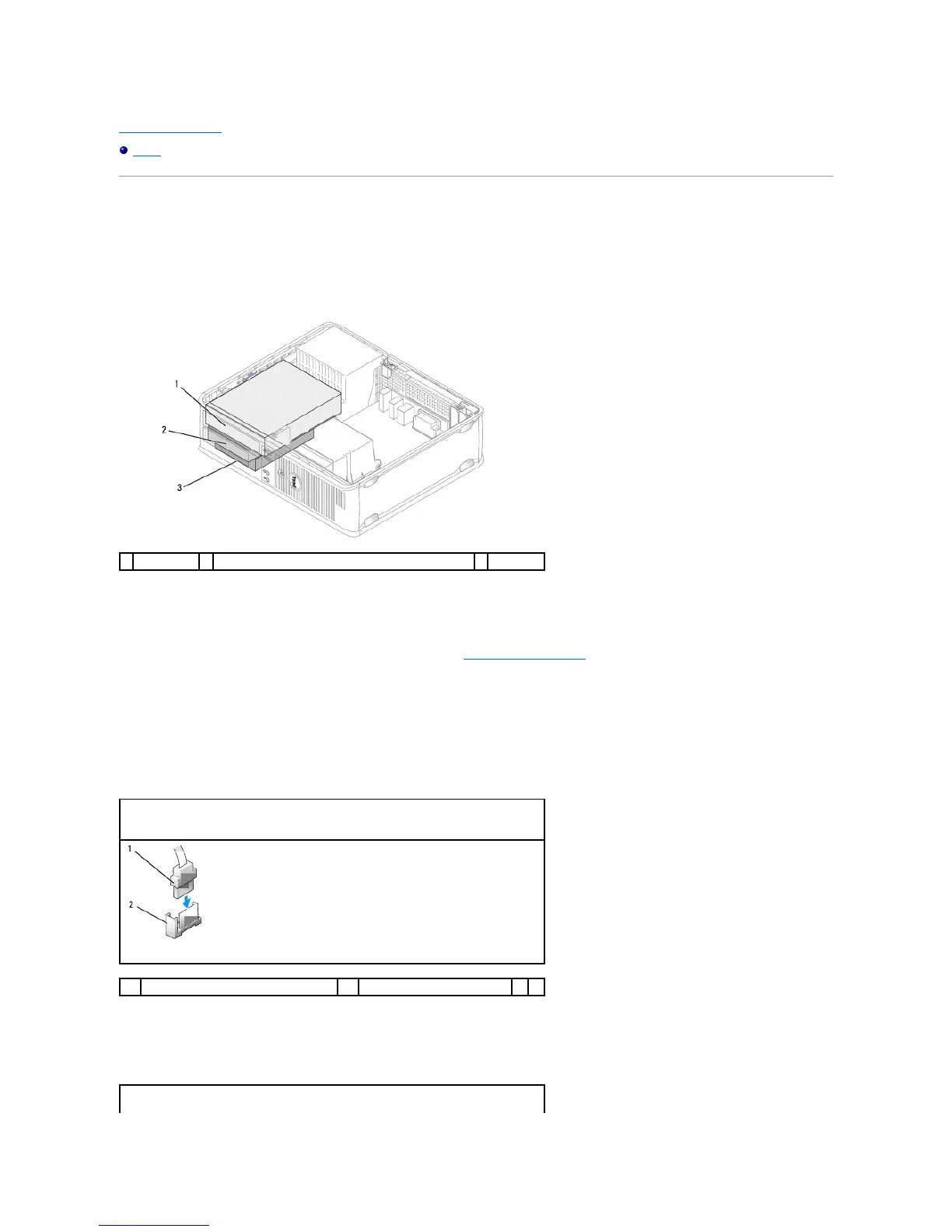

Drives
Drives
Your computer supports:
l One SATA hard drive
l One optional floppy drive or media card reader or one second SATA hard drive
l One optional optical (CD or DVD) drive

General Installation Guidelines
Connect the SATA hard drive to the connector labeled "SATA0." Connect the SATA CD or DVD drives to the connector labeled "SATA1" on the system board.
Connect a second optional hard drive to the connector labeled "SATA2." See System Board Components for information about system board connectors.

Connecting Drive Cables
When you install a drive, you connect two cables—a DC power cable and a data cable—to the back of the drive and to the system board.

Drive Interface Connectors
Interface connectors are keyed for correct insertion.

Power Cable Connectors
1
optical drive
2
floppy drive or media card reader or SATA hard drive
3
hard drive

Serial ATA Connector
1
interface cable connector
2
interface connector



