Next steps
1. Install the base cover.
2. Exit the service mode
3. Install the SIM card tray for 4G LTE enabled systems.
4. Install the microSD-card.
5. Follow the procedure in after working inside your computer.
WLAN card
Removing the WLAN card
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the microSD-card.
3. Remove the SIM card tray for 4G LTE enabled systems.
4. Enter the service mode.
5. Remove the base cover.
About this task

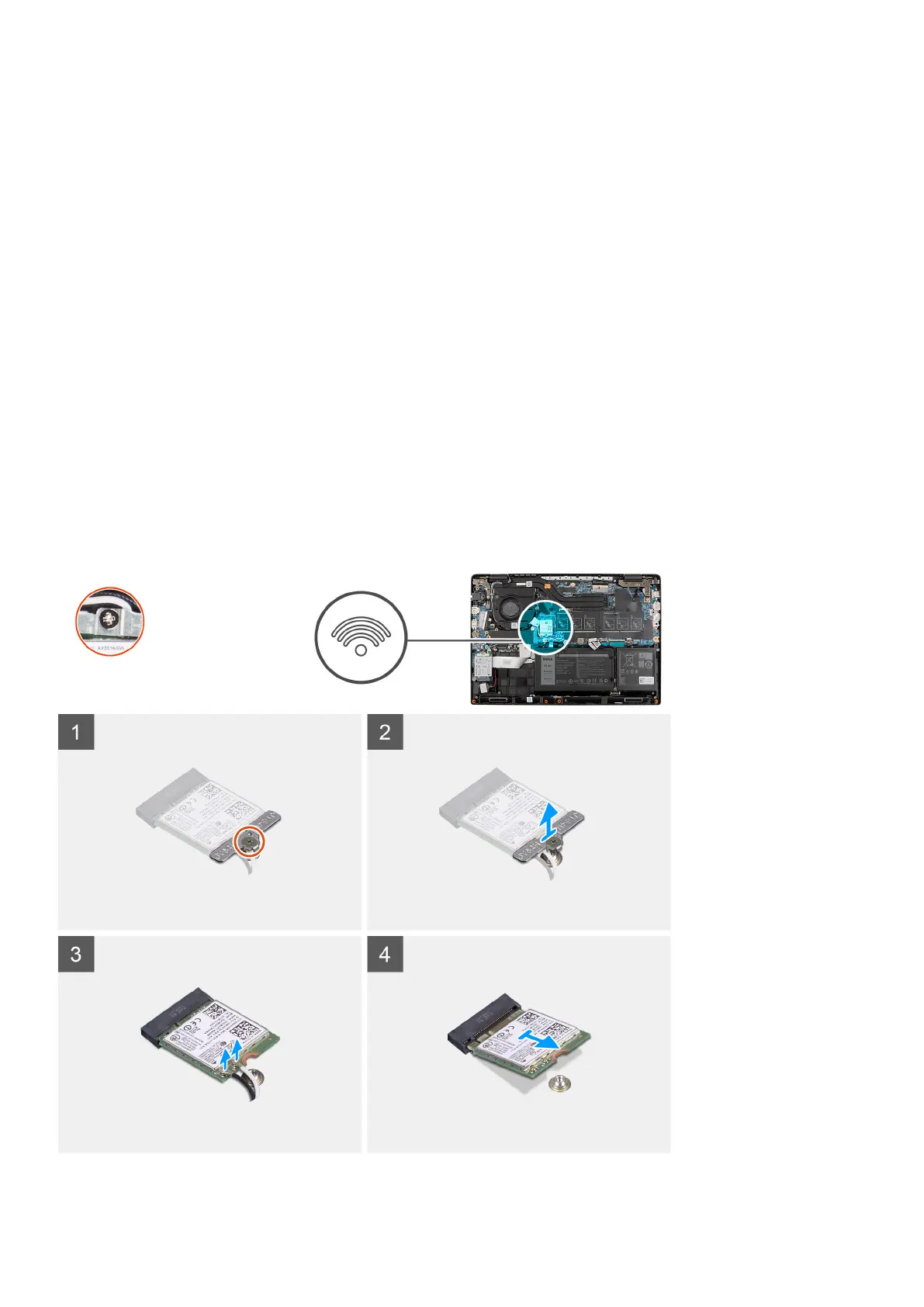

The following image indicates the location of the WLAN card and provides a visual representation of the removal procedure.
36
Removing and installing components
