About this task

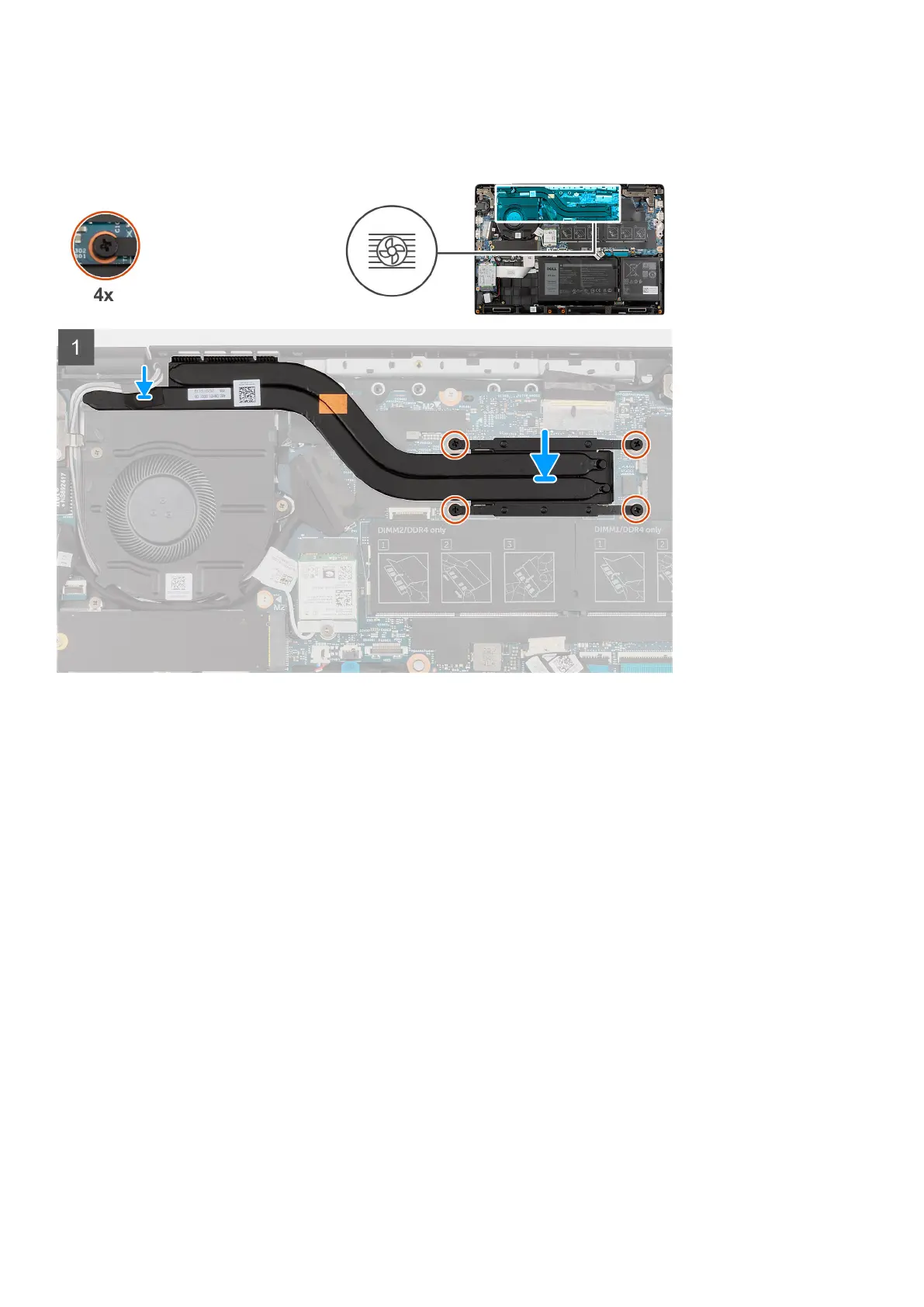

The following image indicates the location of the heatsink assembly and provides a visual representation of the installation
procedure.
Steps
1. Align and place the heatsink assembly into the slot on the system board.
2. Tighten the four captive screws (in order, 1>2>3>4) to secure the heatsink assembly to the system board.
Next steps
1. Install the base cover.
2. Exit the service mode
3. Install the SIM card tray for systems enabled with 4G LTE.
4. Install the microSD-card.
5. Follow the procedure in after working inside your computer.
Power adapter port
Removing the power adapter port
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the microSD-card.
3. Remove the SIM card tray for 4G LTE enabled systems.
4. Enter the service mode.
5. Remove the base cover.
Removing and installing components
63
