About this task

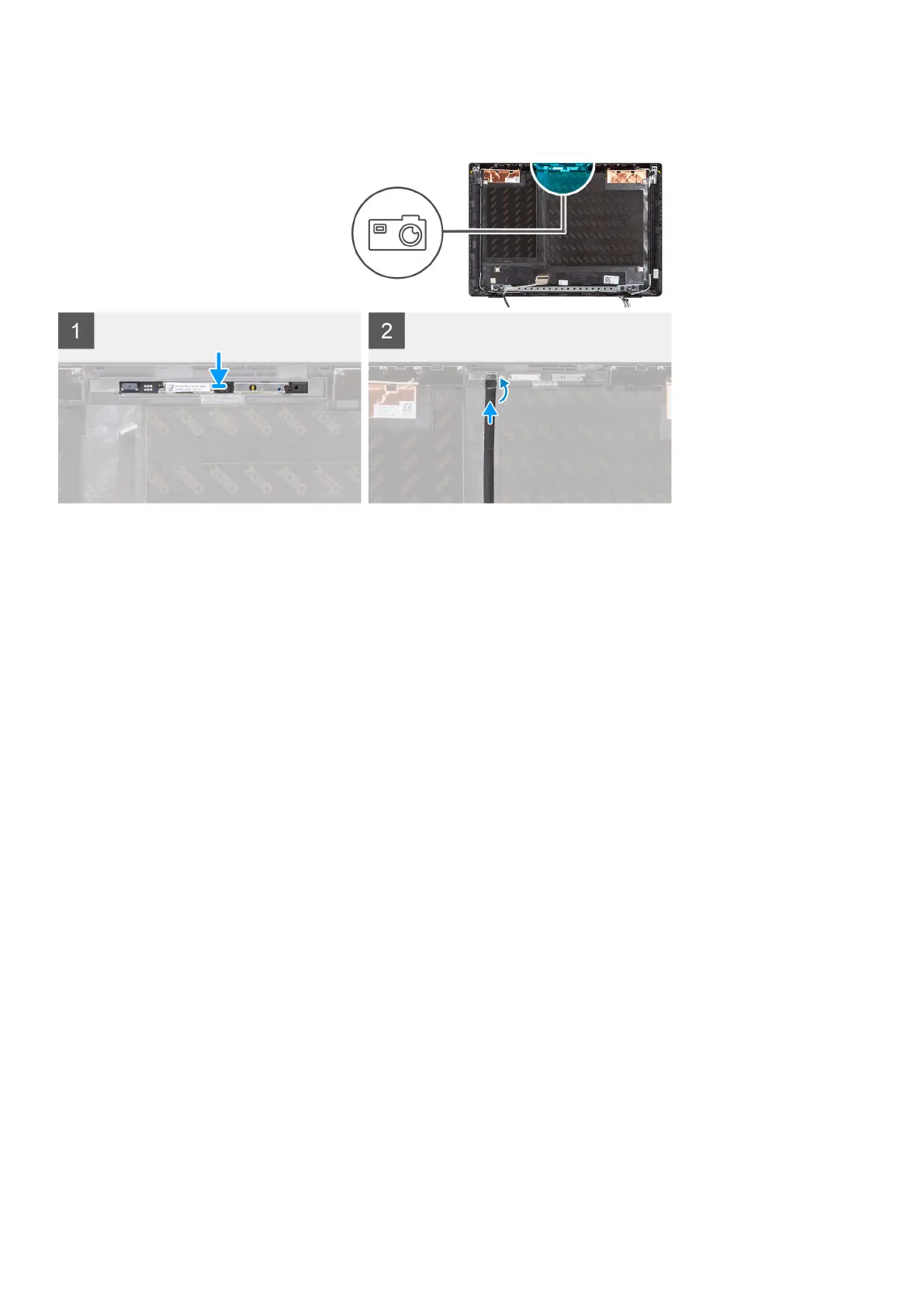

The following image indicates the location of the camera and provides a visual representation of the installation procedure.
Steps
1. Align and place the camera module into the slot on the display back-cover.
2. Connect the camera cable to the connector on the camera module.
3. Affix the adhesive tape to secure the camera cable to the connector on the camera module.
4. Align and affix the camera cable on the display back-cover.
Next steps
1. Install the display panel.
2. Install the display bezel.
3. Install the display assembly.
4. Install the I/O board cable.
5. Install the WWAN card for 4G LTE enabled systems.
6. Install the WLAN card.
7. Install the base cover.
8. Exit the service mode
9. Install the SIM card tray for 4G LTE enabled systems.
10. Install the microSD-card.
11. Follow the procedure in after working inside your computer.
Display cable
Removing the display cable
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the microSD-card.
3. Remove the SIM card tray for 4G LTE enabled systems.
4. Enter the service mode.
5. Remove the base cover.
6. Remove the WLAN card.
7. Remove the WWAN card for 4G LTE enabled systems.
