Dell P144G User Manual

Installing the display bezel
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

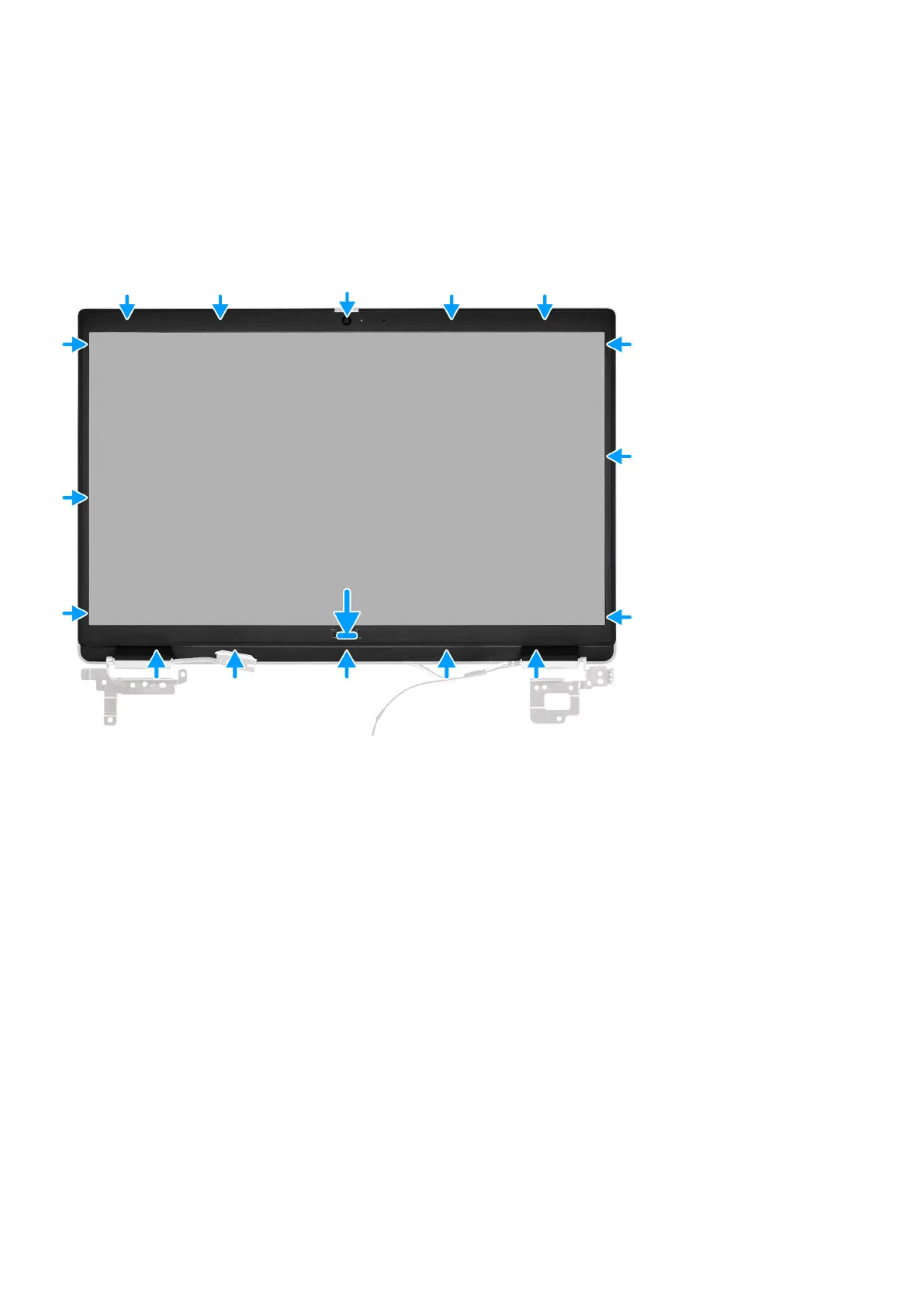

The following image indicates the location of the display bezel and provides a visual representation of the installation procedure.
Steps
Align the display bezel with the display assembly. Gently snap the display bezel into place.
Next steps
1. Install the display assembly.
2. Install the I/O board cable.
3. Install the WWAN card for 4G LTE enabled systems.
4. Install the WLAN card.
5. Install the base cover.
6. Exit the service mode
7. Install the SIM card tray for 4G LTE enabled systems.
8. Install the microSD-card.
9. Follow the procedure in after working inside your computer.
Removing and installing components
61
