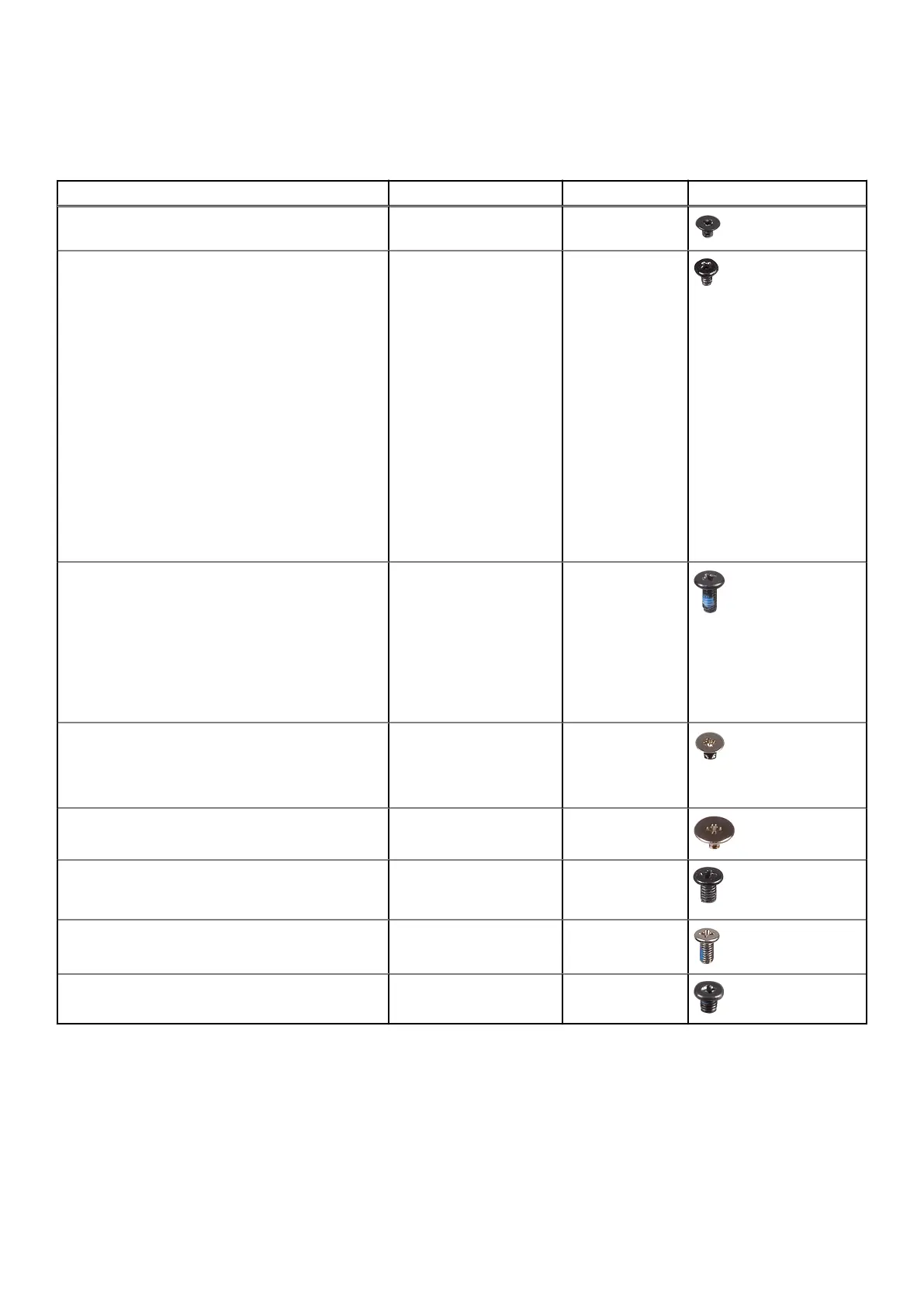

Screw size list
Table 2. Precision 7530
Component Screw type Quantity Image
Keyboard
M2.0x2.0
6
SSD thermal plate
M.2 SSD card
HDD Interposer board
WLAN card
WWAN
eDP bracket
Display panel
Power button board
Smart card cage
FPC beam connector
Palmrest
Display support bracket
M2.0x3.0
1 per SSD
1 per SSD
2
1
1
2
4
1
2
2
4
6
System board
Palmrest
Type-C bracket
LED board
Power connector port
GPU card
M2.0x5.0
3
11
3
1
1
2
4 Cell Battery
6 Cell Battery
HDD assembly
M2.5x3.0
2
3
4
Display hinge
M2.5x3.5
6
Hinge cap
Display assembly (bottom)
M2.5x4.0
4
2
Display assembly (rear)
M2.5X6.0
2
HDD bracket
M3.0x3.0
4
SD card
Removing SD card
1. Follow the procedure in Before working inside your computer.
Removing and installing components
15
