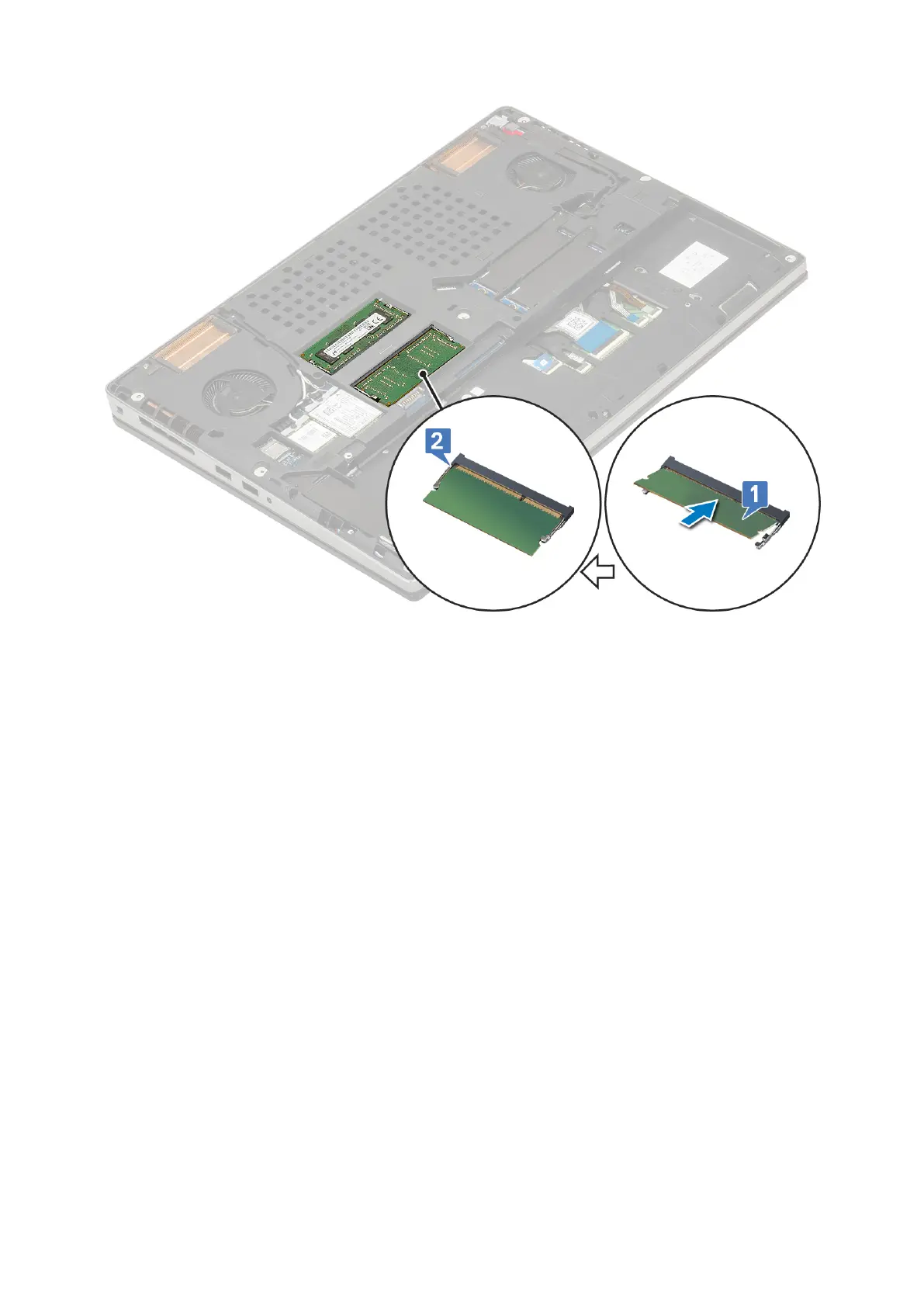

2. Install the:
a. battery
b. base cover
3. Follow the procedure in After working inside your computer.
Removing the secondary memory module
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery
c. keyboard
3. To remove the secondary memory module:
a. Remove the single (M2.0x3.0) screw that secures the memory shield [1].
b. Slide and lift the memory shield from the memory module on the system [2].
c. Pry the retention clips away from the memory module until it pops up [3].
d. Lift the memory module and remove it from the system [4].
34
Removing and installing components
