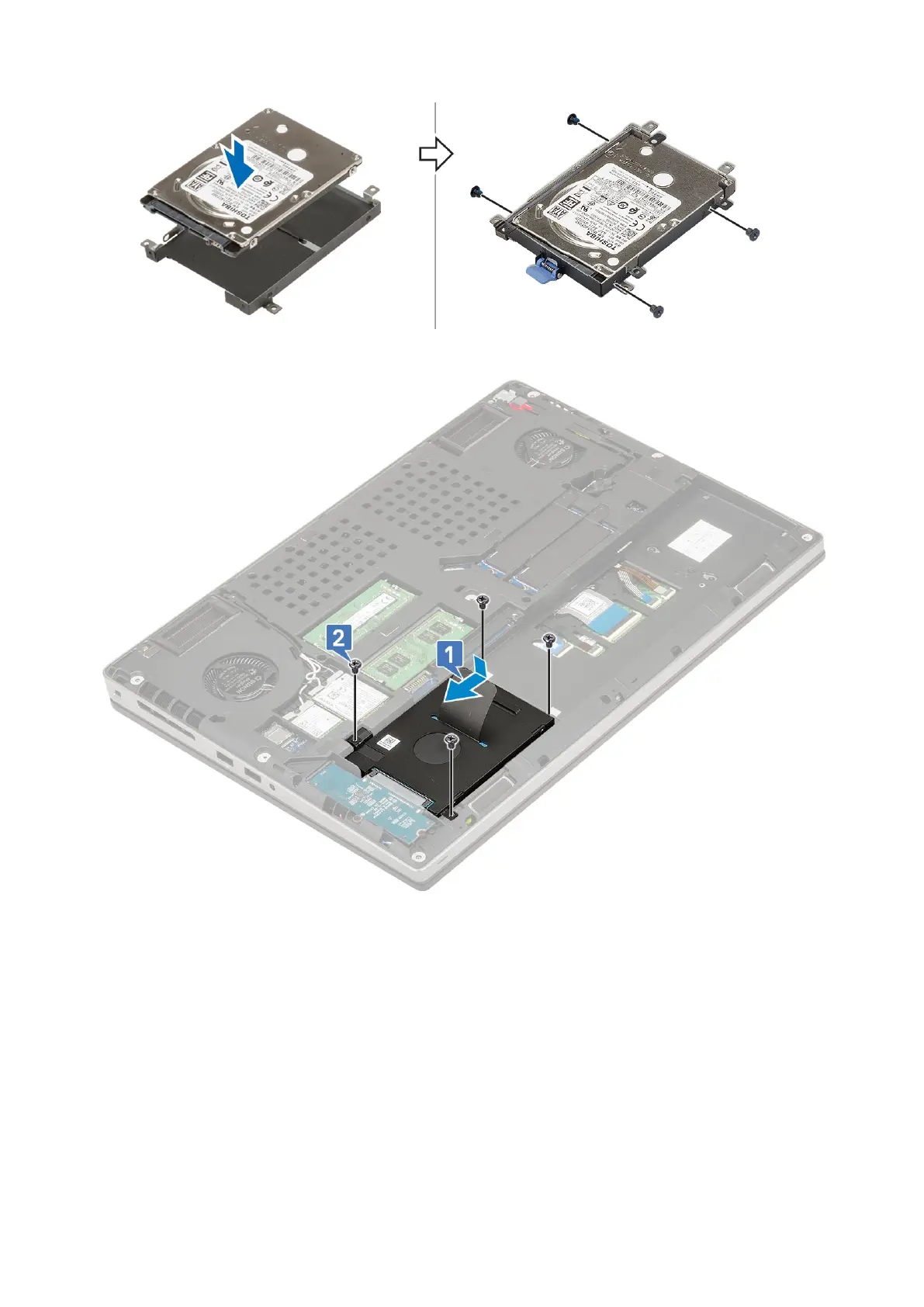

b. Insert the hard drive assembly into its slot in the system [1].
c. Replace the 4 (M2.5x3.0) screws to secure the hard drive assembly to the system [2].
2. Install the:
a. base cover
b. SD card
3. Follow the procedure in After working inside your computer.
Hard drive interposer board
Removing the hard drive interposer board
1. Follow the procedures in Before working inside your computer.
2. Remove the:
a. SD card
Removing and installing components
25
