h. palmrest
i. display assembly
3. To remove display bezel:

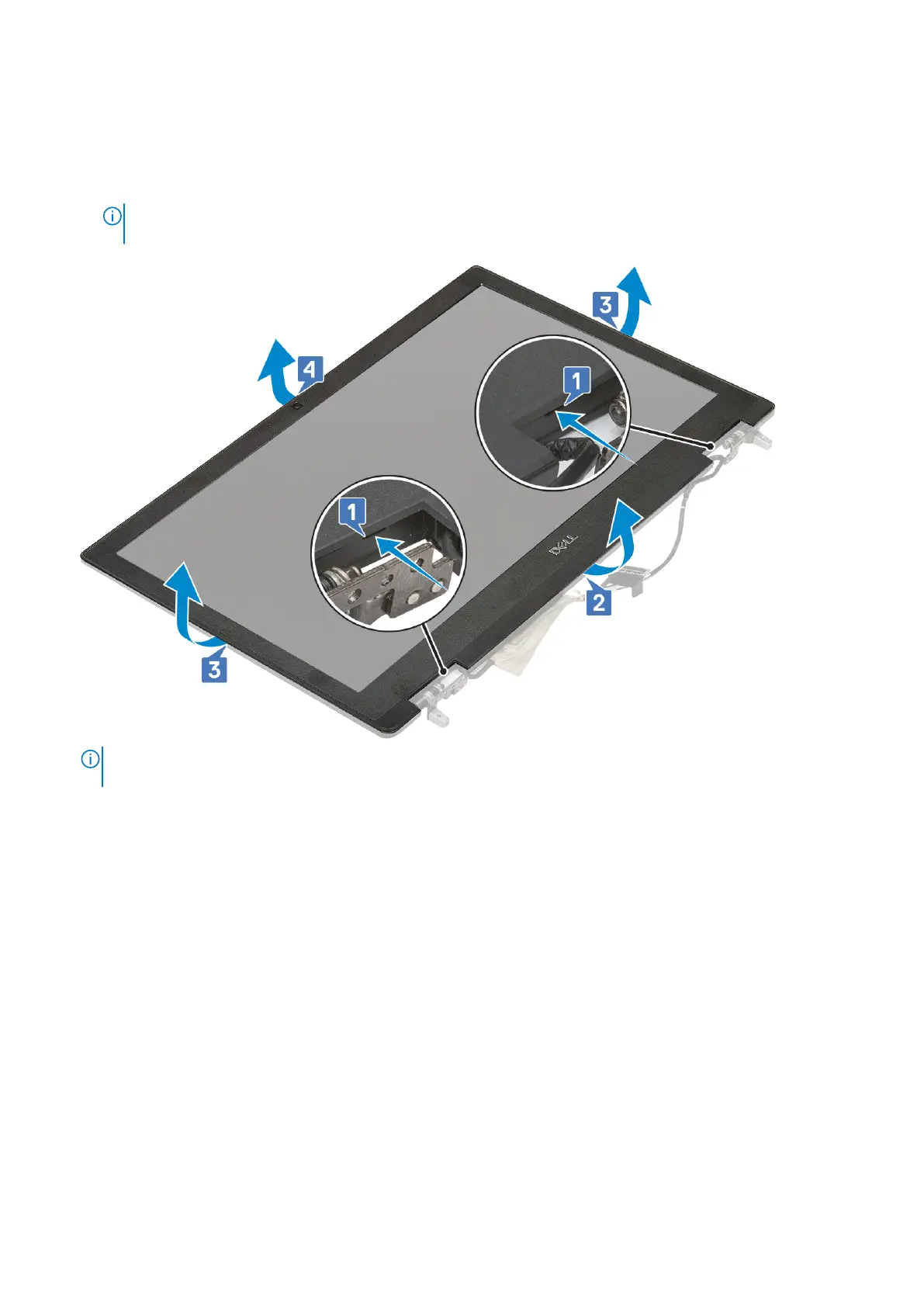

a. Using a plastic scribe pry the two recess points at the bottom edge of the display bezel [1].
b. Pry around the sides and top edge of the display bezel [2, 3, 4].
NOTE: While prying the display bezel, make sure to pry along the outside edge of the display bezel using your
hands-using a screw driver or other sharp objects may damage the display cover.
NOTE: The display bezel shipped with a non-touch display is a disposable part and should be replaced with a new display
bezel anytime it is removed from the system.
Installing the display bezel
1. To install the display bezel:
a. Place the display bezel on the display assembly.
b. Press the edges of the display bezel until it clicks onto the display assembly [1, 2, 3, 4].
86
Removing and installing components
To Next Page
