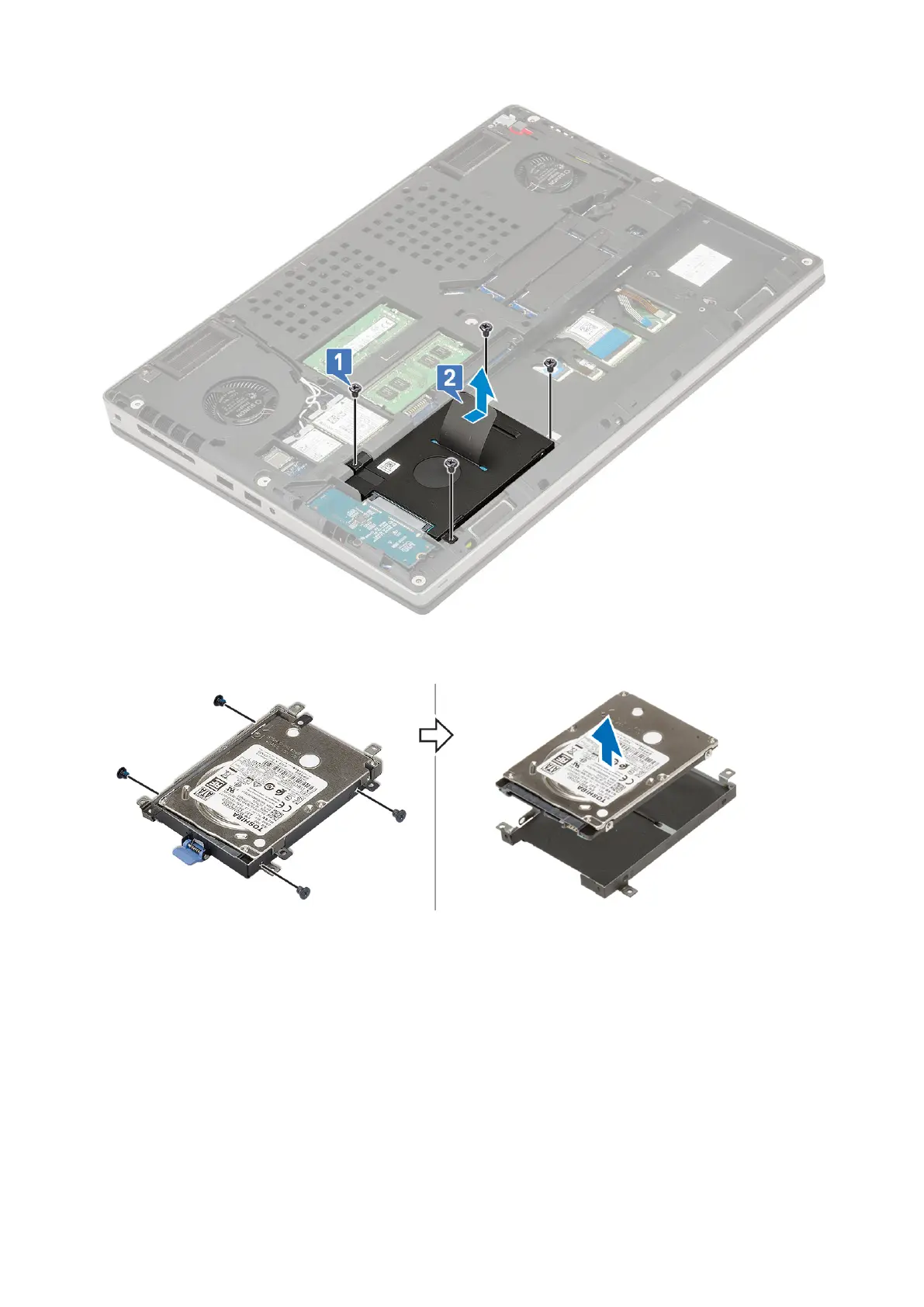

c. Remove the hard drive assembly from the system.
d. Remove the 4 (M3.0x3.0) screws that secure the hard drive assembly to the hard drive bracket.
e. Remove the hard drive from the hard drive bracket.
Installing the hard drive assembly
1. To install the hard drive assembly:
a. Place the hard drive to the hard drive bracket and replace the 4 (M3.0x3.0) screws to secure the hard drive to the hard
drive bracket.
24
Removing and installing components
