2. Install the:
a. palmrest
b. hard drive
c. keyboard
d. battery
e. base cover
f. SD card
3. Follow the procedure in After working inside your computer.
LED board
Removing the LED board
1. Follow the procedures in Before working inside your computer.
2. Remove the:
a. SD card
b. base cover
c. battery
d. keyboard
e. hard drive
f. palmrest

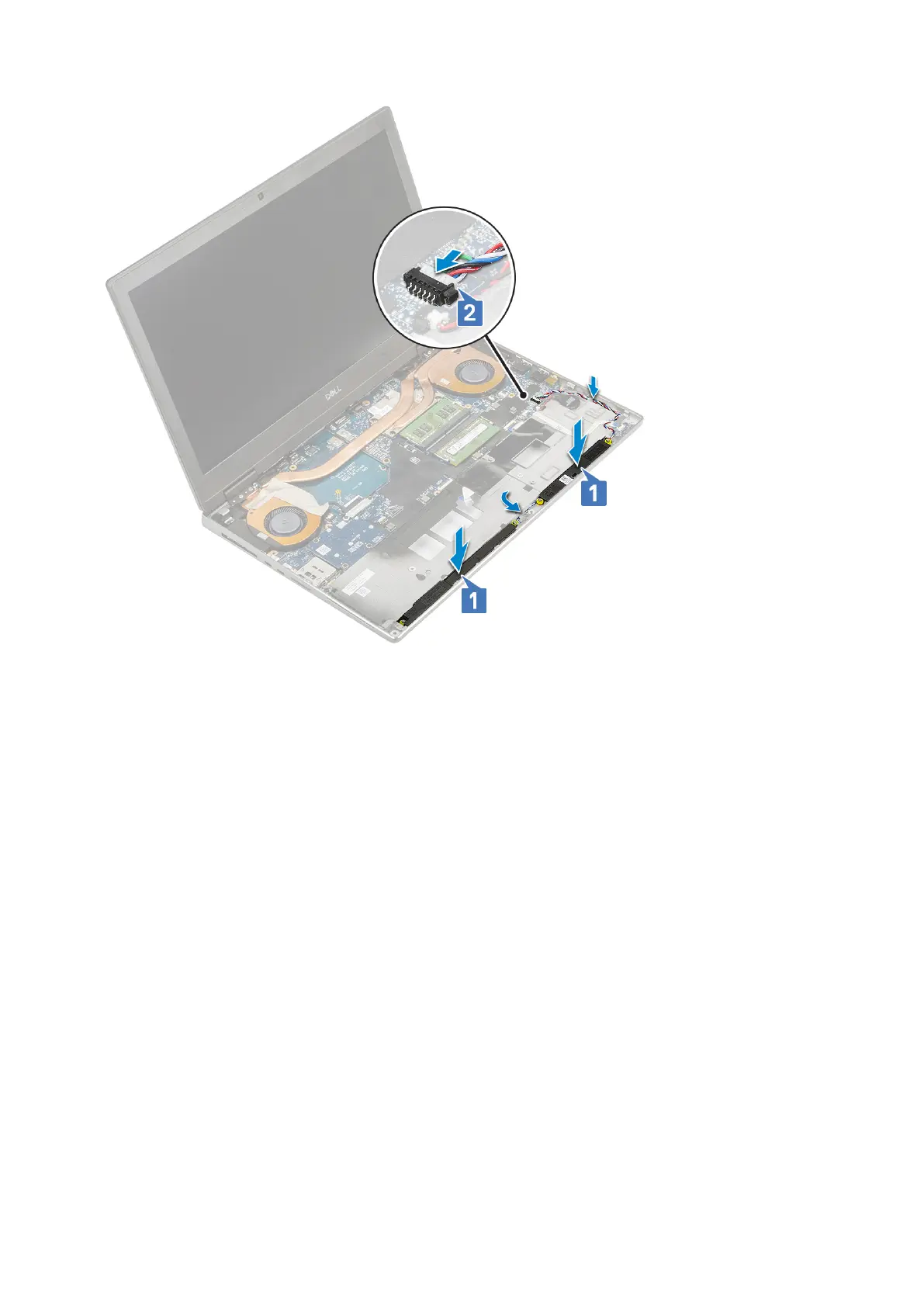

3. To remove LED board:
a. Lift the tab and disconnect the LED-board cable from the system board [1].
b. Peel the LED-board cable from the system.
c. Remove the single (M2.0x5.0) screw that secures the LED board to the system [2].
62
Removing and installing components
