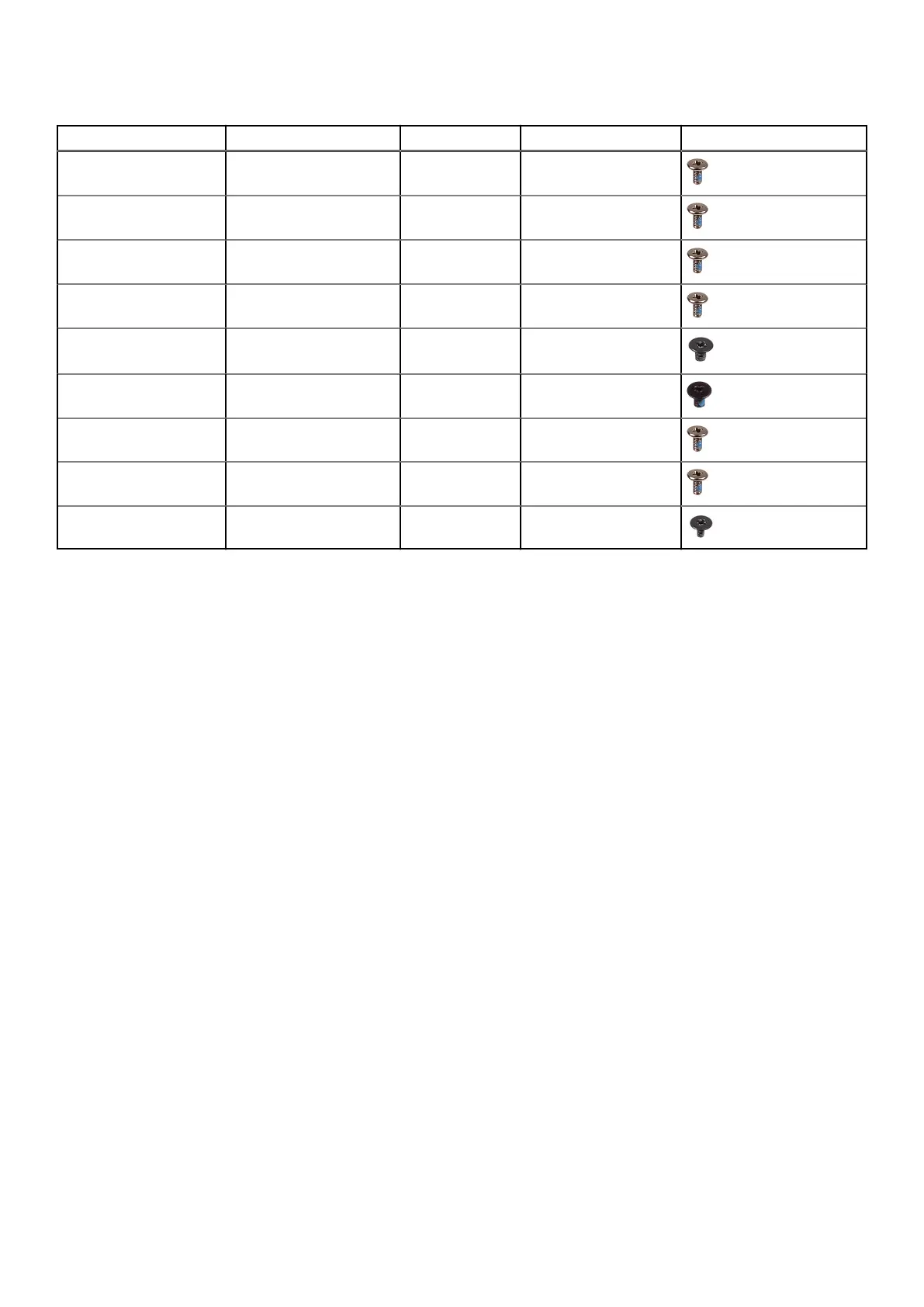

Table 1. Screw list (continued)
Component Secured to Screw type Quantity Screw image
GPU fan Palm-rest and keyboard
assembly
M2x4 2
M.2 2280 Solid-state
drive
System board M2x4 2
M.2 2230 Solid-state
drive
Palm-rest and keyboard
assembly
M2x4 1
USB Type-C bracket System board M2x4 2
Touchpad bracket Palm-rest and keyboard
assembly
M2x3 3
Touchpad Palm rest and keyboard
assembly
M1.6x2 2
WLAN card bracket WLAN card M2x4 1
System board Palm-rest and keyboard
assembly
M2x4 6
Keyboard bracket Palm rest M1.2x2 39
Base cover
Removing the base cover
Prerequisites
1. Follow the procedure in Before working inside your computer.
About this task
The figure indicates the location of the base cover and provides a visual representation of the removal procedure.
Removing and installing components
11
