Power button with optional fingerprint reader
Removing the power button and optional fingerprint reader
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the WLAN card.
5. Remove the GPU fan.
6. Remove the I/O board.
About this task

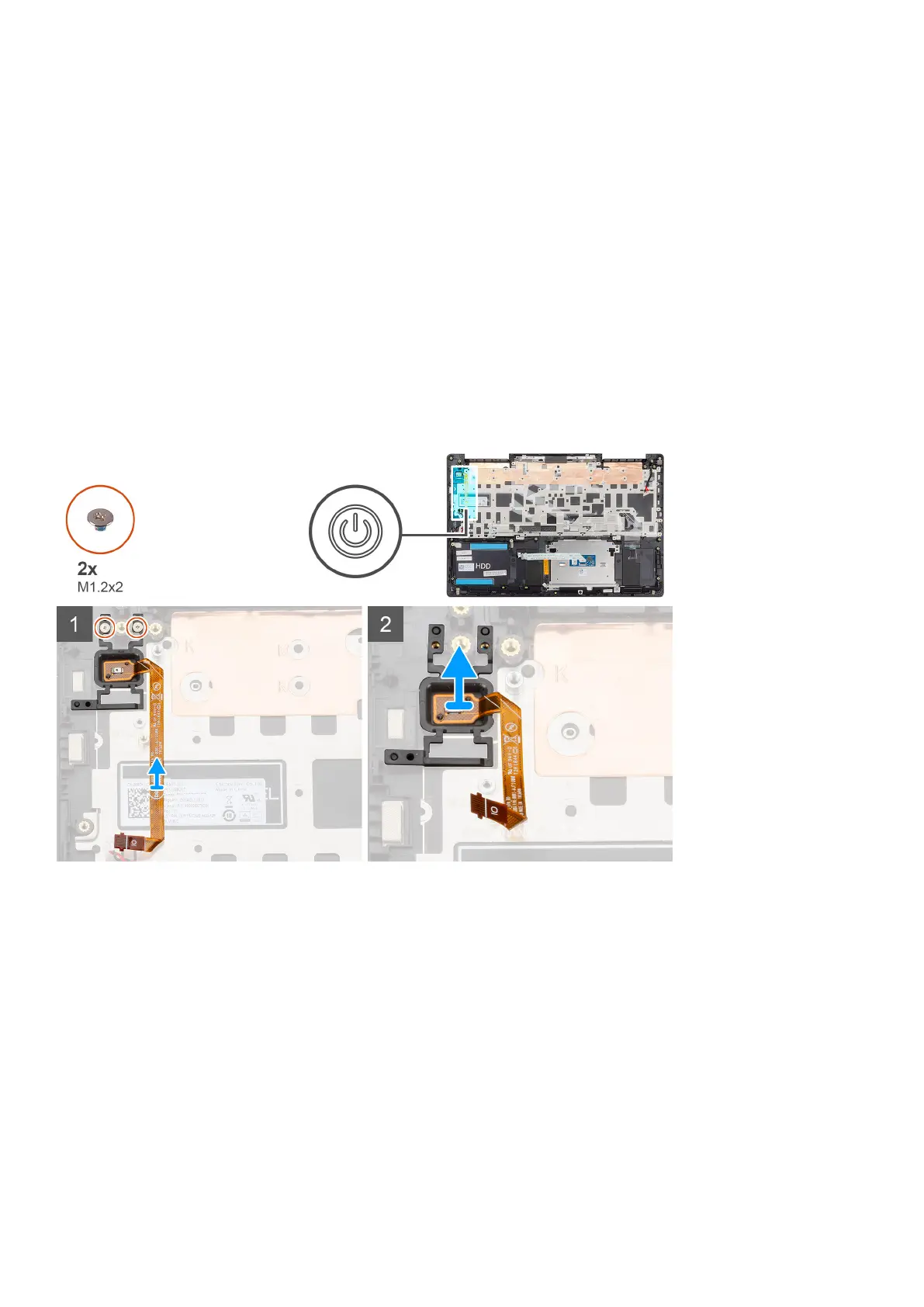

The figure indicates the location of the power button with optional fingerprint reader and provides a visual representation of the
removal procedure.
Steps
1. Remove the two screws (M1.2x2) that secure the power button with optional fingerprint reader to the palm-rest and
keyboard assembly.
2. Lift the power button with optional fingerprint-reader, along with the fingerprint reader cable, off the palm-rest and
keyboard assembly.
Installing the power button with optional fingerprint reader
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the power button with fingerprint reader and provides a visual representation of the
installation procedure.
Removing and installing components
43
