Steps

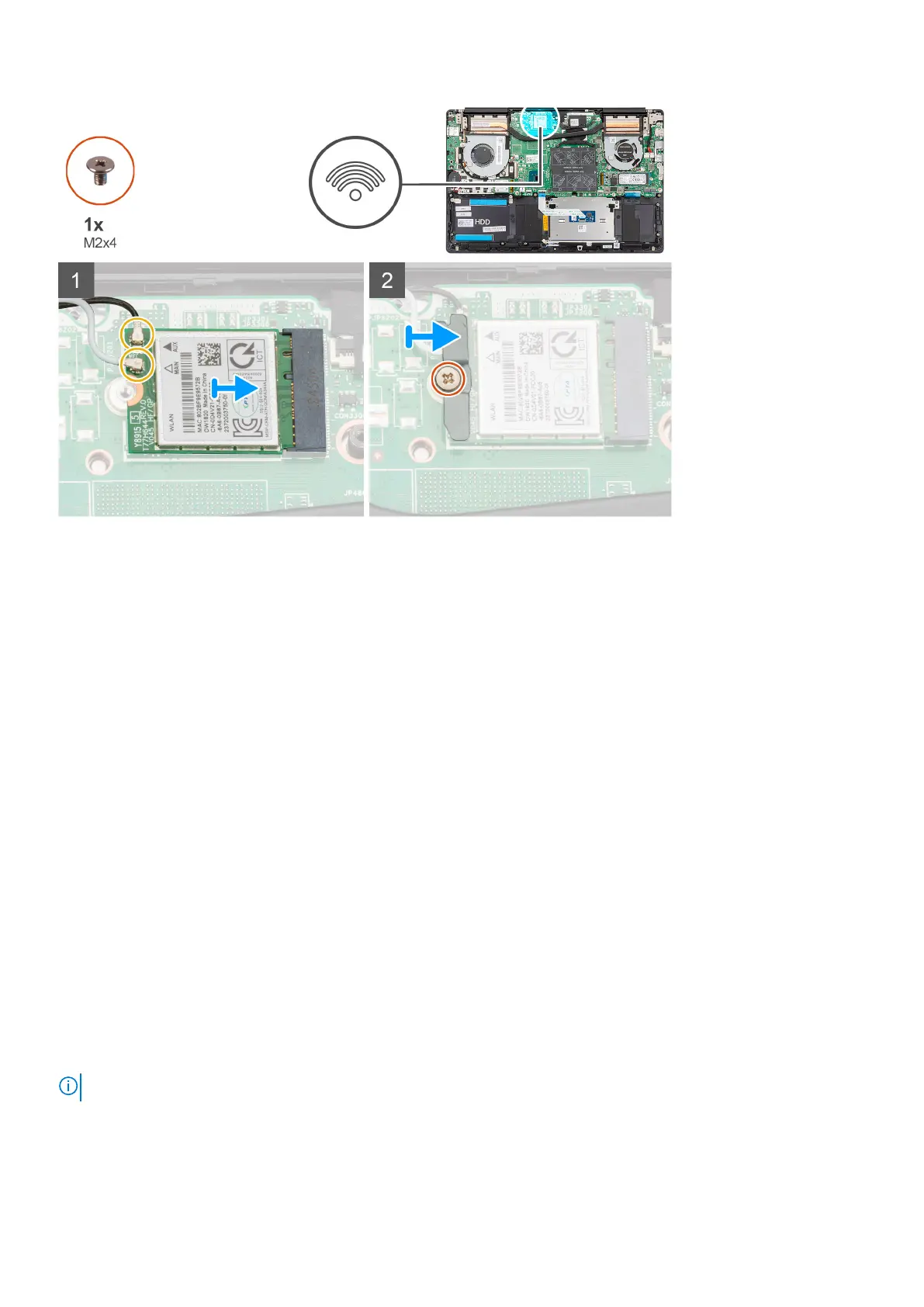

1. Align the notch on the WLAN card with the tab on the WLAN card slot and insert the WLAN card at an angle into the WLAN
card slot.
2. Connect the antenna cables to the WLAN card.
3. Align and place the WLAN card bracket on the WLAN card.
4. Replace the screw (M2x4) to secure the WLAN card bracket to the WLAN card.
Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Solid-state drive
Removing the M.2 2280 solid-state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Disconnect the battery cable.
About this task
The figure indicates the location of the solid-state drive and provides a visual representation of the removal procedure.
NOTE: The computer is shipped with solid-state drive shield only if the solid-state drive capacity is more than 512 GB.
22 Removing and installing components
