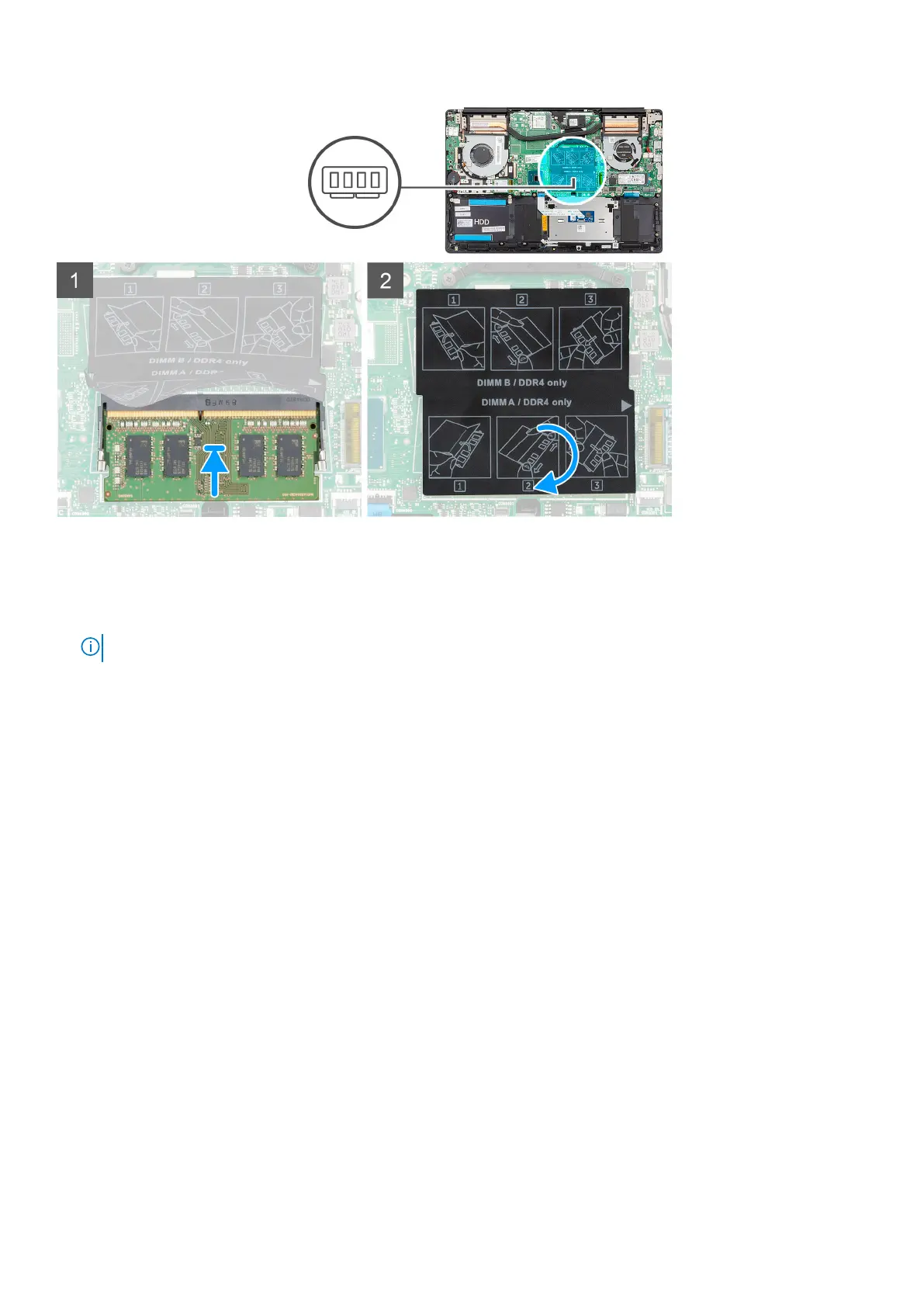

Steps
1. Lift the mylar and align the notch on the memory module with the tab on the memory-module slot.
2. Slide the memory module firmly into the slot at an angle.
3. Press the memory module down until it clicks into place.
NOTE: If you do not hear the click, remove the memory module and reinstall it.
Next steps
1. Connect the battery cable.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
WLAN card
Removing the WLAN card
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task
The figure indicates the location of the WLAN card and provides a visual representation of the removal procedure.
20
Removing and installing components
