Steps

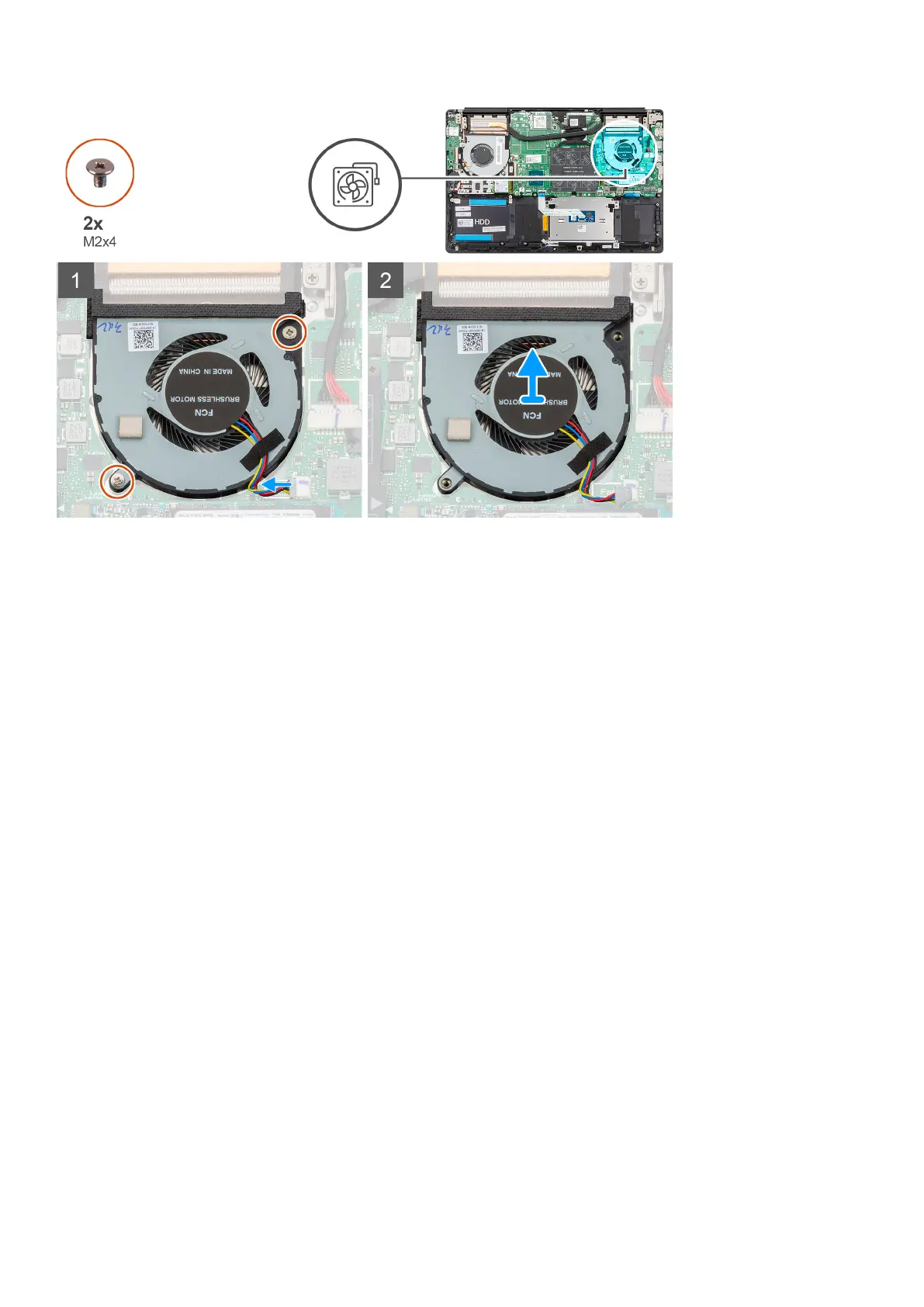

1. Remove the two (M2x4) screws that secure the CPU fan to the palm-rest and keyboard assembly.
2. Disconnect the CPU fan cable from the system board.
3. Slide and lift the CPU fan off the palm-rest and keyboard assembly.
Installing the CPU fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the CPU fan and provides a visual representation of the installation procedure.
Removing and installing components
33
