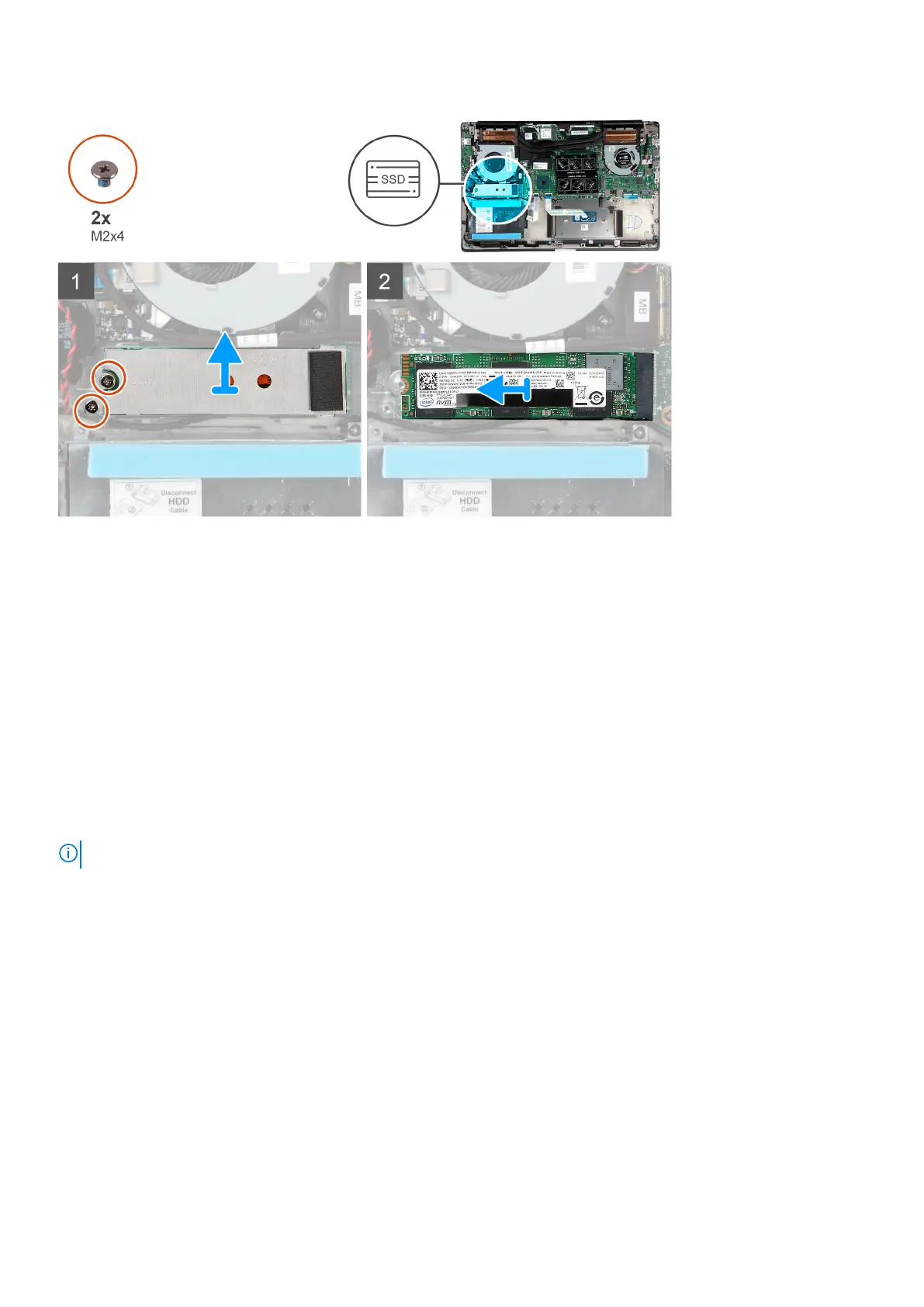

Steps
1. Remove the two screws (M2x4) that secure the solid-state drive module shield to the palm-rest and keyboard assembly.
2. Slide and remove the solid-state drive module shield from the solid-state drive slot.
3. Slide and remove the solid-state drive module from the solid-state drive slot.
Installing the M.2 2280 solid-state drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the solid-state drive bracket and provides a visual representation of the bracket alignment
procedure to accommodate the M.2 2280 solid-state drive.
NOTE: The computer is shipped with solid-state drive shield, only if the solid-state drive capacity is more than 512 GB.
Removing and installing components 23
