Steps
1. In sequential order (as indicated on the heat sink), loosen the seven captive screws that secure the heat sink to the system
board.
2. Lift and remove the heat sink off the system board.
Installing the heat sink—discrete
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

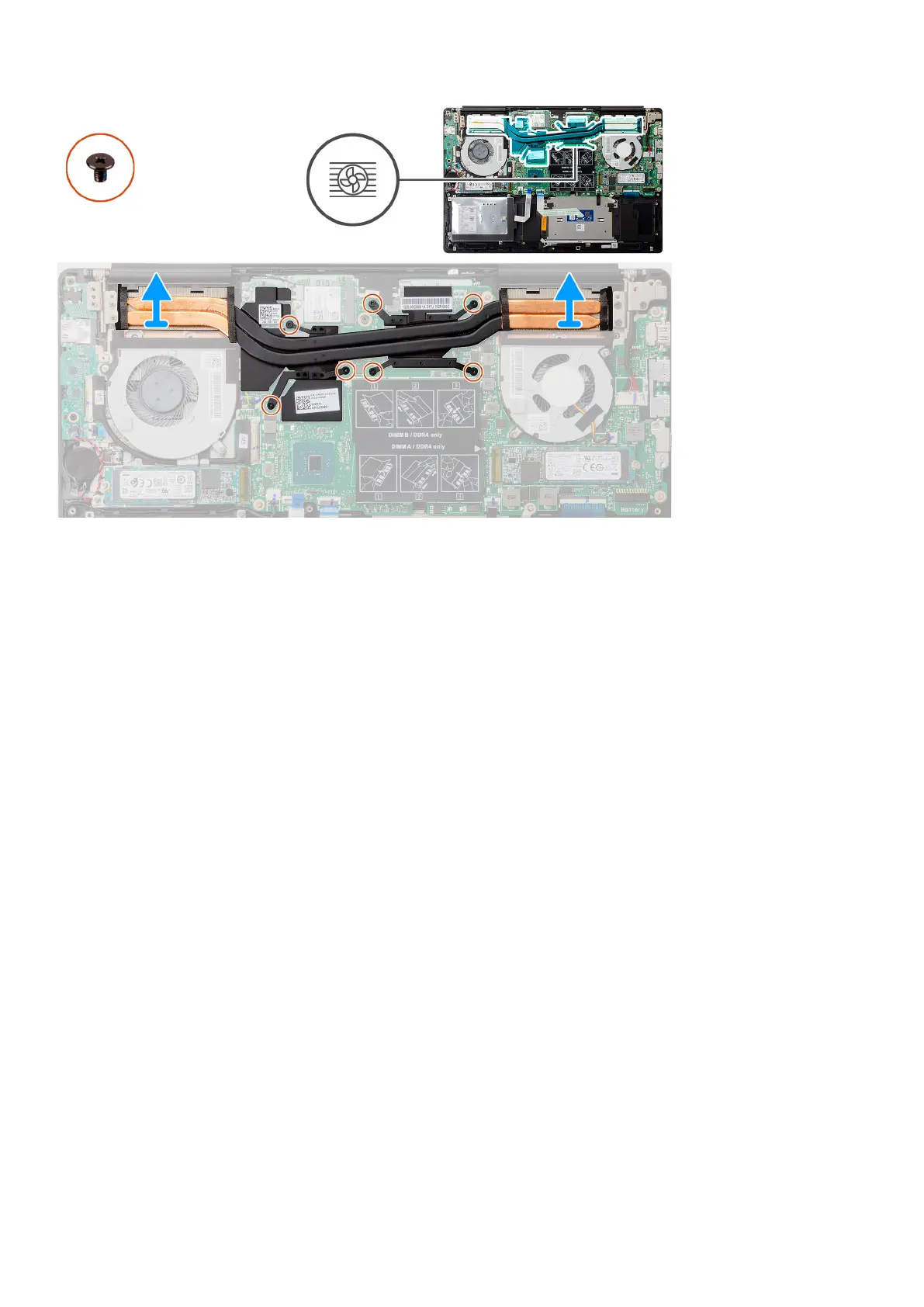

The figure indicates the location of the heat sink and provides a visual representation of the installation procedure.
Removing and installing components
37
