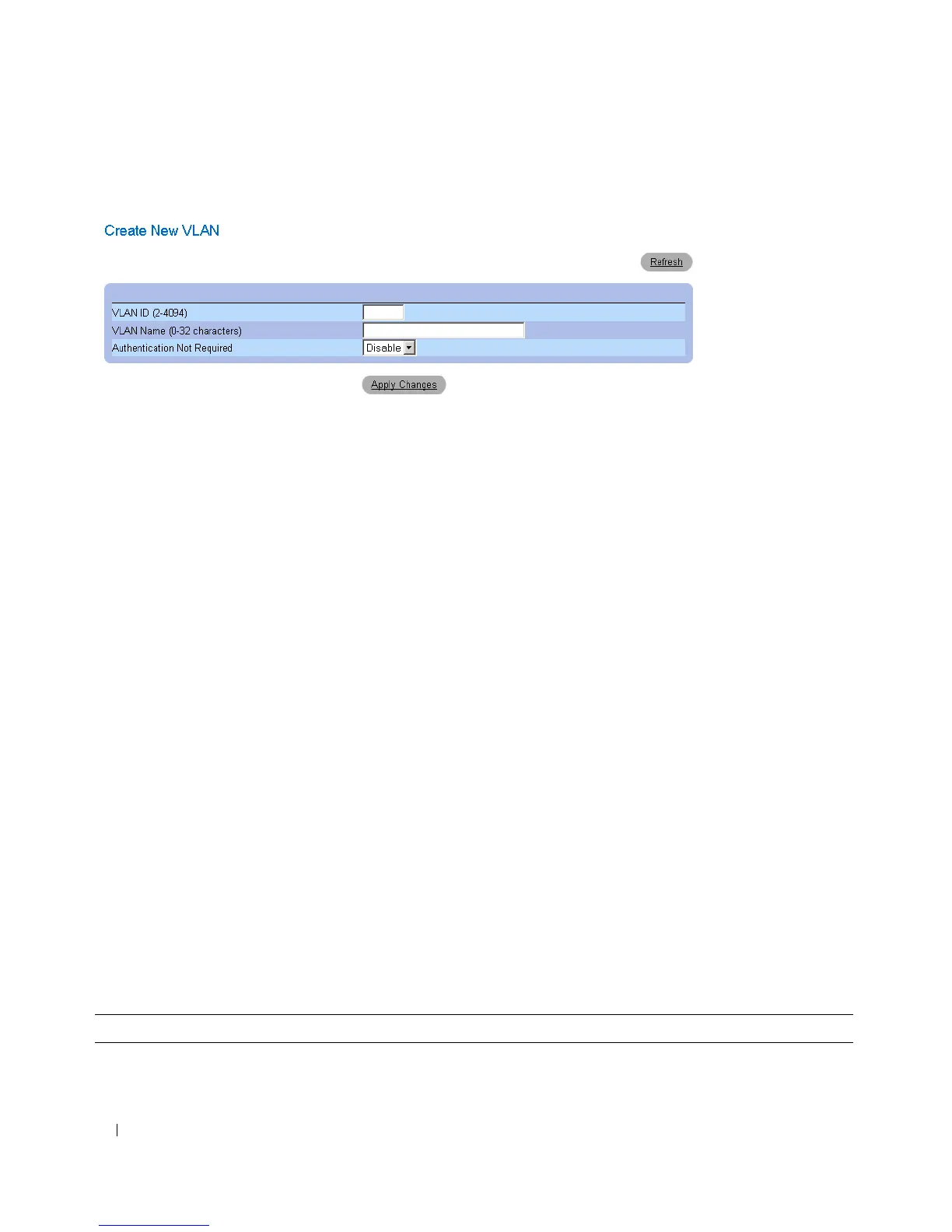

Figure 7-21. Create New VLAN
3 Enter the VLAN ID and name.
4 Click Apply Changes .
The new VLAN is added, and the device is updated.
Modifying VLAN Membership Groups
1 Open the VLAN Membership page.
2 Select a VLAN from the Show VLAN drop-down menu.
3 Modify the fields as desired.
4 Click Apply Changes .
The VLAN membership information is modified, and the device is updated.
Deleting VLAN Membership Groups
1 Open the VLAN Membership page.
2 Select a VLAN in the Show VLAN field.
3 Select the Remove VLAN check box.
4 Click Apply Changes .
The selected VLAN is deleted, and the device is updated.
VLAN Port Membership Table
The VLAN Port Membership Table contains a Port Table for assigning ports to VLANs. Ports are
assigned VLAN membership by toggling through the Port Control settings. Ports can have the following
values:
Table 7-1. VLAN Port Membership Table
Port Control Definition
T The interface is a member of a VLAN. All packets forwarded by the interface are tagged. The
packets contain VLAN information.
