148Dell PowerConnect 28xx Systems User Guide
Assigning QoS/CoS settings for an interface:
1 Open the Interface Settings page.
2 Select an interface in the Interface field.
3 Define the fields.
4 Click Apply Changes .
The CoS settings are assigned to the interface.
Displaying the QoS Interface Settings Table:
1 Open the Interface Settings page.
2 Click Show All .
The
QoS Interface Settings Table page opens:

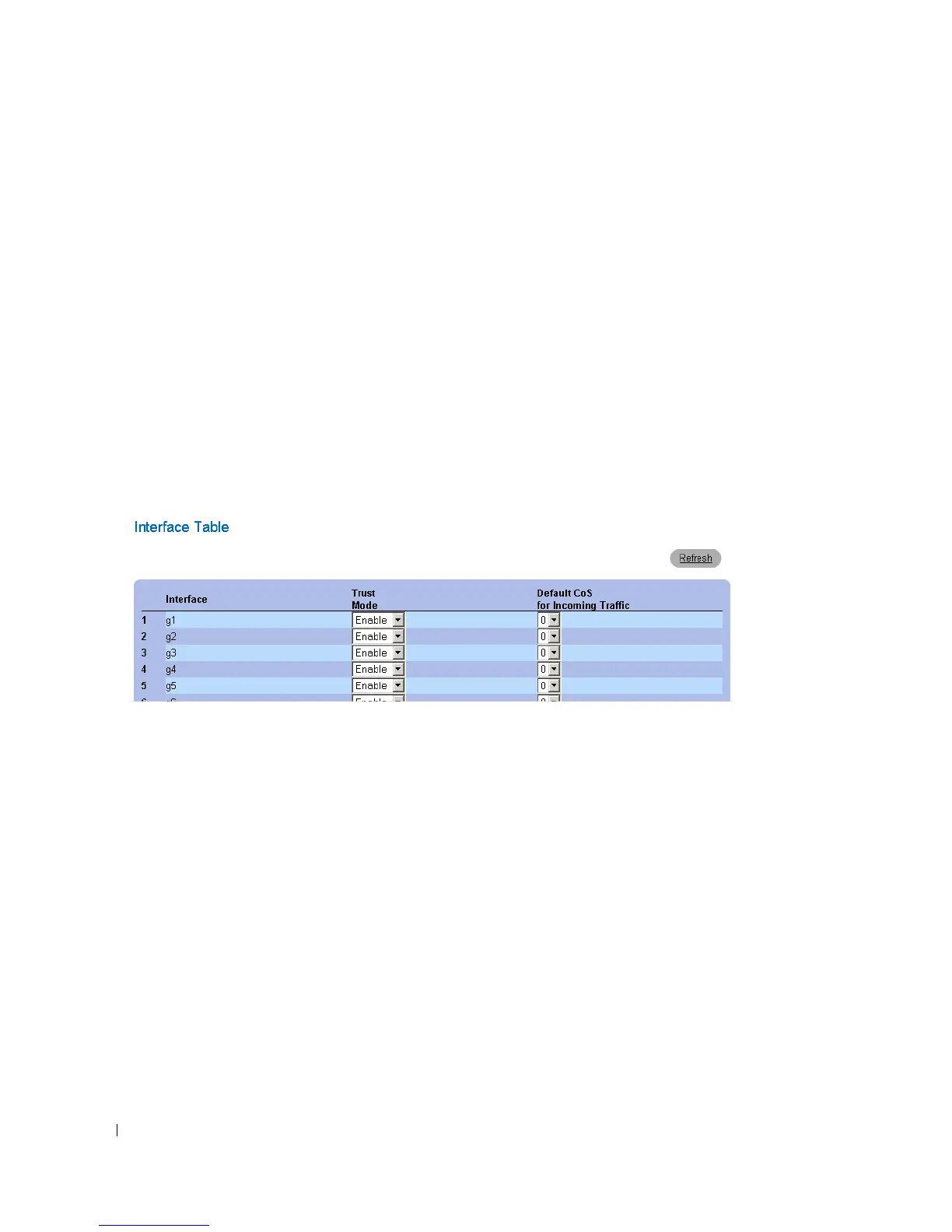

Figure 9-3. QoS Interface Settings Table
Defining Queue Settings
The QoS Queue Settings page contains fields for configuring the scheduling method by which the
queues are maintained. To open the QoS Queue Settings
page click Quality of ServiceCoS Global
Parameters Queue Settings in the tree view.
Figure 9-4. QoS Queue Settings
