64 Dell PowerConnect 28xx Systems User Guide
Running Cable Diagnostics
The Diagnostics section contains links to pages for performing virtual cable tests on copper cables and
optical transceivers. To open the Diagnostics page, click System  Diagnostics in the tree view.
• Viewing Optical Transceiver Diagnostics (Applicable only for 24, 48 port devices)
Viewing Copper Cable Diagnostics
The Integrated Cable Test for Copper Cables page contains fields for performing tests on copper cables.
Cable testing provides information about where errors occurred in the cable, the last time a cable test
was performed, and the type of cable error which occurred. The tests use Time Domain Reflectometry
(TDR) technology to test the quality and characteristics of a copper cable attached to a port. Cables up
to meters long can be tested. Cables are tested when the ports are in the down state, with the exception
of the Approximated Cable Length test. The cable length returned is an approximation in the ranges of
up to 50 meters, 50m-80m, 80m-110m, 110m-m, or more than m. The deviation may be up to 20 meters.
To open the Integrated Cable Test for Copper Cables page, click System Diagnostics Integrated
Cable Test in the tree view.

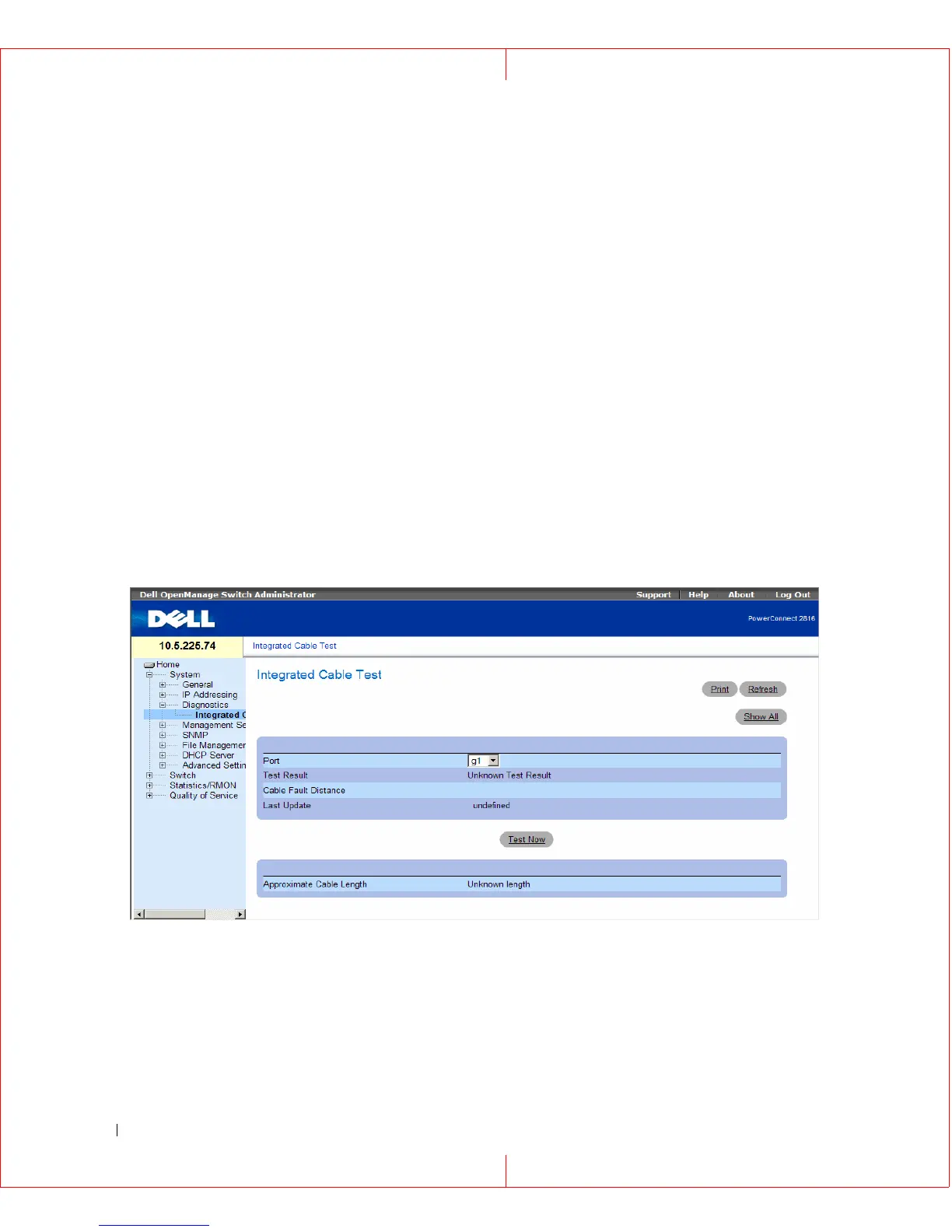

Figure 6-7. Integrated Cable Test for Copper Cables
• Port — The port to which the cable is connected.
•
Test Result — The cable test results. Possible values are:
–
No Cable —
–
Open Cable — cable is connected on only one side.
–
Short Cable — OK — The cable passed the test.
