130 Dell PowerConnect 28xx Systems User Guide

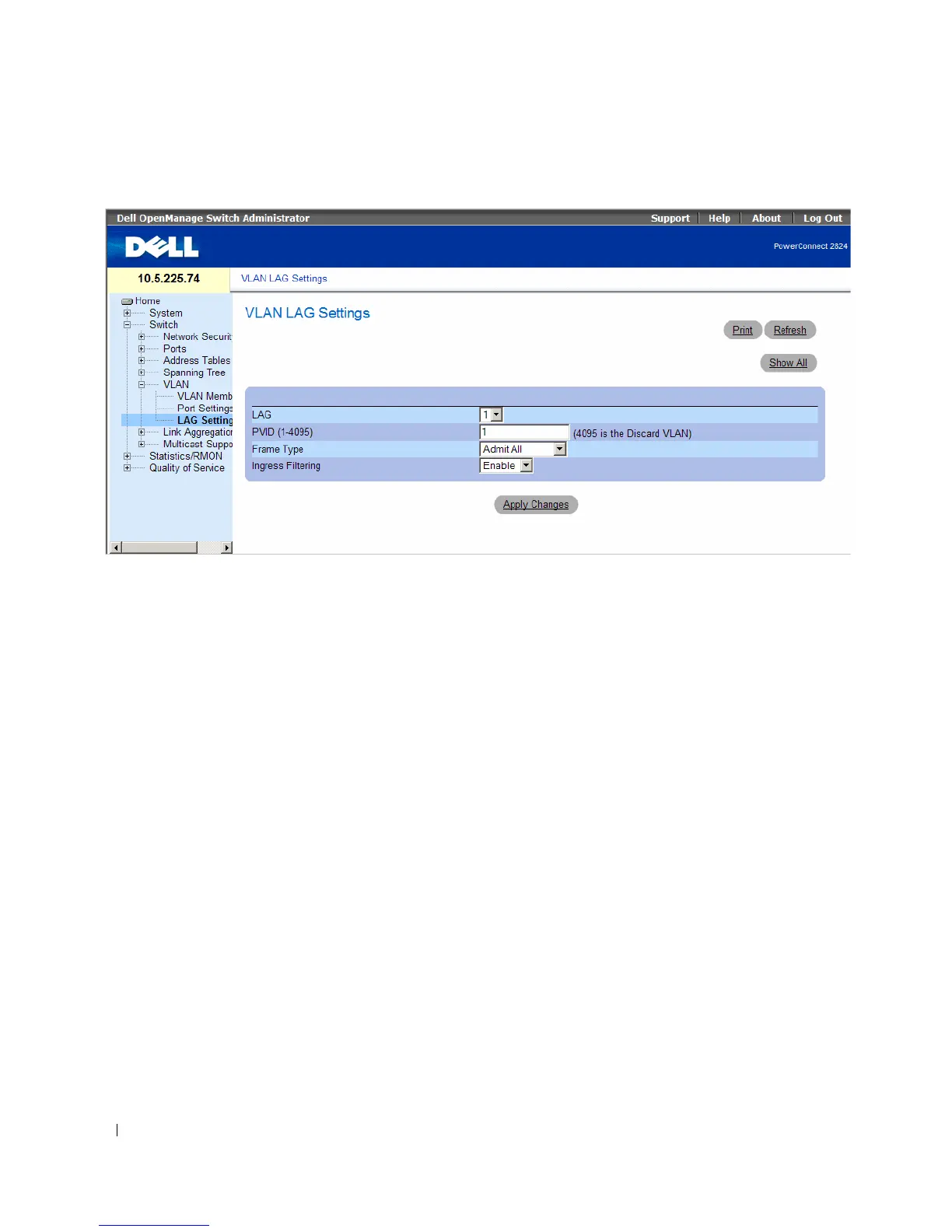

Figure 7-24. VLAN LAG Setting
• LAG — The LAG number included in the VLAN.
•
PVID — Assigns a VLAN ID to untagged packets. The possible field values are 1-4095. VLAN 4095 is
defined as per standard and industry practice, as the Discard VLAN. Packets classified to this VLAN are
dropped.
•
Frame Type — Packet type accepted by the LAG. Possible values are:
–
Admit Tag Only — Only tagged packets are accepted by the LAG.
–
Admit All — Tagged and untagged packets are both accepted by the LAG.
•
Ingress Filtering — Enables or disables Ingress filtering by the LAG. Ingress filtering discards packets
that are destined to VLANs of which the specific is not a member.
Assigning VLAN LAG Settings:
1 Open the VLAN LAG Setting page.
2 Select a LAG from the LAG drop-down menu and complete the fields on the page.
3 Click Apply Changes .
The VLAN LAG parameters are defined, and the device is updated.
Displaying the VLAN LAG Table
1 Open the VLAN LAG Setting page.
2 Click Show All .
The
VLAN LAG Table opens.
