Installing System Components 57

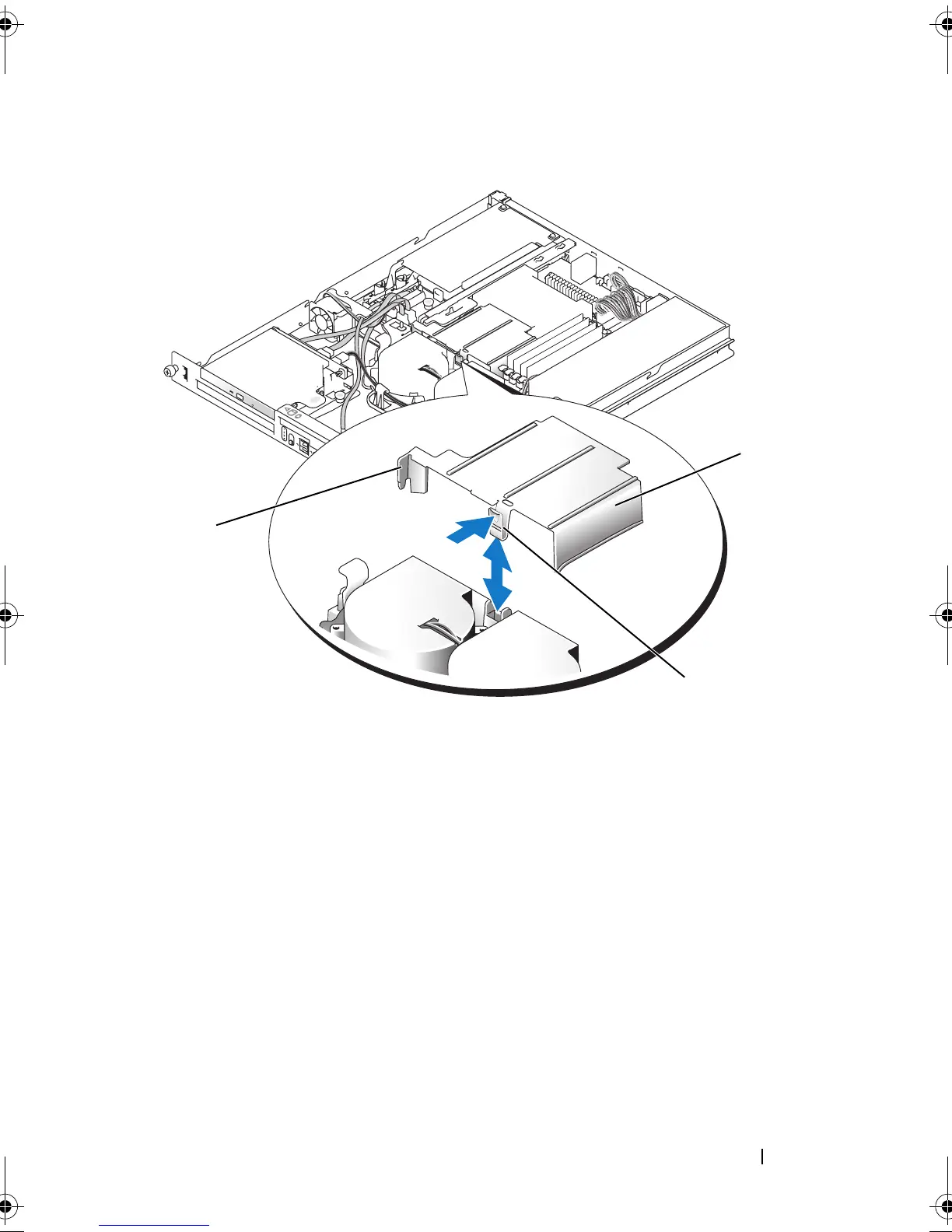

Figure 3-4. Installing and Removing the Cooling Shroud
Installing the Cooling Shroud
1
Insert the tab on the side of the cooling shroud and the release latch into
the fan assembly. See Figure 3-4.
2
Push the cooling shroud down until the release latch snaps into place,
securing the shroud to the fan assembly.
3
Close the system. See "Closing the System" on page 55.
1 tab 2 release latch 3 cooling shroud
