Installing System Components 61

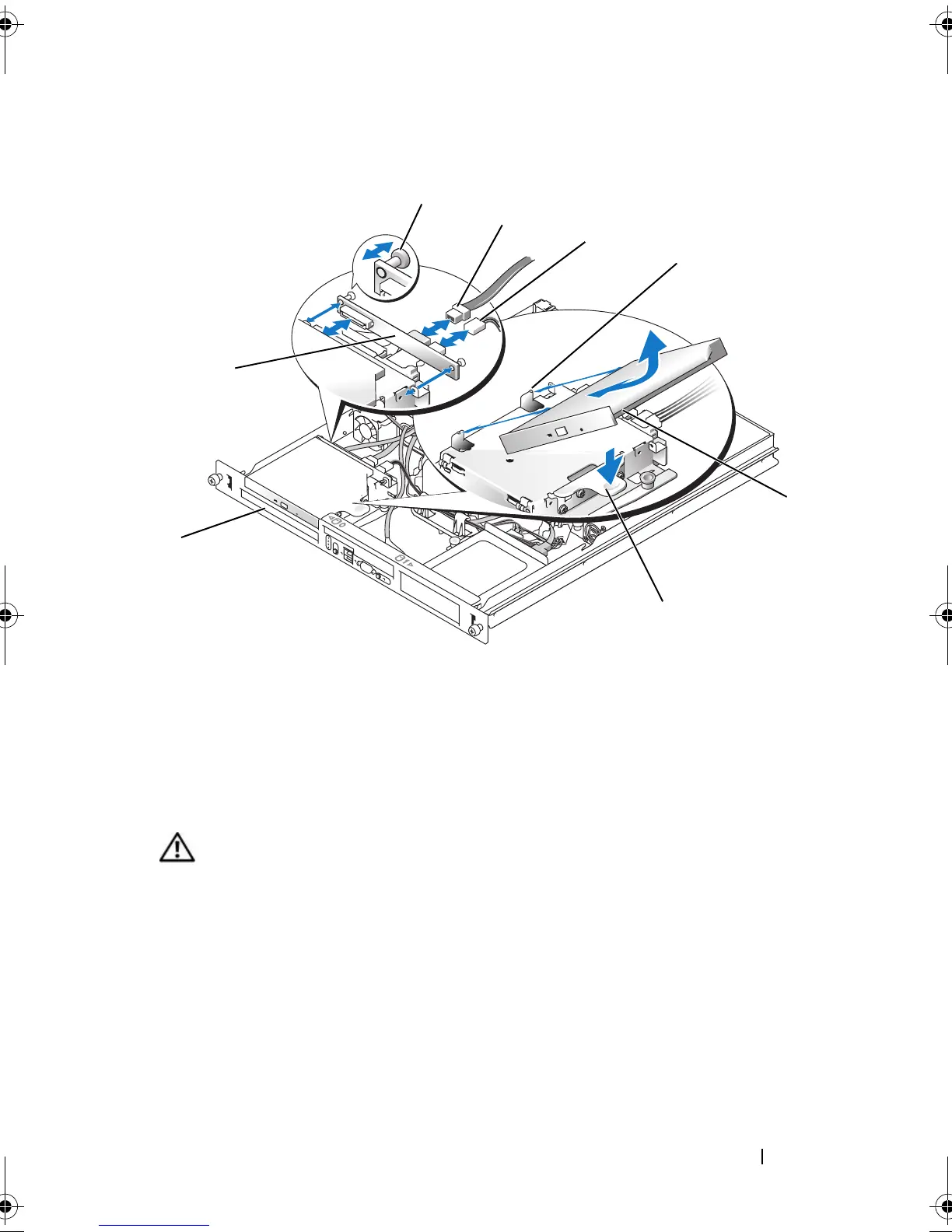

Figure 3-6. Removing and Installing the Optional Optical Drive
Installing the Optical Drive
CAUTION: Only trained service technicians are authorized to remove the system
cover and access any of the components inside the system. Before performing any
procedure, see your Product Information Guide for complete information about
safety precautions, working inside the computer and protecting against
electrostatic discharge.
1
Align the optical drive's mounting holes with the retaining pins on the
hard drive 0 bracket. See Figure 3-6.
2
Rotate the drive downward until it snaps into place.
1 interposer board 2 captive fasteners (2) 3 interface cable
4 power cable 5 retaining pins (4) 6 mounting holes (4)
7 bracket release lever 8 hard drive 0
5
7
2
8
1
3
6
4
book.book Page 61 Thursday, August 30, 2007 3:30 PM
