14 About Your System
Back-Panel Features and Indicators

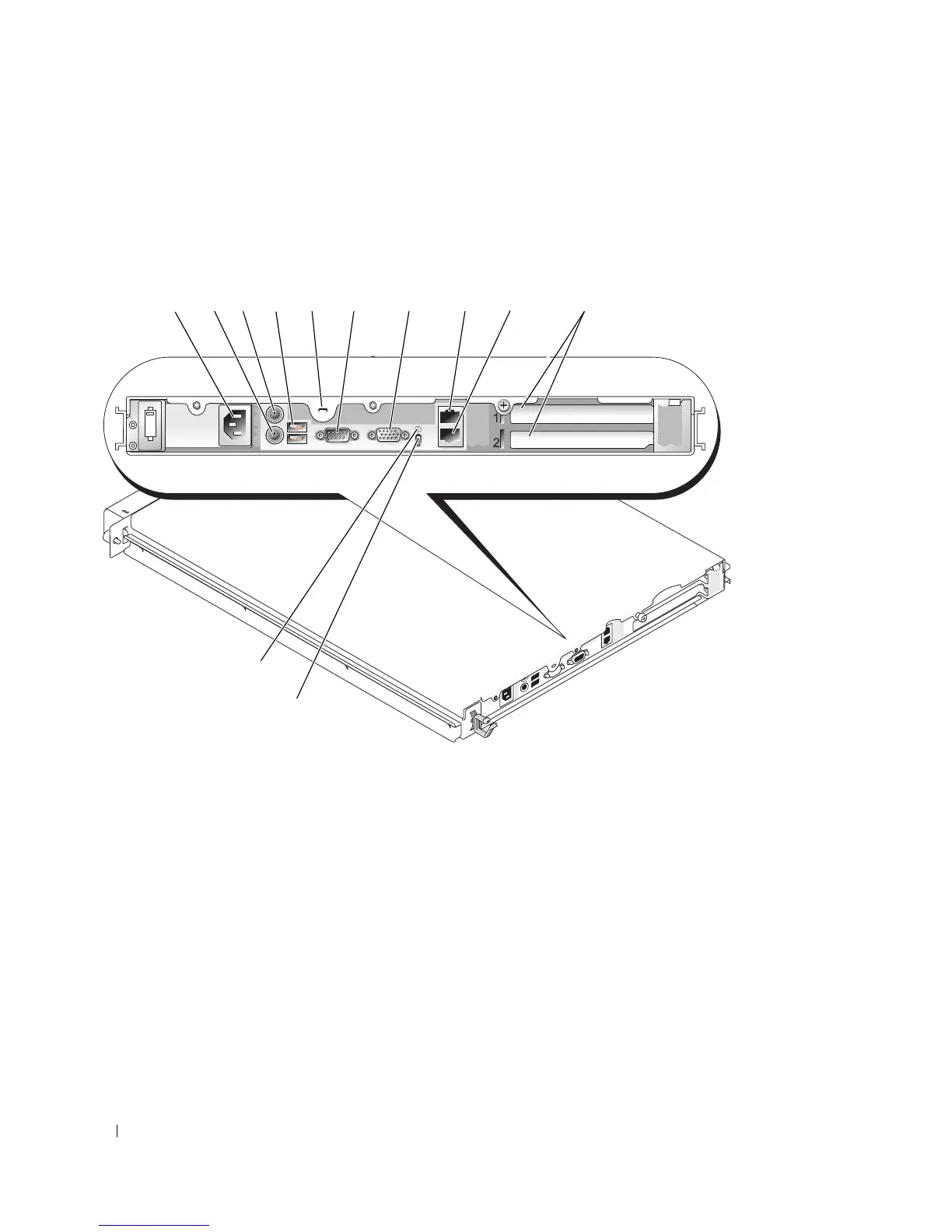

Figure 1-2 shows the controls, indicators, and connectors located on the system's back panel.
Figure 1-2. Back-Panel Features and Indicators
Connecting External Devices
When connecting external devices to your system, follow these guidelines:
• Most devices must be connected to a specific connector and device drivers must be installed before the
device operates properly. (Device drivers are normally included with your operating system software or
with the device itself.) See the documentation that accompanied the device for specific installation
and configuration instructions.
1 power supply connector 2 keyboard connector 3 mouse connector
4 USB connectors (2) 5 Kensington lock 6 serial connector
7 video connector 8 NIC1 connector 9 NIC2 connector
10 expansion slots (2) 11 system status indicator 12 system identification button
324 67 101
11
12
895

Dell PowerEdge 860 Specifications

General

Chipset	Intel 3000
Form Factor	1U Rack
Processor Socket	LGA 775
Number of Processors Supported	1
Memory Slots	4
Processor	Intel Xeon 3000 series
Memory	Up to 8GB
RAID Support	PERC 5/i
Network	Embedded Broadcom Gigabit Ethernet
Memory Type	DDR2
Hard Drive Interface	SATA
Maximum Internal Storage	Up to 2TB
Power Supply	305W
Operating System Support	Red Hat Linux
