Dell PowerEdge 860 User Manual

44 Installing System Components

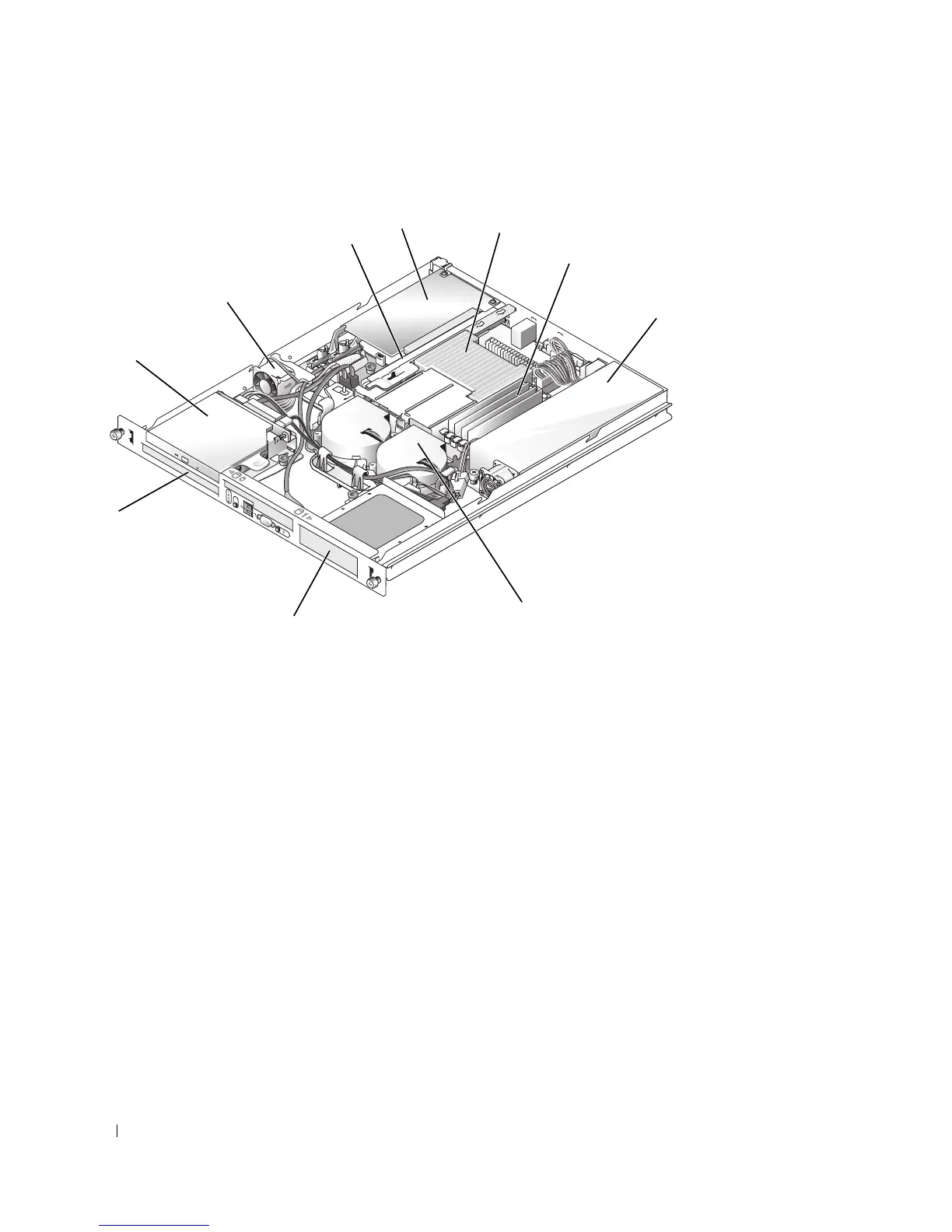

Figure 3-1. Inside the System
The system board holds the system's control circuitry and other electronic components. The processor
and memory are installed directly on the system board. Using a riser card, the system can accommodate
two expansion cards. The peripheral bays provide space for up to two hard drives and an optional optical
drive. Power is supplied to the system board and drives through one nonredundant power supply.
Opening and Closing the System
The system is enclosed by an optional bezel and cover. To upgrade or troubleshoot the system, remove
the bezel and cover.
1 optical drive (optional) 2 PCI fan 3 riser card
4 PCI expansion card (optional) 5 processor and heat sink 6 memory modules (4)
7 power supply 8 processor fan module 9 hard drive 1
10 hard drive 0
10
1
5
7
4
8
3
9
6
2

Dell PowerEdge 860 Specifications

General

Chipset	Intel 3000
Form Factor	1U Rack
Processor Socket	LGA 775
Number of Processors Supported	1
Memory Slots	4
Processor	Intel Xeon 3000 series
Memory	Up to 8GB
RAID Support	PERC 5/i
Network	Embedded Broadcom Gigabit Ethernet
Memory Type	DDR2
Hard Drive Interface	SATA
Maximum Internal Storage	Up to 2TB
Power Supply	305W
Operating System Support	Red Hat Linux
