Dell PowerEdge 860 User Manual

98 Jumpers and Connectors
System Board Connectors

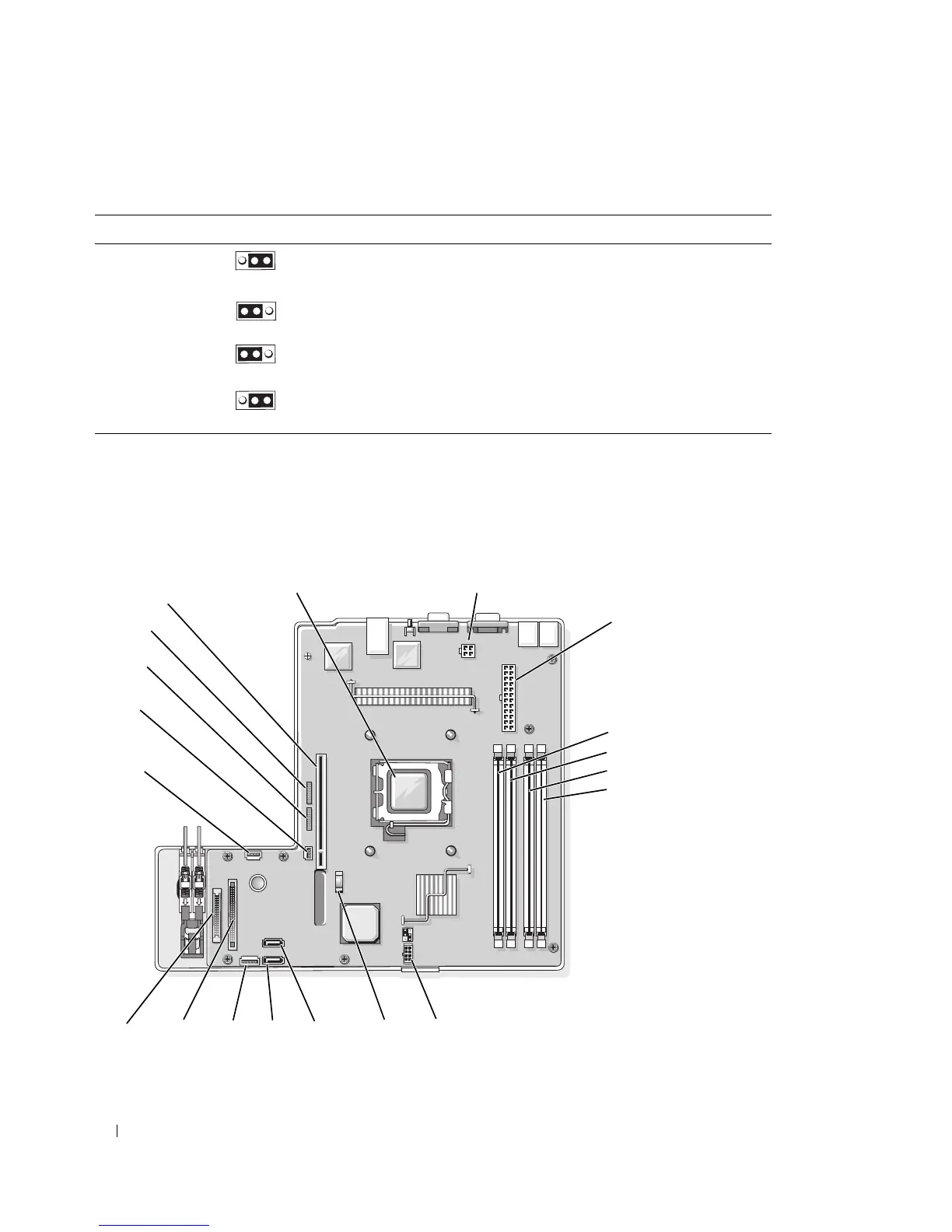

See Figure 6-2 and Table 6-2 for the location and description of the system board connectors.
Figure 6-2. System Board Connectors
Table 6-1. System Board Jumper Settings
Jumper Setting Description
NVRAM_CLR (default) The configuration settings in NVRAM are retained at system
boot.
The configuration settings in NVRAM are cleared at next
system boot.
PWRD_EN (default) The password feature is enabled.
The password feature is disabled.
2
1
4
5
6
7
9 8
17
3
14
13
12 11
15
10
16
18
19
